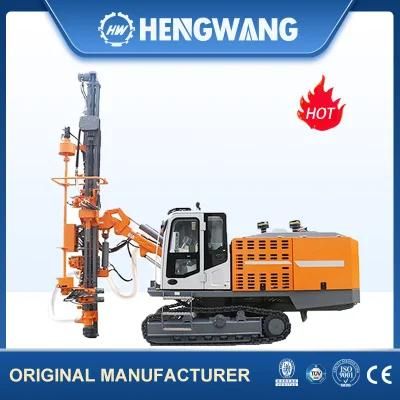

Down The Hole Hammer Crawler Mounted DTH Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：Yes
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：<100mm

Base Info

  • Model NO.：40m
  • Drill Hole Depth：<100m
  • Bit Type：Hammer Bit
  • Drilling Way：Impactor
  • Name：Down The Hole Hammer Crawler Mounted DTH Drilling
  • Transport Package：Standard Package
  • Specification：40M
  • Trademark：Hengwang
  • Origin：Shandong
  • HS Code：8430419000
  • Production Capacity：1000pieces,Month

Description

Main technical specifications

Power

Yuchai YC6J220 162 kW

Hole Depth

20m

Drill Pile Sizes

60 mmX3000 mm

Hole Dia

80-115mm

DTH Hammer

3.5"

Rotation Torque (Max.)

1650N.m

Rotation Speed

0-110 rpm

Working Pressure

14.5 bar

F.A.D

12 m3/min

Tramming Speed (Max.)

2/3 km/h Dual Speed

Gradient

30°

Track Frame Oscilation

±10°

Total Weight

6,800 kg

Transportation Dimensions

6,000X2,800X2,750 mm

Dry Dust Collector

Standard

Dual Speed Walking Motor

Standard
