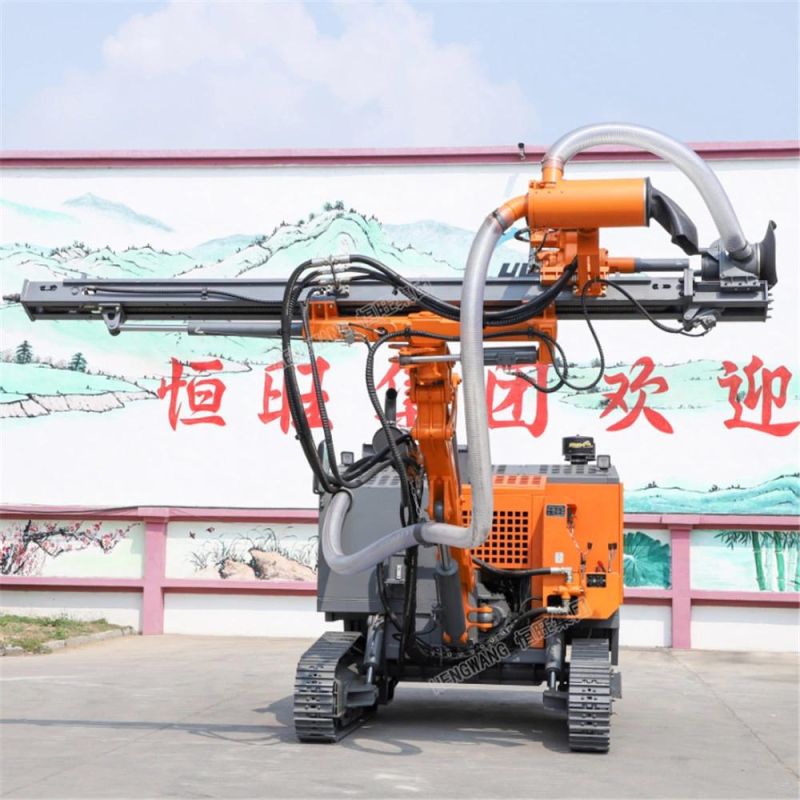

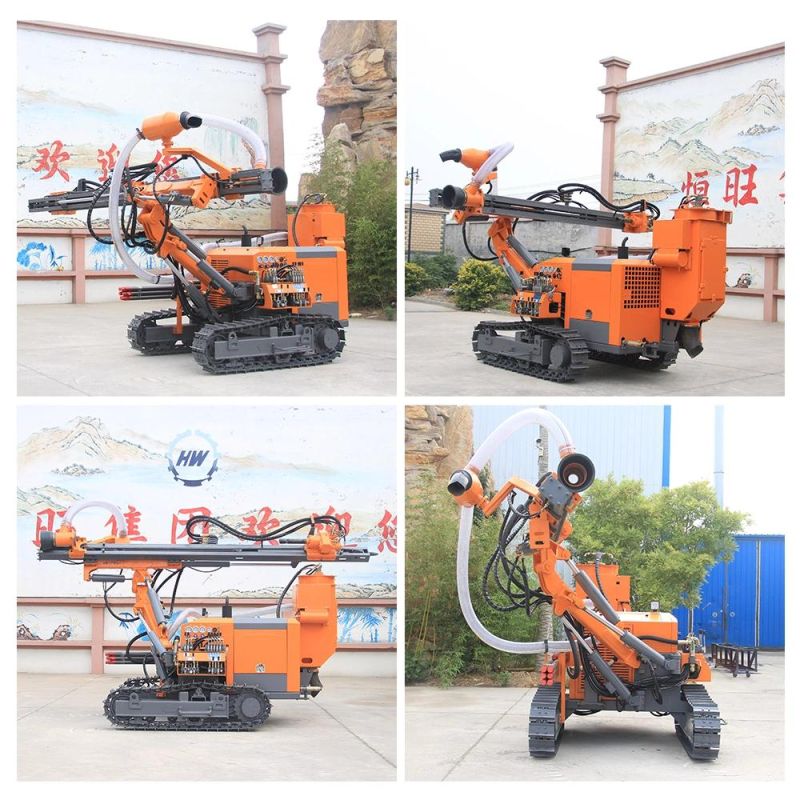

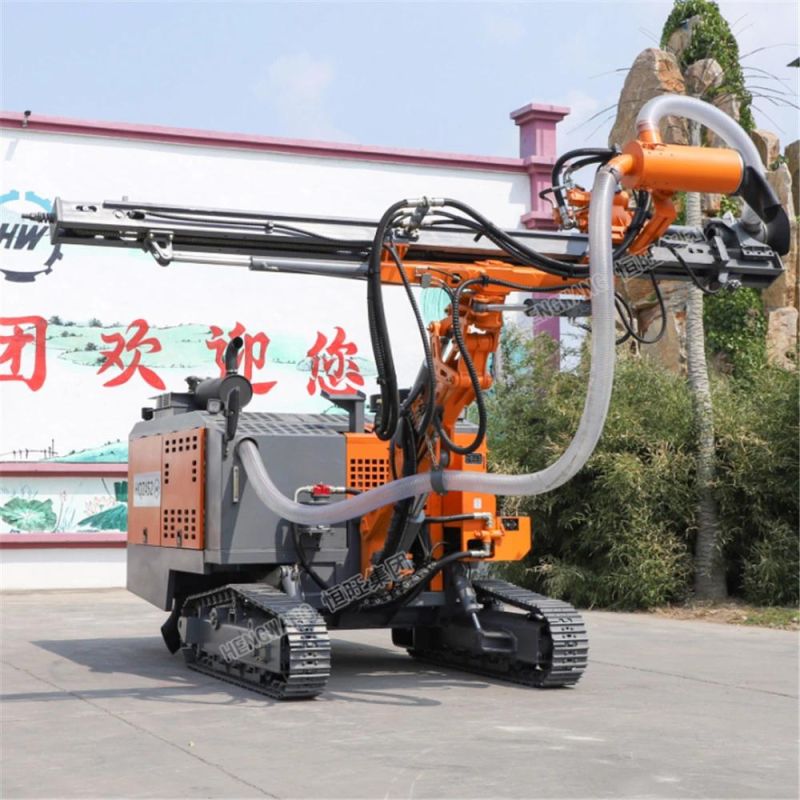

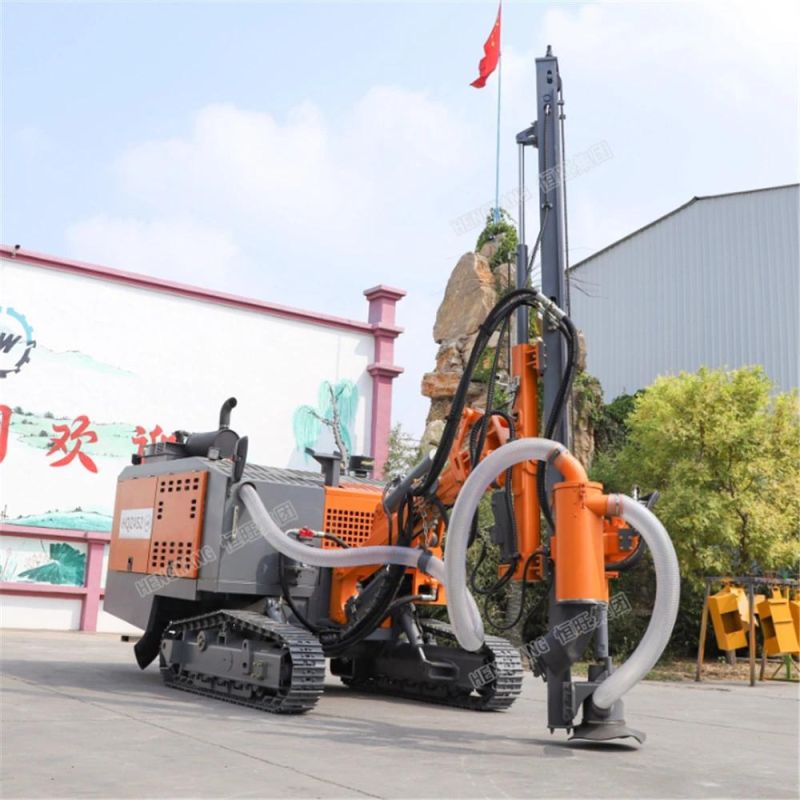

Hw420s Crawler Chassis Surface Rock Blast Hole DTH Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：12months
- Certification：CE, RoHS
- Condition：New
- Motor：Diesel
- Drill Hole Diameter：<100mm
Base Info
- Model NO.：HW420S
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
- Drilling Way：Compound
- Name：Pneumatic Drilling Rig
- Diesel Engine：Yuchai 59 Kw
- Hole Depth：60 M
- Drill Pipe Sizes：76X3,000 mm
- Hole Dia：110 - 203 mm
- DTH Hammer：4",5", 6"
- Rotation Torque ( Max.)：4,600 N.M
- Rotation Speed：60 -160 Rpm
- Feed Speed：26 M,Min
- Pull up Force ( Max.)：80 Kn
- Tramming Speed ( Max.)：2.5 Km,H
- Total Weight：5,000 Kg
- Transportation Dimensions：5,800 X 2,250 X 2,250 mm
- Transport Package：20gp
- Specification：5500*1720*2650mm
- Trademark：HW
- Origin：Shandong
- HS Code：8428909090
- Production Capacity：1000PCS ,Month
Description
Main Specifications
HW420S
Diesel Engine
Yuchai 59 kW
Electric Motor
45 kW
Hole Depth
60 m
Drill Pipe Sizes
76X3,000 mm
Hole Dia
110 - 203 mm
DTH Hammer
4"/5"/ 6"
Rotation Torque ( Max.)
4,600 N.m
Rotation Speed
60 -160 rpm
Feed Force ( Max.)
35 kN
Feed Speed
26 m/min
Feed Type
Chain & Cylinder
Pull Up Force ( Max.)
80 kN
Tramming Speed ( Max.)
2.5 km/h
Gradient
25°
Total Weight
5,000 kg
Transportation Dimensions
5,800 X 2,250 X 2,250 mm
