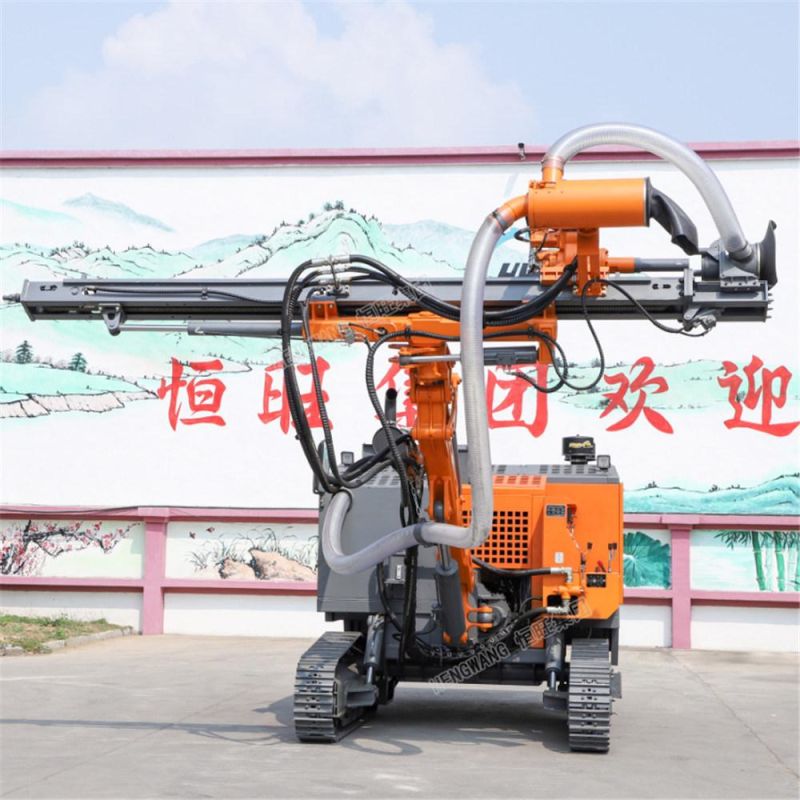

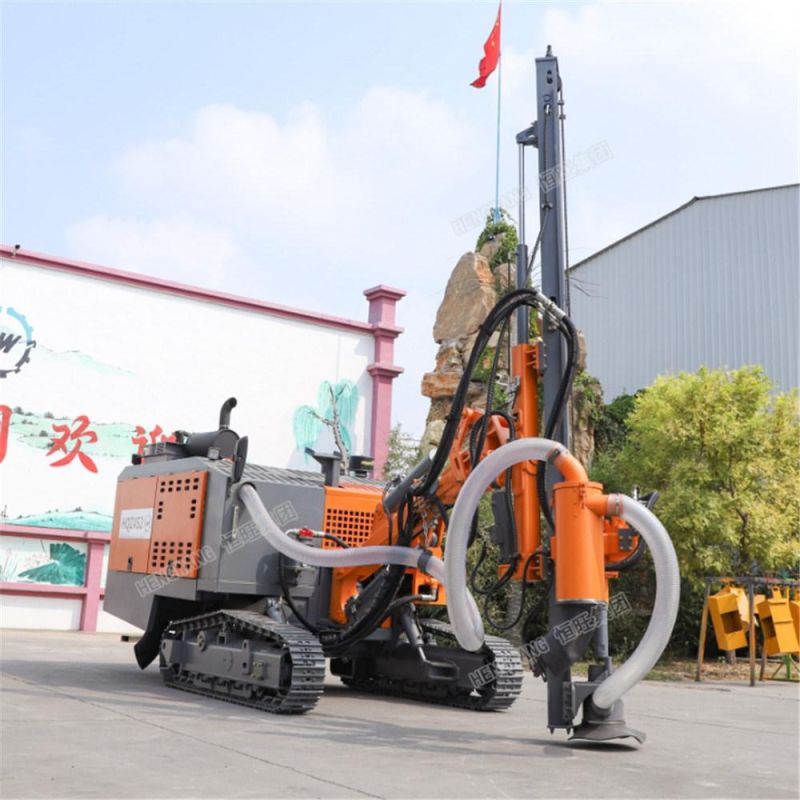

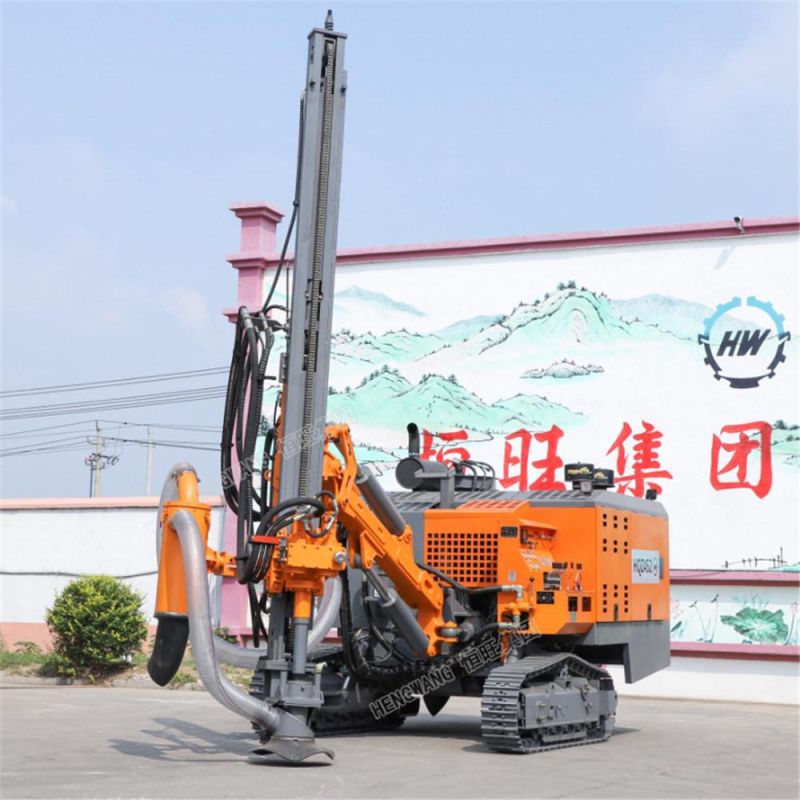

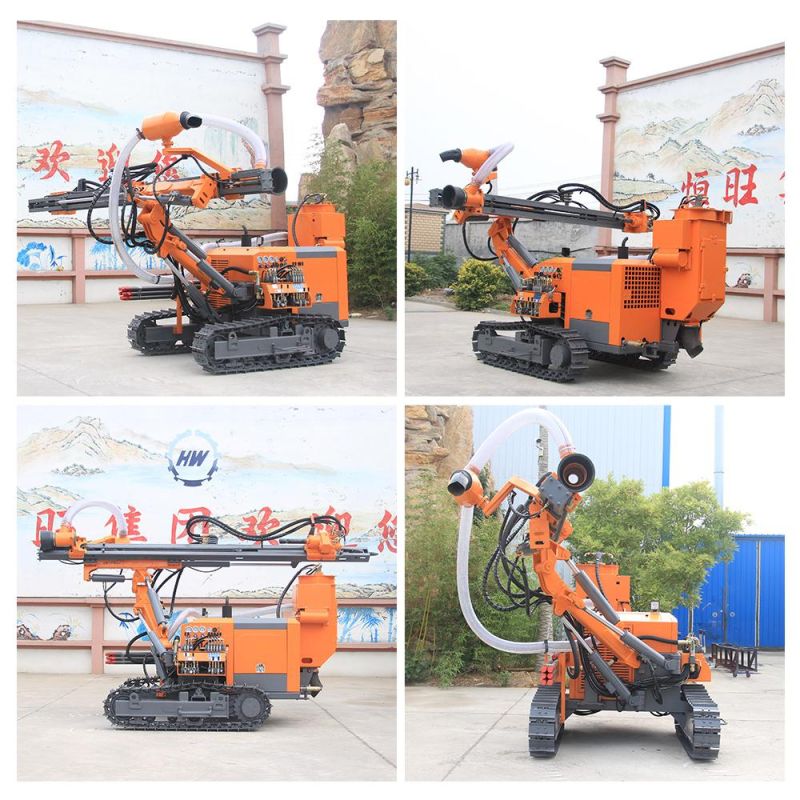

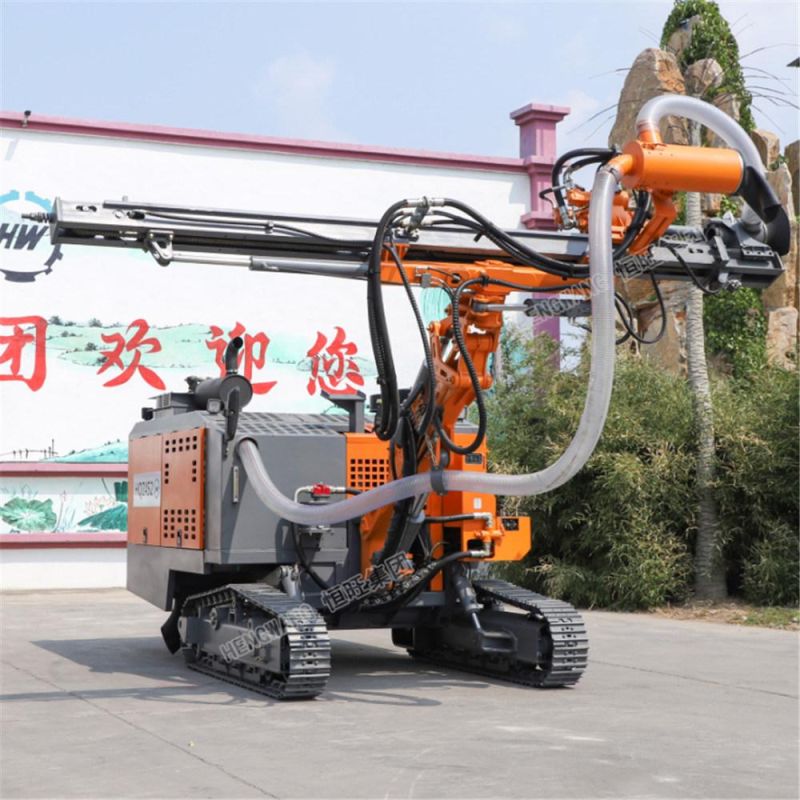

Hw452 DTH Surface Underground Hard Rock Blasting High Air Pressure DTH Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：12months
- Certification：CE, RoHS
- Condition：New
- Motor：Diesel
- Drill Hole Diameter：<100mm
Base Info
- Model NO.：HW452
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
- Drilling Way：Compound
- Name：DTH Drilling Rig
- Engine：Yuchai Yc6a260L191 Kw
- Hole Depth：20 M
- Drill Pipe Sizes：76 X 3,000 mm
- Hole Dia：90-138 mm
- DTH Hammer：4"
- Rotation Torque ( Max.)：2,500 N.M
- Rotation Speed：0-100 Rpm
- Working Pressure：17 Bar
- Tramming Speed ( Max.)：3 Km,H
- Total Weight：9,310 Kg
- Transportation Dimensions：7,550X2,500X3,060 mm
- Transport Package：20gp
- Specification：5500*1720*2650mm
- Trademark：HW
- Origin：Shandong
- HS Code：8428909090
- Production Capacity：1000PCS ,Month
Description
Model
HW-452
HW-452H
Engine
Yuchai YC6A260L191 kW
Yuchai YCA7240-T300 176 kW
Hole Depth
20 m
24 m
Drill Pipe Sizes
76 X 3,000 mm
76 X 3,000 mm Optional: 68X 3,000 mm
Hole Dia
90-138 mm
90-130 mm
DTH Hammer
4"
4" Optional: 3.5"
Rotation Torque ( Max.)
2,500 N.m
1,900 N.m Optional: 1,540 N.m
Rotation Speed
0-100 rpm
0-92 rpm Optional: 0-115 rpm
Working Pressure
17 bar
18 bar
F.A.D
16 m3/min
15 m3/min
Tramming Speed ( Max.)
3 km/h (High Speed)
2 km/h (Low Speed)
3.3 km/h (High Speed)
1.5 km/h (Low Speed)
Gradient
25°
25°
Track Frame Oscilation
±10°
±10°
Total Weight
9,310 kg
10,000kg
Transportation Dimensions
7,550X2,500X3,060 mm
9,000*2,360*3,000mm
