Separated DTH Surface Drill Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.

After-sales Service：Yes
Warranty：Yes
Certification：CE, ISO 9001:2008
Condition：New

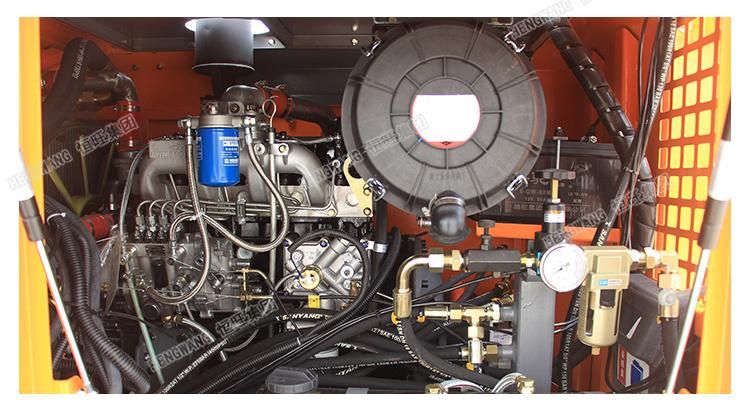

Motor：Yuchai Yc4dk80
Drill Hole Diameter：90-110mm

Base Info

Model NO.：HW-416
Drill Hole Depth：Max25m
Bit Type：Diamond Bit
Drilling Way：Impactor
Model：Hw416
Drill Pipe Sizes：60*3000 mm
Hole Range：90-127 mm
Rotation Torque (Max.)：1,950 N.M
Rotation Speed：70-150 Rpm
Feed Force：15 Kn
Pull up Force：25 Kn

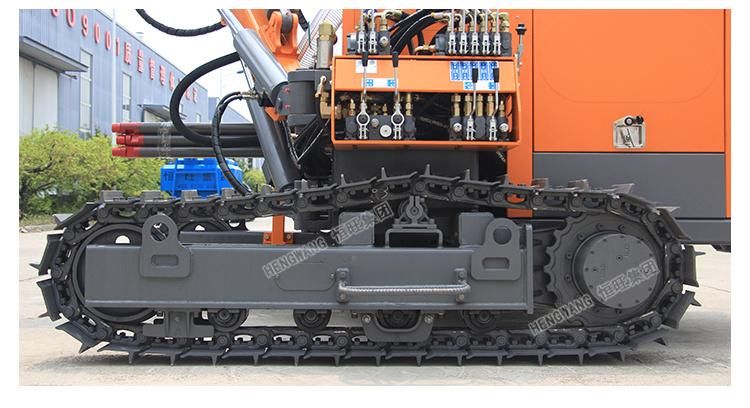

Feed Type：Chain , Cylinder
Tramming Speed (Max.)：2.5 Km,H
Gradient：25°
Total Weight：4,500 Kg
Transportation Dimensions：4,900X2,000X2,200 mm
Specification：4, 900X2, 000X2, 200 mm
Trademark：Hengwang
Origin：Shandong
Production Capacity：100PCS ,Month

Description

Transportation Dimensions4,900X2,000X2,200 mm
