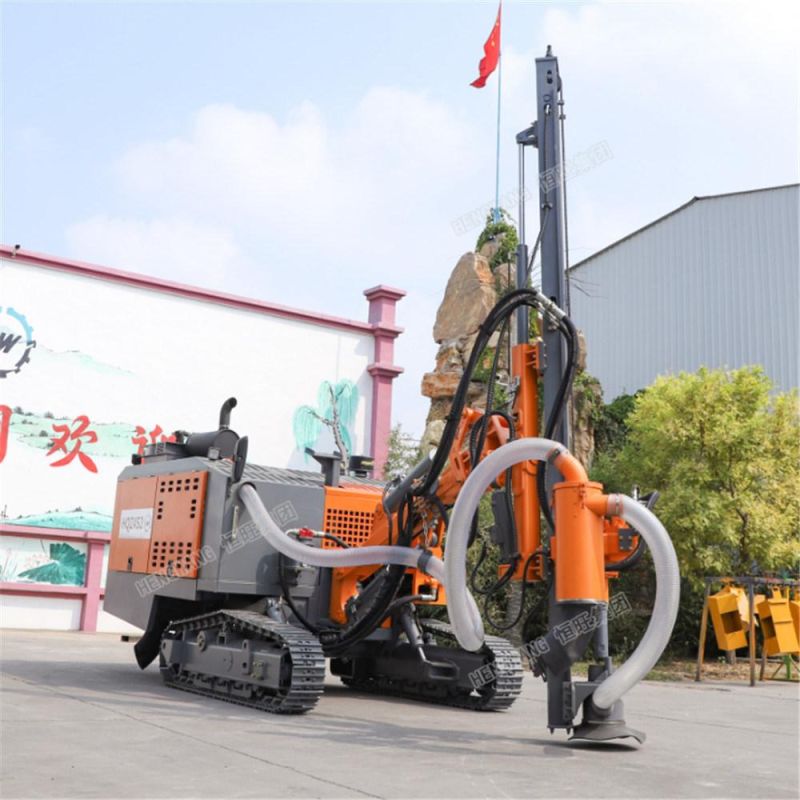

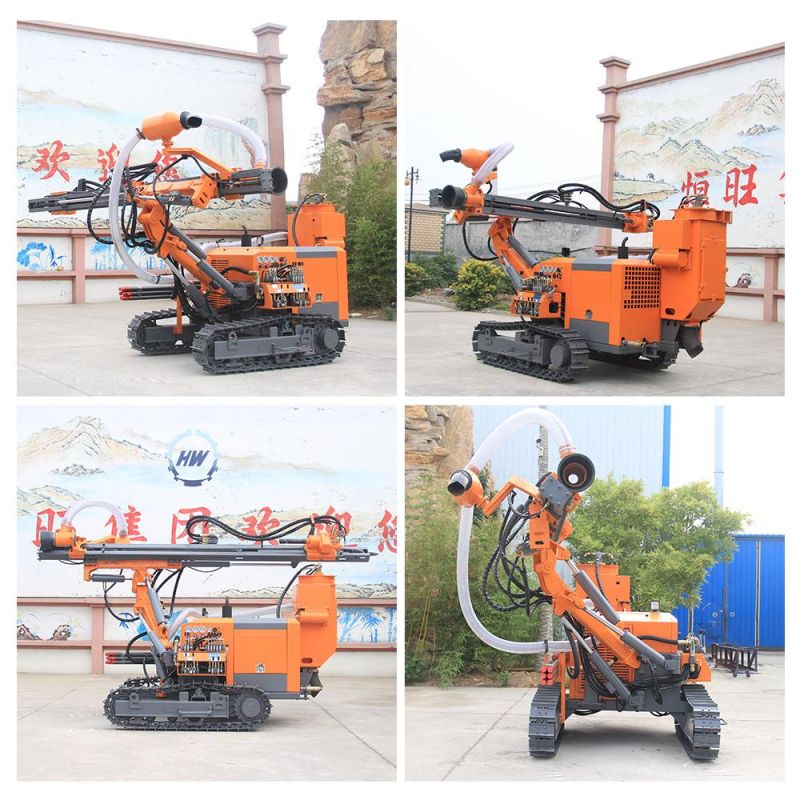

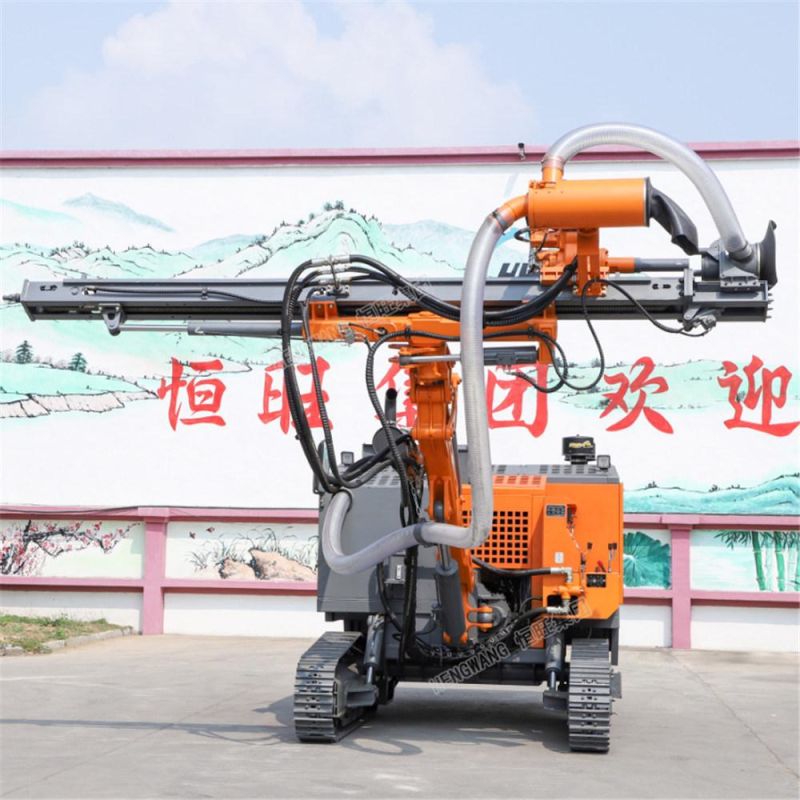

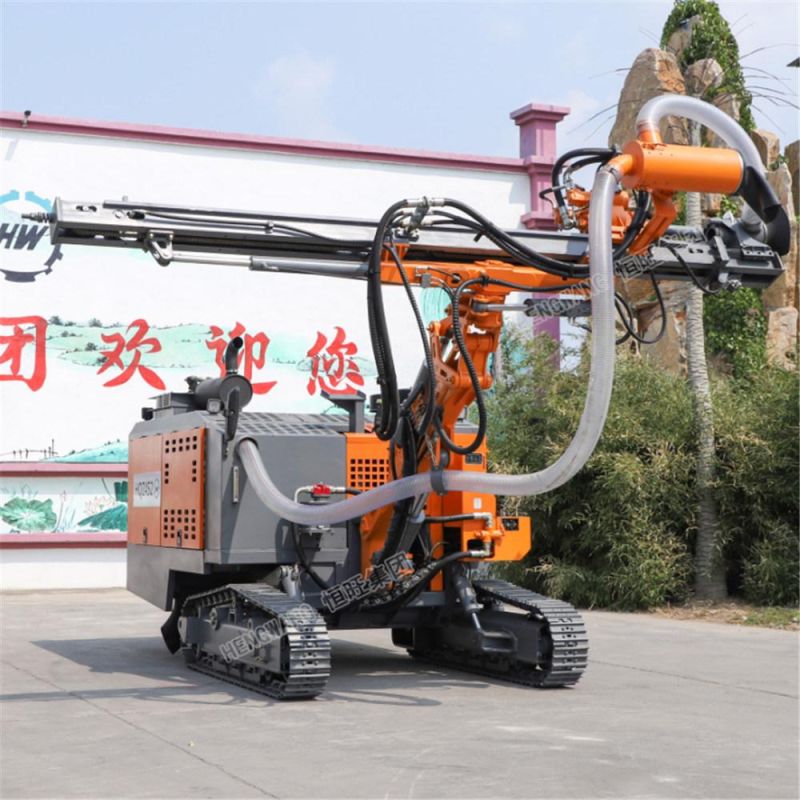

Hw-Up45 30m Depth Crawler Pneumatic Bore Hole Water Well Drill Rig Drilling Machine for Sale
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：12months
- Certification：CE, RoHS
- Condition：New
- Motor：Diesel
- Drill Hole Diameter：<100mm
Base Info
- Model NO.：HW-UP45
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
- Drilling Way：Compound
- Name：DTH Drilling Rig
- Hole Range：90 -130 mm
- Hole Depth：30 M
- Drill Pipe Size：68 *1,200 mm
- Feed Beam Length：3,010 mm
- Max.Rotation Torque：2,600 N.M
- Rotation Speed：68 -103 Rpm
- Air Compressor Pressure：10-25 Bar
- DTH Hammer Size：3"
- Total Weight：7,500 Kg
- Transport Package：20gp
- Specification：5500*1720*2650mm
- Trademark：HW
- Origin：Shandong
- HS Code：8428909090
- Production Capacity：1000PCS ,Month
Description
Main technical specifications
Hole range
90 -130 mm
Working Voltage
380 V
Hole depth
30 m
Cable reel capacity
60 m
Drill pipe size
68 *1,200 mm
Electric motor Power
55 kW
Number of pipes
24+1
Diesel engine power
58 kW
Feed beam length
3,010 mm
Tramming speed
3/1.5 km/h
Max.rotation torque
2,600 N.m
Turning radius
Pivot turning 360°
Rotation speed
68 -103 rpm
Climbing ability
30°
Pullup/ Feed force
25 kN
Feed beam rotation angle
360°
Air compressor pressure
10-25 bar
Working face dimensions: Width x Height
5,250x4,057 mm
Recommended compressor F.A.D.
4.5 -15 m3/min
Dimensions (Length x Width x Retracted / extended height)
6,000 X 2,400 X 2,550 mm
DTH hammer size
3"/4"
Total weight
7,500 kg
