• Model NO.：50m
• Drill Hole Depth：<100m
• Bit Type：Hammer Bit
• Drilling Way：Impactor
• Drill Pipe Sizes：76 X 3, 000 mm
• Hole Dia：90-138 mm
• DTH Hammer：4"
• Rotation Torque ( Max.)：2, 500 N.M
• Rotation Speed：0-100 Rpm
• Working Pressure：17 Bar
• F.a.D：16 M3,Min
• Gradient：25 Degree
• Total Weight：9, 310 Kg
• Transportation Dimensions：7, 550X2, 500X3, 060 mm
• Transport Package：Load in Container
• Specification：9300kgs
• Trademark：Hengwang
• Origin：China Shandong
• Production Capacity：5000 Sets Per Month

Basic Info.

Model NO. 50m Drill Hole Depth <100m Bit Type Hammer Bit Drilling Way Impactor Drill Pipe Sizes 76 X 3, 000 mm Hole Dia 90-138 mm DTH Hammer 4" Rotation Torque ( Max.) 2, 500 N.M Rotation Speed 0-100 Rpm Working Pressure 17 Bar F.a.D 16 M3/Min Gradient 25 Degree Total Weight 9, 310 Kg Transportation Dimensions 7, 550X2, 500X3, 060 mm Transport Package Load in Container Specification 9300kgs Trademark Hengwang Origin China Shandong Production Capacity 5000 Sets Per Month

Product Description

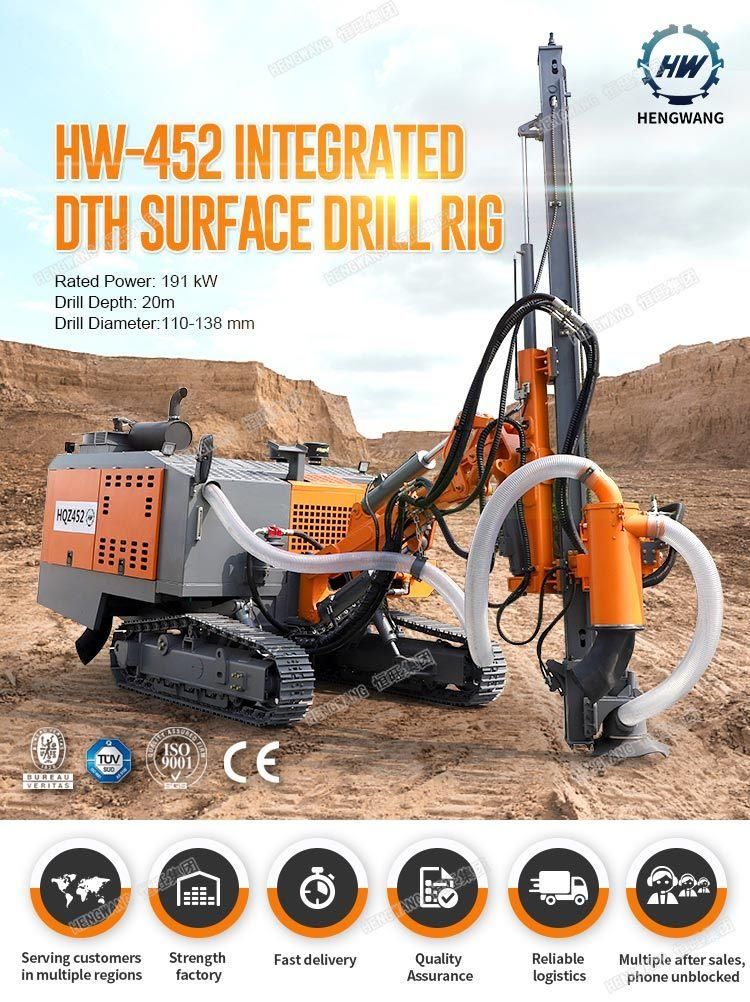

HW-452/452H Integrated DTH Surface Drill Rig



• 1.Equipped with Yuchai YC6A260L-T20 power pack 16 /17 Air compressor hole size.90mm138 mm and with dry dust collector.

• 2.HW452 Integrated DTH Surface drill rig with single power pack (only one diesel engine) to drive both screw air compressor and hydraulic system, compared with separated drill rigs, the fuel consumption reduced by 35% and maintenance cost down by 50%..

• 3.With global famous brand key hydraulic components, reliable for low maintenance cost.

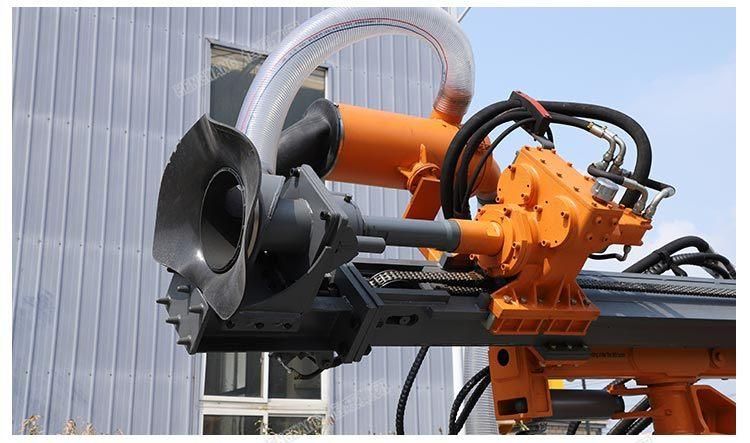

• 4.Powerful two-speed hydraulic tramming mechanism with excellent off-road performance .Bigger and stronger designed rotation unit for smooth high torque output and less drill tool jamming.

• 5.Two stage dry dust collector for friendly environment and higher production efficiency. Integrated design (air compressor on board ) for better long-distance fleet management.

Company Introduction
 Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of  40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an  integrated enterprise.
   Our company produces the piling machinery a total of 10 major series more than 20 varieties, mainly include photovoltaic crawler pile driver, caterpillar  screw drivers, HW series, KLB hydraulic pile driver walking long spiral drill, caterpillar diesel pile hammer machine, vibration sinking pipe pile, DZB multi- function rig, water well driling rig machine,concrete pump and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
