200m Air Trailer Portable Borehole Water Well Drilling Rig

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：140-305mm
  • Drill Hole Depth：200m
  • Drilling Way：Impactor
  • Type：Crawler

Base Info

  • Model NO.：FY200
  • Model No：Fy200
  • Rock Hardness：F6-20
  • Drill Rod：76mm*3m or 89mm*3m
  • One Time Propelling Length：3400mm
  • Work Pressure：1.7-3.0MPa
  • Air Consumption：17-30m3,Min
  • Rotary Speed：45-70rpm
  • Rotary Torque：3500-4800n.M
  • Diesel Power：65kw
  • Walk Speed：2.5km,H
  • Weight：5800kgs
  • Transport Package：40FT Container
  • Specification：4000*1750*2450mm
  • Trademark：JEAO
  • Origin：China
  • HS Code：8430412100
  • Production Capacity：200sets Per Months

Description

1.5  2.0  3.0

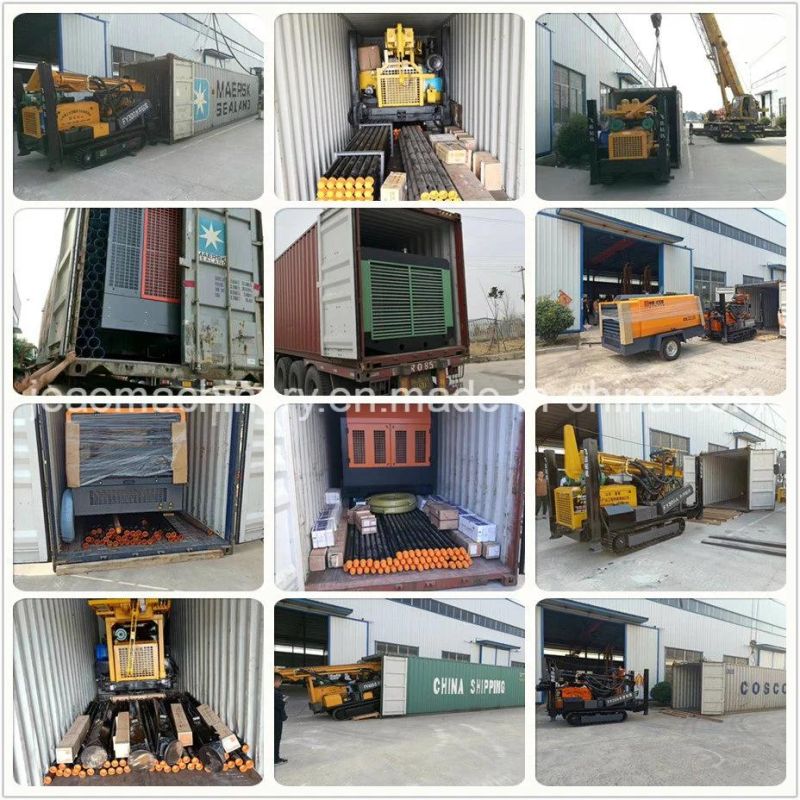

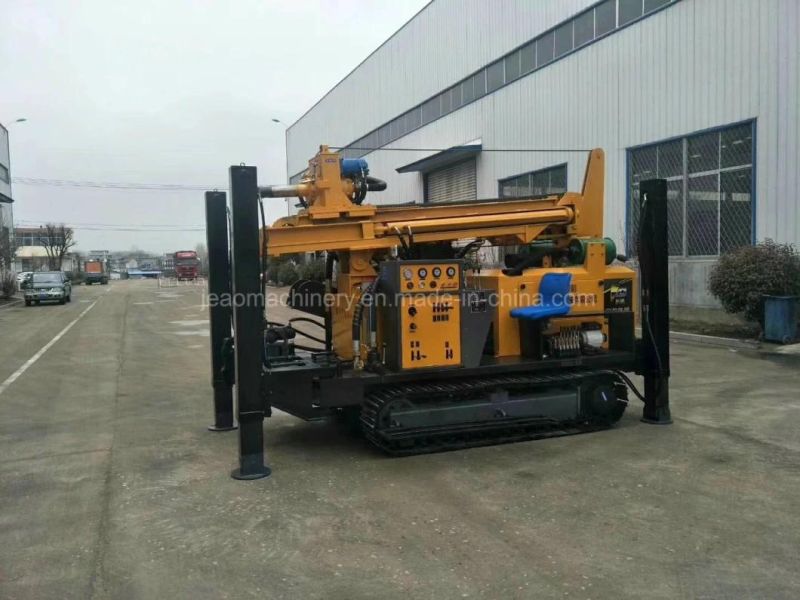

Photos For FY200 200m air trailer portable borehole water well drilling rig:
200m Air Trailer Portable Borehole Water Well Drilling Rig
200m Air Trailer Portable Borehole Water Well Drilling Rig
