Truck Mounted Water Well Core Drilling Rig 60-600m Depth
Shandong Shanglong Economic and Trade Corporation Ltd.- Certification:RoHS, ISO 9001:2000, ISO 9001:2008
- Condition:New
- Motor:DC Motor
- Drill Hole Diameter:100-150mm
- Drill Hole Depth:>200m
- Bit Type:Diamond Bit
Base Info
- Model NO.:BZC600
- Drilling Way:Mobile Gyrator
- Type:Truck Mounted
- Working Depth:0-600m
- Chassis:Special Drilling Chassis
- Transport Package:Mude
- Trademark:SINOTRUK
- Origin:China
- HS Code:84295100
- Production Capacity:90,Month
Description
Technical parameter
Drilling depth(M)
400
Drilling diameter(mm)
500
Speed of turntable(r/min)
117;102;60;38;23;13;16(reverse)
Torque of turntable(KN.m)
5.4---50(reverse)
Single rope lifting capacity of main windlass(KN)
45
The capacity of main windlass(KN)
270
Single rope lifting capacity of tool windlass(KN)
20
The rope capacity of tool windlass(m)
40
The lifting capacity of hook(KN)
270
Bearing capacity of mast (KN)
270
The height of mast (mm)
12500
Bearing capacity (t)
36
Pipe
Kelly (mm)
108×108×7500
Assistant pipe (mm)
89×10×5500
Hydraulic pump
Pump delivery (ml/r)
50/32
Rated speed (r/min)
2000
Rated pressure(MPa)
20
Diameter of cylinder (mm)
150
Stroke of piston (mm)
180
BW850/2A
plunger pump
Theory of flow (L / min)
600 850
Rated pressure (Mpa)
3 2
Pounding times (min-1)
58 82
Diameter of suction tube (mm)
127
Diameter of drain pipe (mm)
64
Input speed (r / min)
470
Input power (kw)
40
Overall dimensions (mm)
2000*1030*1400
Weight (t)
1.5
Truck chassis
Model
SINOTRUK
Drive form
6×4
Engine
Model
WP7.210E40 diesel engine
Rated power(KW)
155
Speed (r/min)
2300
Size (L*W*H)(mm)
10198×2490×2980
Electric generator
Model
MF
Rated power (kw)
30
Rated voltage(v)
400
Rated current(A)
27
Speed (r/min)
1500
Frequency(Hz)
50
Protection level
IP21
Insulation Class
H
The best working gear (or speed)
5th gear(1000-1400r/min)
The highest speed(Km/h)
70
Weight (kg)
21650
Transport size(L*W*H)(mm)
12740×2490×4210
Working size(L*W*H)(mm)
10780×3040×13800

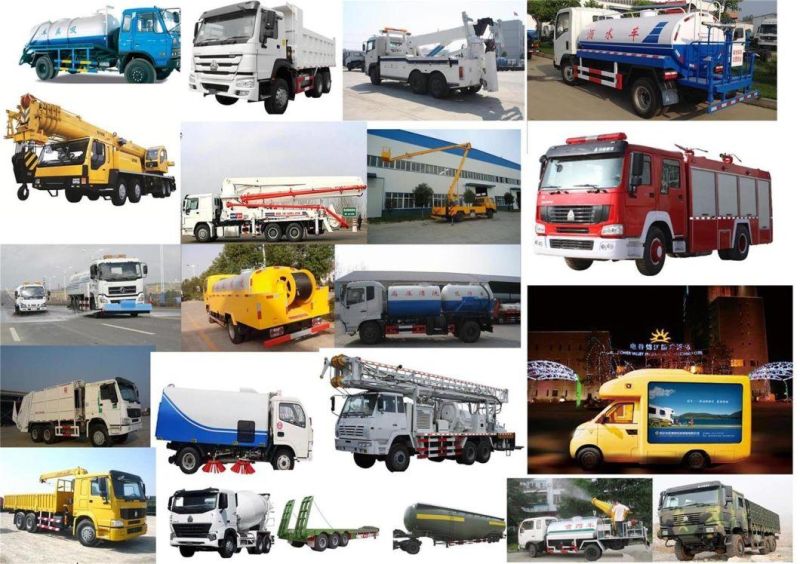

Our ralated products:

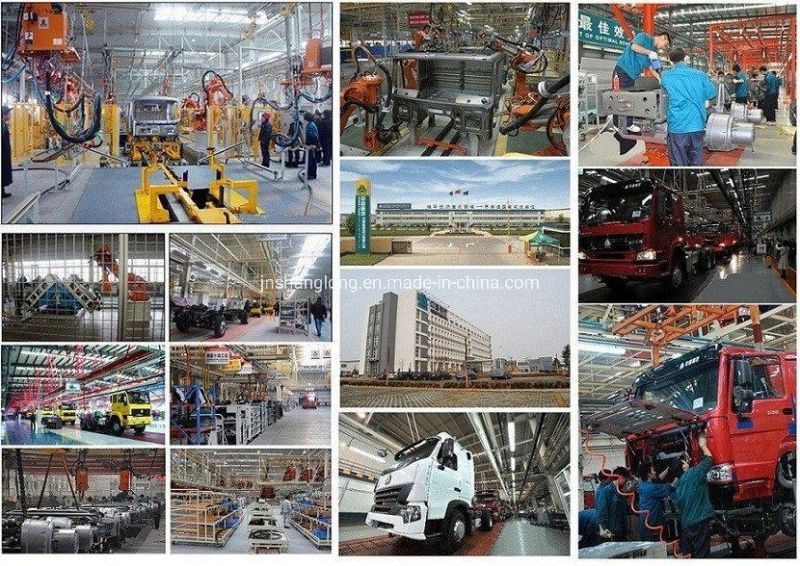

Factory:
