• Model NO.：G7
• Hole Diameter：76-115mm
• Drill Depth of Horizontal：21m
• Walking Speed：1.5,3.1km,H
• Working Pressure：9 MPa
• Air Consumption：6.3m3
• Weight：14500kg
• Size：11610*2450*3200mm
• Transport Package：Nude Packing
• Specification：11610*2450*3200mm
• Trademark：GIA
• Origin：China
• HS Code：8432412200
• Production Capacity：300sets,Month

Basic Info.

Model NO. G7 Hole Diameter 76-115mm Drill Depth of Horizontal 21m Walking Speed 1.5/3.1km/H Working Pressure 9 MPa Air Consumption 6.3m3 Weight 14500kg Size 11610*2450*3200mm Transport Package Nude Packing Specification 11610*2450*3200mm Trademark GIA Origin China HS Code 8432412200 Production Capacity 300sets/Month

Product Description

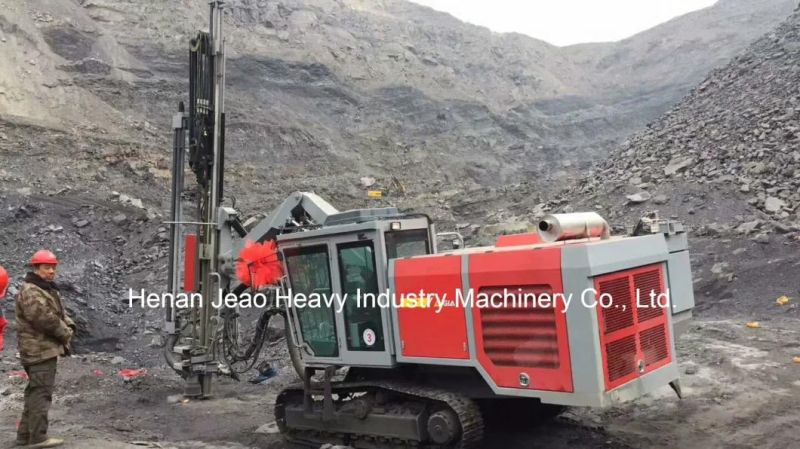

Made by Atlas Copco Joint venture subsidiary. G7 full hydraulic top hammer drilling rig adopts high power diesel engine with strong power, which can easily meet the requirements of high altitude, extreme cold and other bad working conditions, equipped with ATLAS COPCO rock drill, with high perforation efficiency,  G7 Hydraulic crawler drilling rig is widely used in drilling operations such as earthwork excavation, quarry material extraction and slope treatment in open pit mines and construction projects.

Control system
The programmable logic controller system has high reliability, simple installation, convenient maintenance, strong functional expansion space and easy fault diagnosis.

Safety system
Integrated display engine oil temperature and pressure, coolant temperature and water level, compressed air discharge temperature, pressure and other alarm parameters, as well as equipped with wiper, Angle meter, emergency stop and battery charging instructions.

Hydraulic rock drill
Equipped with high power and high pressure rock drill designed by atlas copco, it has high perforation efficiency, high and low impact, rotary pressure control and propulsion, double buffering system and automatic anti-jamming function, so that it is more adaptable to different rock conditions while reducing drilling tool loss.

Drill arm system
Adopt rectangular section folding arm structure, drive arm movement through hydraulic cylinder, ensure the flexibility and stability of drill arm system movement. At the same time, exquisite steering and push beam bracket design, make the drill in the facade is 0.3 7.6 m vertical and horizontal hole drilling hole, the hole cover area of the plane can reach 17m2

Dust collection system
Two-stage dry dust collection system can be self-cleaned online, with good dust collection effect, meeting the national dust emission requirements.

Propulsion beam system
Aluminum alloy beam driven by oil cylinder and steel wire rope, with higher strength and better bending resistance, can achieve ideal drilling straightness. Compared with chain driven drilling machine, the G7 is more stable in drilling. The beam is equipped with mechanized pole changing system. The operator can complete the action of connecting and unloading rods in the driving room to reduce labor intensity, save labor cost and improve production efficiency.

Cabin
Equipped with high power air conditioning refrigeration system and warm air system, able to operate normally under various bad weather conditions. The main control mode of the handle makes the operation more simple and convenient, and provides a good working environment for operators to avoid dust pollution.

Power system
The diesel engine is increased by adopting the high power turbine of the state III standard, which provides sufficient power reserve for the whole vehicle, so that the drill can better adapt to the severe working environment such as high altitude and extreme cold. Equipped with screw air compressor, the perforation efficiency is improved while good slag discharge effect is guaranteed.

Chassis system
Crawler-type walking chassis, equipped with high-power dual speed hydraulic drive traction system and hydraulic swing adjustment system, as well as the small-size fuselage width design, makes the rig with excellent off-road and maneuverability.

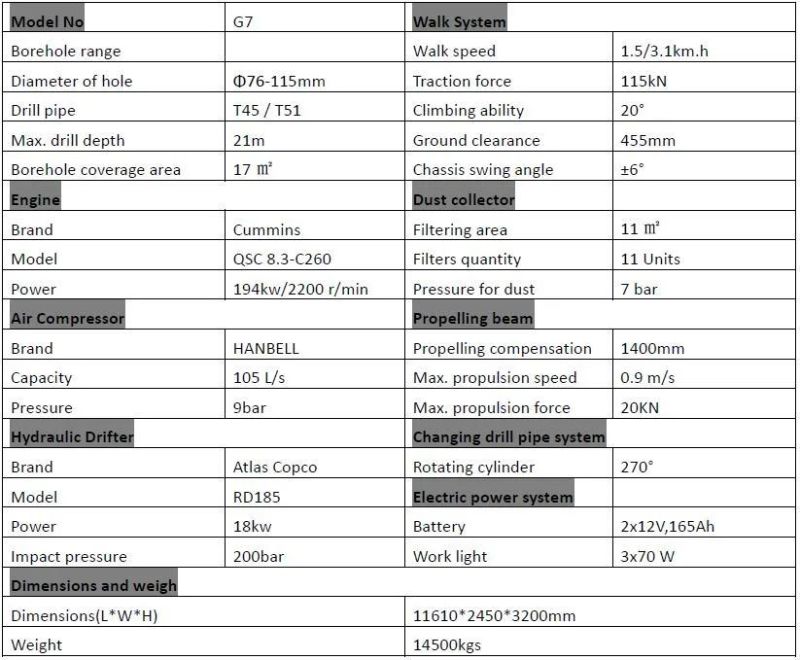

Technical Parameter
