• Model NO.：JW120
• Drilling Way：Rotary
• Type：2 Wheels
• Rock Hardness：F6-20
• Rotary Speed：90rpm
• One Time Propelling Length：2000mm
• Work Pressure：0.5-0.7MPa
• Air Consumption：7.2-12m3,Min
• Diesel Power：16.2kw
• Weight：1700kgs
• Transport Package：20FT Container or LCL
• Specification：4375*1650*1920mm
• Trademark：JEAO
• Origin：China
• HS Code：8430412100
• Production Capacity：300sets Per Months

Basic Info.

Model NO. JW120 Drilling Way Rotary Type 2 Wheels Rock Hardness F6-20 Rotary Speed 90rpm One Time Propelling Length 2000mm Work Pressure 0.5-0.7MPa Air Consumption 7.2-12m3/Min Diesel Power 16.2kw Weight 1700kgs Transport Package 20FT Container or LCL Specification 4375*1650*1920mm Trademark JEAO Origin China HS Code 8430412100 Production Capacity 300sets Per Months

Product Description

High Quality JW120  Trailer Mounted Small Borehole Water Well Drilling Rig

JW120 Trailer Mounted Small Borehole Water Well Drilling Rig :

The down hole drill is a new, highly efficient and extensively applied open-air rock drilling equipment, which is extensively suitable for small and medium sized mines and the project such as communications,national defense, water conservancy and stonework, in particular the rough and rugged terrains and land forms where other drills are unable to operate normally. the machine can be used for water drilling and drill blast hoes on mine. it can also be used to drill under roads for cable lines.

Specification for JW120  Trailer Mounted Small Borehole Water Well Drilling Rig :

Rock Rigidity	F=6-20
Total weight	1700kg
Dimension	4375*1650*1920mm
Drilling diameter	90-150mm
Drilling depth	70-120m
Once promotion distance	2000mm
Working pressure	0.5-0.7Mpa
Torque	1600N.m
Speed	90 r/min
Air consumption	7.2-12m3/min
Hose Power	16.2Kw
Impact frequency	800 r/min
Drill rod size	60mm
Hammer	90
Drill bit	90mm

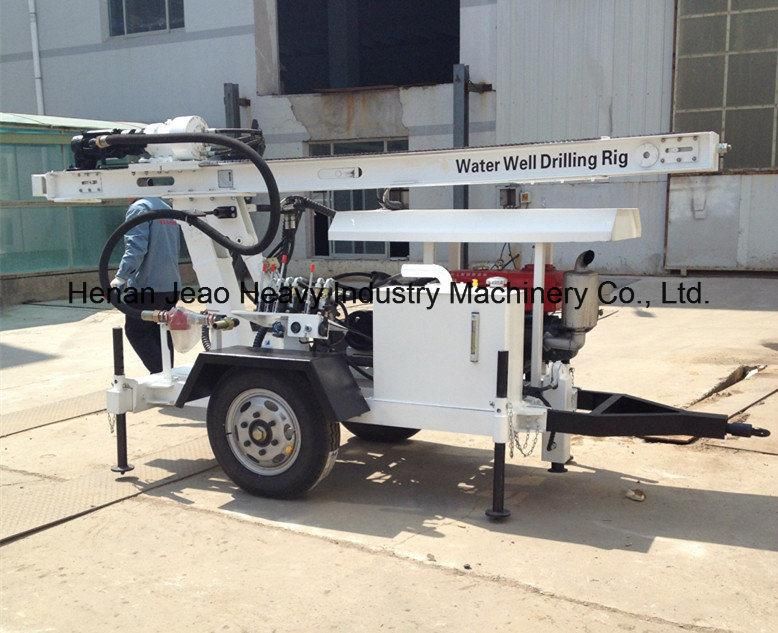

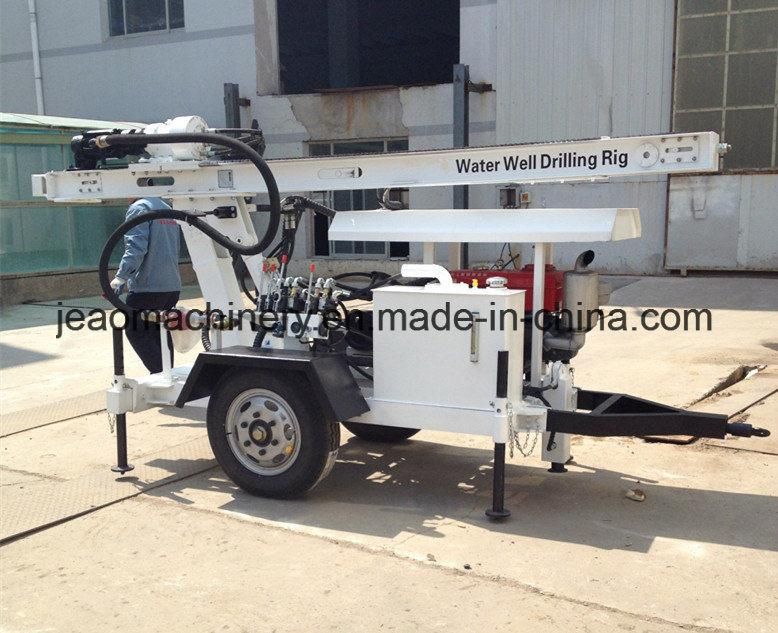

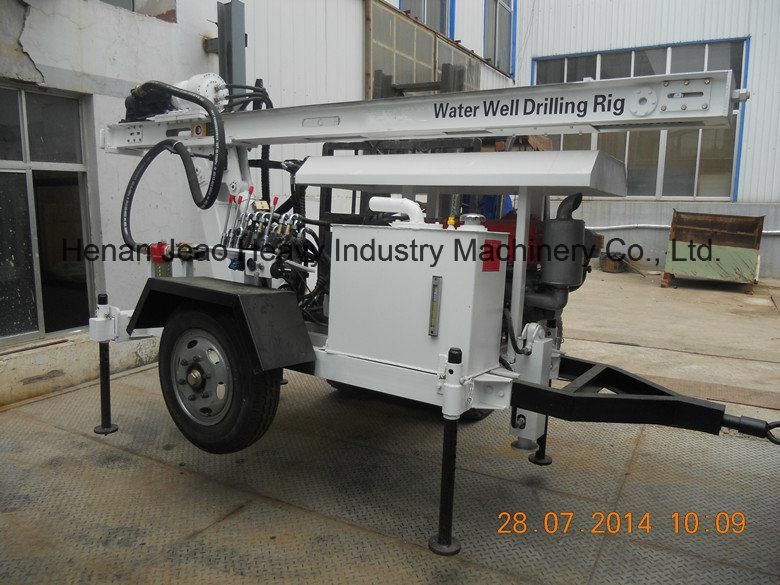

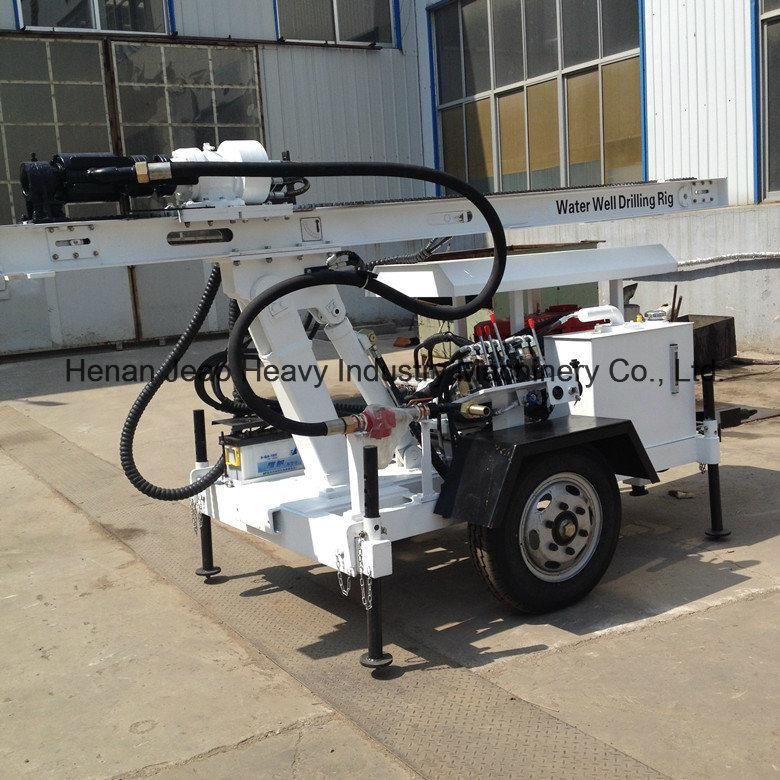

More picture for JW120  Trailer Mounted Small Borehole Water Well Drilling Rig :
