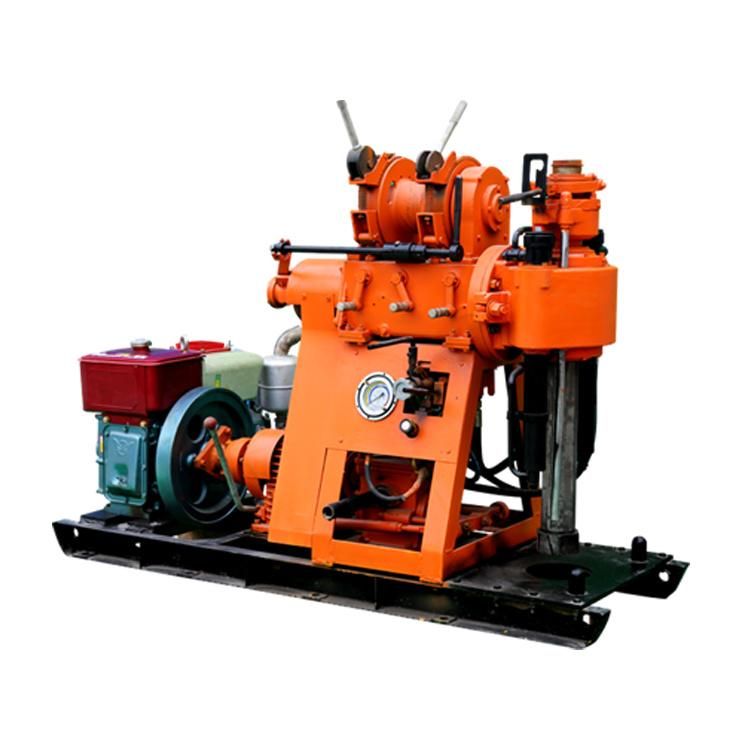

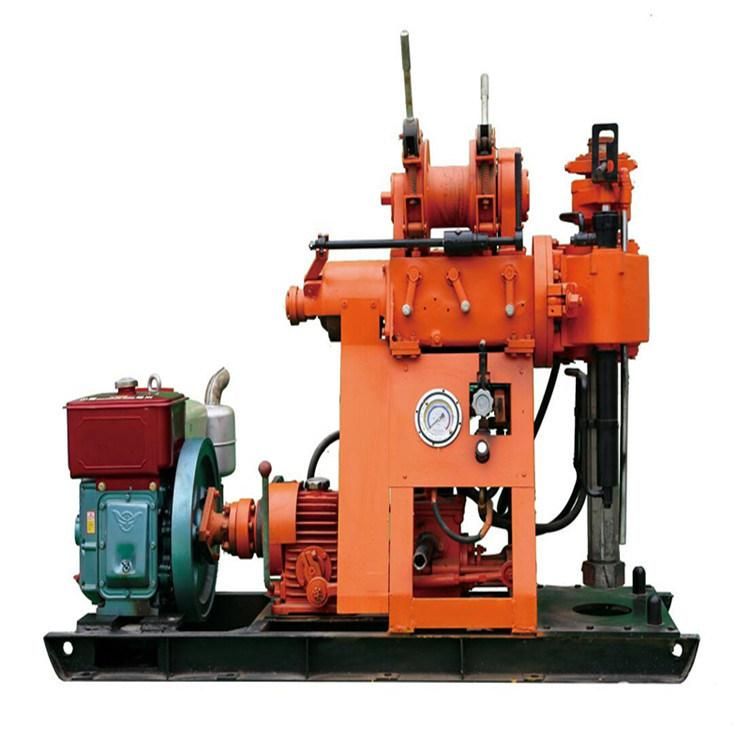

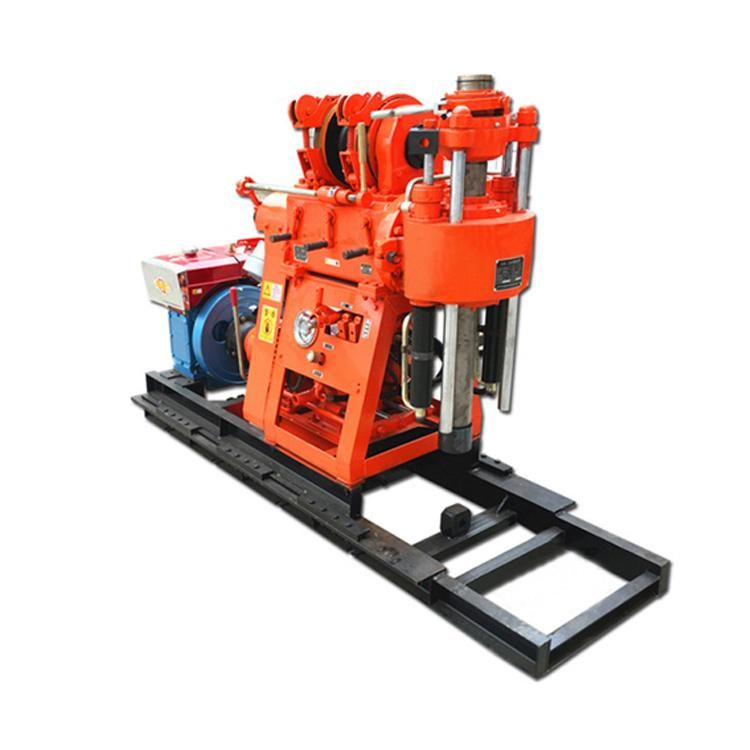

Xy-200 Portable Hydraulic Water Well Drilling Rig
Jining Bafang Mining Machinery Group Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：250-300mm
- Drill Hole Depth：150-200m
- Bit Type：Cone Bit
Base Info
- Drilling Way：Rotary
- Product Name：Hydraulic Water Well Drilling Rig
- Drilling Depth(M)：200m
- Drilling Diameter(mm)：300mm
- End Hole Diameter：75mm
- Drill Rod Diameter：60mm
- Drilling Angle：90deg~75deg
- Drill Weight (Without Power)：Drill Weight (Without Power)
- Power：Diesel Engine 22HP Electric Motor 15kw
- Displacement：Diesel Engine 170L,Min Electric Motor 150L,M
- Maximum Pressure：3MPa
- Transport Package：Wooden Box
- Specification：975kg
- Origin：Shandong, China (Mainland)
- Production Capacity：10,Month
Description
Drilling depth
30-180m
Drill rod diameter
42mm/ 50mm
End hole diameter
75-46mm
Max. open hole diameter
75-150mm
Drilling angle
90°~75°
Weight
955kg
Unity machine dimensions
2400*950*1400mm
Spindle
spindle speed
130, 300, 480, 730, 830, 1045r/min
Spindle stroke
450mm
Hoist
Max. single line hoisting capacity
2000kg
Effective height
6m
Tower leg diameter
73mm
Mud pump
Model
BW95
Displacement
95L/min
Maximum pressure
1.2Mpa
Suction pipe diameter
51mm*4.5m
High pressure water pipe diameter
32mm*6m
Engine
13.2/2200KW diesel engine
