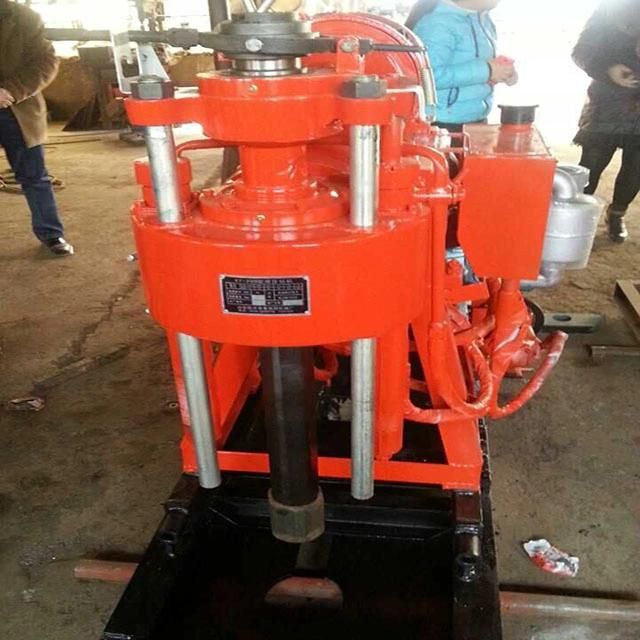

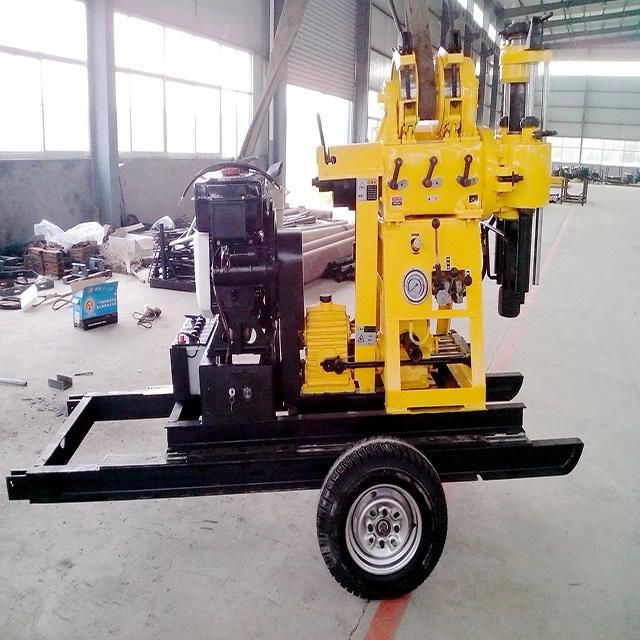

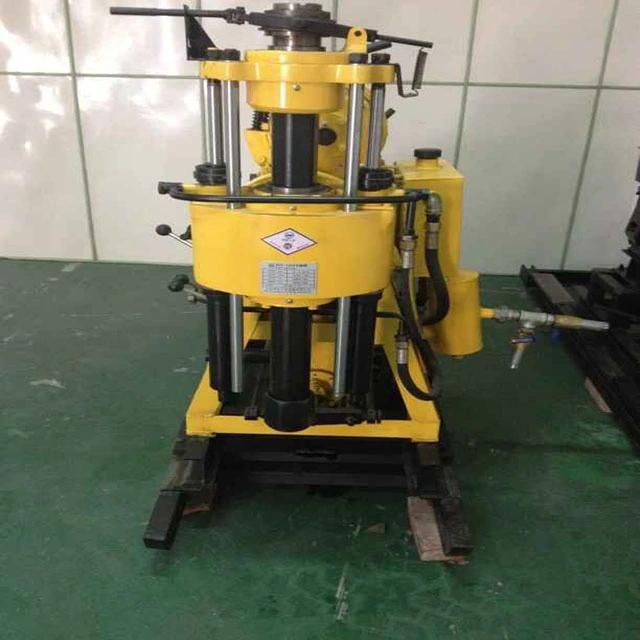

200m Hz200yy Light Weight Hydraulic Core Water Well Drilling Rig
Jining Bafang Mining Machinery Group Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：250-300mm
- Drill Hole Depth：150-200m
- Bit Type：Cone Bit
Base Info
- Drilling Way：Rotary
- Product Name：Hydraulic Water Well Drilling Rig
- Drilling Depth(M)：200m
- Drilling Diameter(mm)：300mm
- End Hole Diameter：75mm
- Drill Rod Diameter：60mm
- Drilling Angle：90deg~75deg
- Drill Weight (Without Power)：Drill Weight (Without Power)
- Power：Diesel Engine 22HP Electric Motor 15kw
- Displacement：Diesel Engine 170L,Min Electric Motor 150L,M
- Maximum Pressure：3MPa

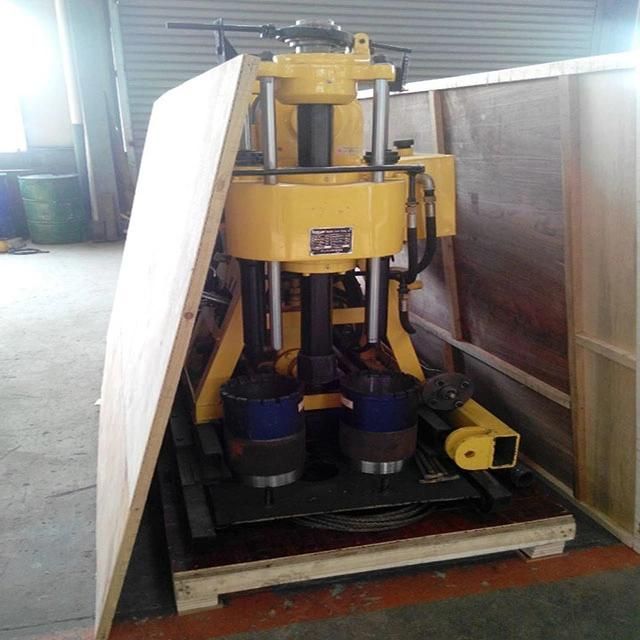

- Transport Package：Wooden Box
- Specification：975kg
- Origin：Shandong, China (Mainland)
- Production Capacity：10,Month
Description
Drilling depth
200m
Max open hole diameter
300mm
End hole diameter
75mm
Drill rod diameter
60mm
Drilling angle
90°~75°
Drill weight (without power)
975kg
Triangle conveyer belt
B950 x 4; B1700 x 3
Main machine moving distance
300mm
Power
Diesel engine 22HP
Electric motor 15kw
Spindle
spindle speed
64, 128, 287, 557r/min
Spindle stroke
450mm
Hoist
Max. lifting capacity
2400kg
Single line lifting speed
0.41, 0.82, 1.64m/s
Wire rope diameter
13mm
Wire rope length
35m
Reel diameter
140mm
Hug floodgate diameter
260mm
Hug floodgate belt width
70mm
Mud pump
Type
Horizontal single-urn twin-action
Displacement
Diesel engine 170L/min
Electric motor 150L/min
Maximum pressure
3Mpa
Work pressure
1.5Mpa
Inlet pipe diameter
40mm
Outlet pipe diameter
30mm
Triangle conveyer belt
B1728mm
