• Model NO.：GS6000-TS
• Type：Trailer
• Engine Power：3*410 kw
• Max Torque：160000 N·m
• Max Mud Pump Flow：Extra Mud Pump
• Transport Package：Nude Packing
• Specification：20400*2500*3740 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GS6000-TS Type Trailer Engine Power 3*410 kw Max Torque 160000 N·m Max Mud Pump Flow Extra Mud Pump Transport Package Nude Packing Specification 20400*2500*3740 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

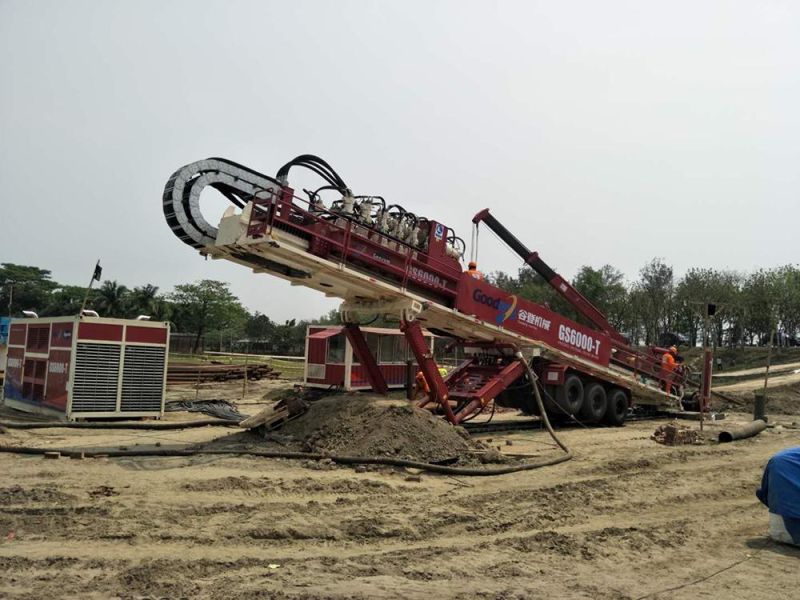

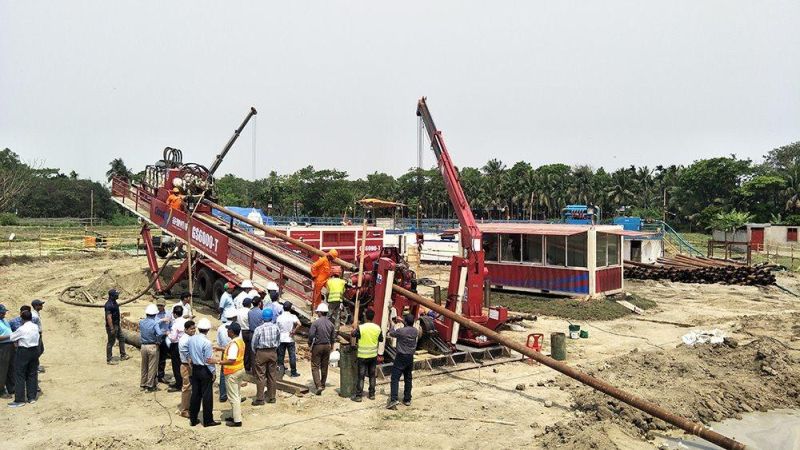

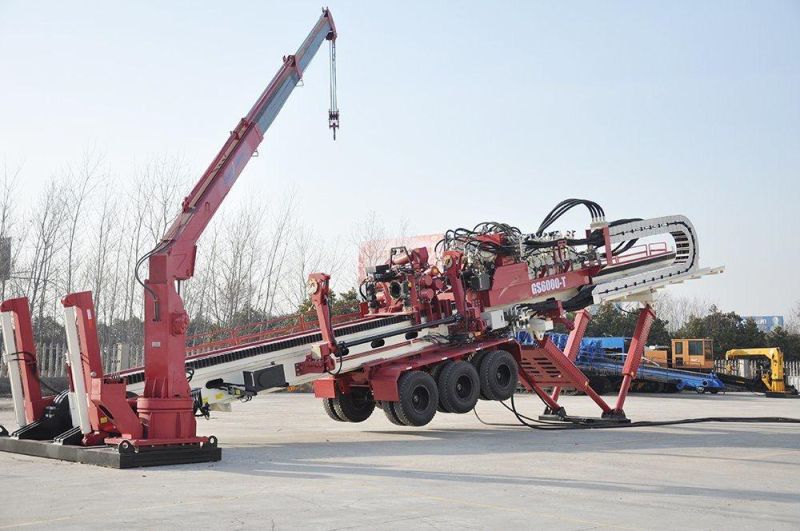

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1.Main power :

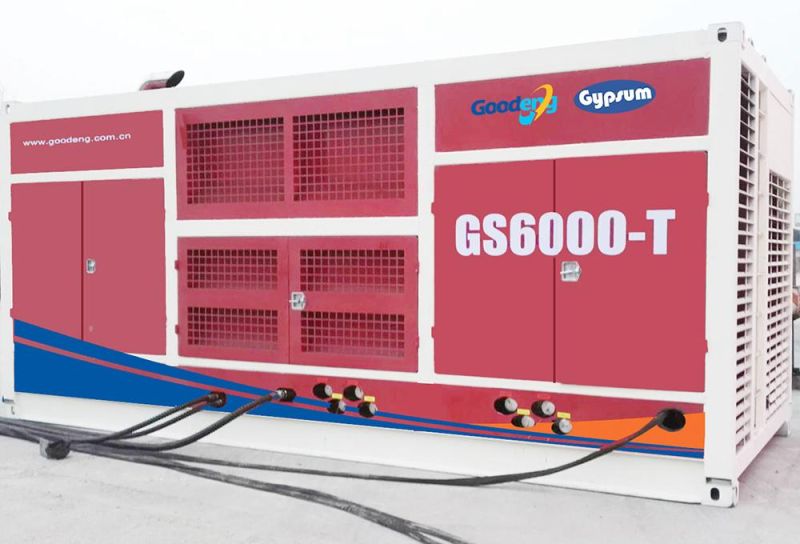

 a)410KW*3 sets of Dongfeng Cummins engine, electrical-control power control system realizes perfect coordination with hydraulic system power in all kinds of project condition, strong power, energy saving. Separated power station, the structure is designed according to container dimension, which is convenient to transport.
b)It realizes single engine work and double engine working combination according to project requirement.
c)The diesel engine monitor system is based on several safety protection measures, which is easy to observe, record diesel engine status, and can protect the diesel engine immediately when there is problem and operation condition which is not good for diesel engine.
2. Hydraulic system:
a) Main drive oil pump: 5 sets of Rexroth high-pressure large-flow swash plate axial plunger pump,electronic control of constant power+ pressure cut off +Electric proportional displacement control, realize flow supply according to the require, avoid pressure loss and flow loss, and it is with pressure automatic protection, hydraulic system operation much safer and energy saving.
b) Main control valve: according to construction, it is independent design with patent protection main switch valve. Simple and reliable structure ensures trouble-free operation, big drift diameter design, less throttling loss, lower temperature, energy saving, compact shape, reasonable layout is used to rig power system.
c) Rotation, push-pull hydraulic motor: well-known and leading standard Rexroth high pressure axial plunger motor, which is used to high pressure and low speed condition, when pull pipe, it is strong and stable, ensures safety and reliability of the construction.
d) Main hydraulic system: compared to closed-circuit system, high pressure electric proportional control open-circuit system, there is no pressure difference loss because of no-oil-adding pressure, system is more energy saving, rig ability is much improved.
e) Push-pull rotation control: power head rotation and push-pull speed is full proportional linear infinitely variable speed. Working pressure can be remote control voltage regulated, it is easy to adjust torque and push-pull force any time, ensure project and drilling tools safety.
f) Walking reducer assembly: compact high-press heavy-loaded walking reducer assembly used in excavator, higher reliability, bigger torque provides strong walking and climbing ability, which adapt to more bad ground and slope.
g) Auxiliary hydraulic system: the open-circuit is composed of classic Sauer high-pressure load sensitive oil pump+ proportional control multi-way valve, ensure unscrewing capacity of clamping. Meanwhile, all auxiliary movement control is more accurate, reliable and stronger.
h) Hydraulic accessory: big-capacity filter with large dirty hold ability ensures system cleanness degree and extend maintenance interval; key tube adopts original Italy imported high pressure steel wire hose.
i) Quick tube connection system: Italy original imported high press big diameter quick connector+ Italy original imported high-pressure steel wire hose, ensure quick and reliable connection and disconnection between rig and power station, in the process, small oil leakage can meet crucial environment requirement.
3.Electrical system:
a) Software: Includes a series of independent design safety control system and auxiliary control software, Such as "vehicle self-diagnosis system", "automatic pendulum drilling system", "electrical pressure cut system(automatic pressure protect)", "temporary limit automatic cancel function", more humanized design and strong debuging ability, making full use of rig capacity, enhancing work efficiency.
b) Hardware: American imported original controller specialized in construction machine,can adapt to bad project environment, waterproof, shockproof, dustproof, prevent electromagnetic interference, which is already fully approved safety operation in excavator, ensure reliable operation of electrical control.
4.Structure design characteristic
a) Main rig, power station, operation cabin are detached, main rig is designed as crawler to meet the transport regulation.
b) Power station, operation cabin is skid-mounted, the design of joint conform to container requirement.

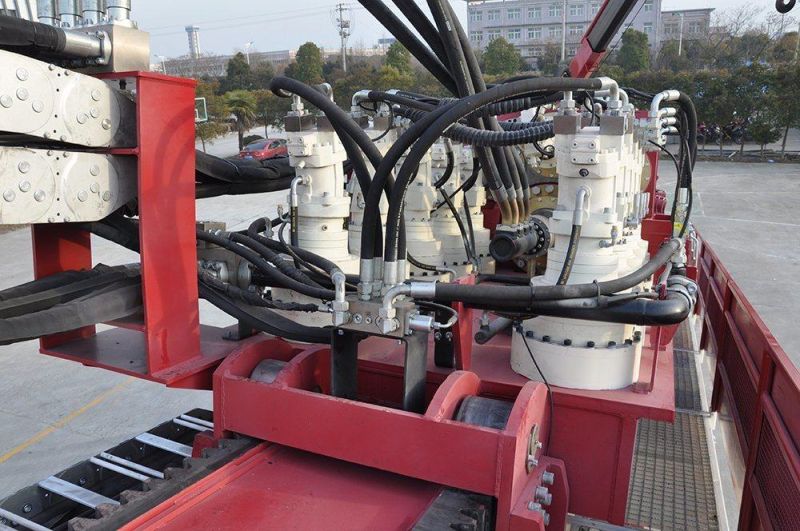

c) 10 sets of push&pull motor equipped with manually high-strength large-torque clutch can be performed alternatively to extend the life of motor and reduce, rotation motor is equipped with two clutches.

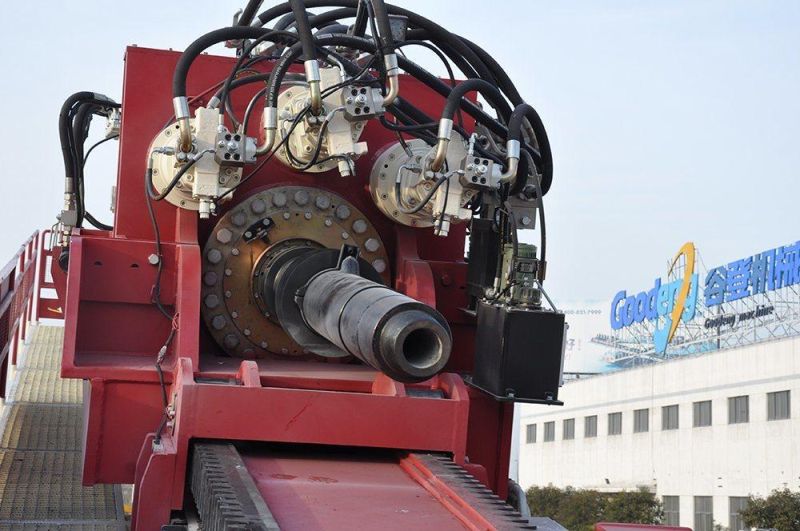

d) The transmission type of driving head adopts rack&pinion
e) The main shaft is floating to conveniently unbuckle and eliminate alternating stress to extend life if rods.

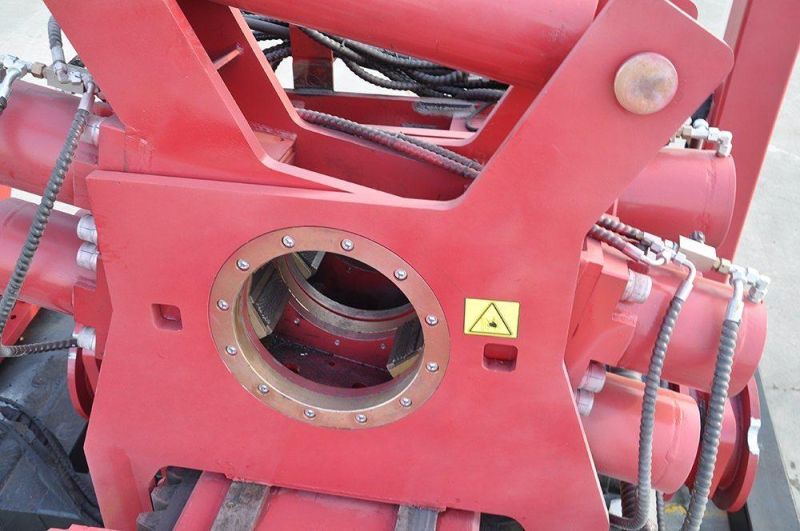

f) Clamp is all floating with rear and front clamp can be separated. The grip holder can be changed in accordance with rod dimension.
g) Application of wire pilot drilling.
h) Equipped with slurry pressure release device.

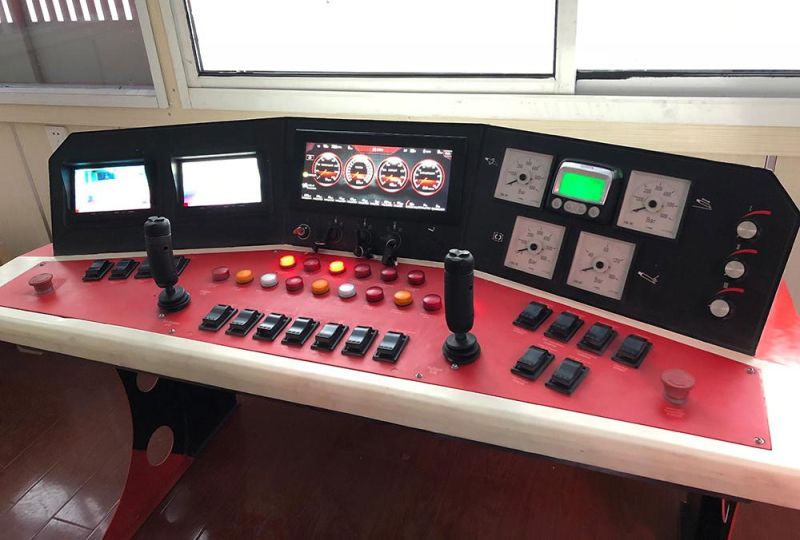

i) Independent operation cabin accomodating a few people, capacious and wide-view, equipped with air-conditioner.
j) One side and end of the beam is fitted with aisle and guardrail.
k) Mud pump station and mud mixing system is detachedly equipped and optional.

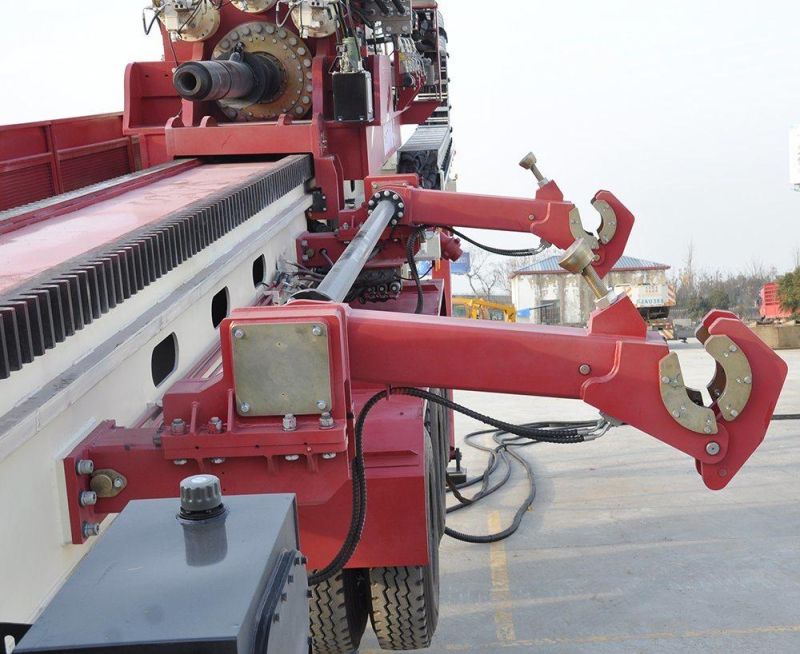

l) Equiooed with manipulator to enhance the efficiency of loading/unloading rods.
m) High wear-resistance and high shock-resistance alloy steel rack&pinion.

[Main Technical Parameters]


Engine Power	3*410 kw	Driving Head Max. Theoretical Torque	160000 N·m
Driving Head Max. Theoretical Push & Pull Force	6700 kn	Max. Clamping Force of Pipe Jaw	1500 kn
Max. Working Pressure Set in System	35 Mpa	Max. Unscrewing Force of Pipe Jaw	420000 N·m
Max. Flow in Hydraulic System	2700 L/min	Rig Dimension(L*W*H)	20400*2500*3740 mm
Drill Pipe Diameter	10"	Rig Weight	About 73T
Max. Length of Drill Pipe	9.6 m	Power Station Dimension(L*W*H)	6100*2500*2700 mm
Driving HeatMax. Rotation Speed	90 rpm	Power Station Weight	ABout 20T
Driving Heat Max. Push & Pull Speed	40 m/min	Permitted Working Temperatue	-20~45°C
Main Spindle Floating Distance	110 mm	Permitted Enviroment Humidity	>90%
Mud Pump Channel Diameter	4"	Permitted Working Altitude	Altitude 0-2000m
Max. Mud Flowing Volume	3000 L/min	Referential Back-reaming Aperture	Φ2200mm(Soil Depended)
Max. Mud Pressure	20 Mpa	Drill Incidence°	8-18°
Referential Drilling Distance	3300 m
