• Model NO.：Bw160
• Type：Crawler
• Transport Package：Standard Wooden Case
• Specification：automatic
• Trademark：YUGONG
• Origin：China
• Production Capacity：30 Sets , Month

HORIZONTAL DIRECTIONAL DRILL

                                               ITEM

                PARAMETER

Engine

Make

Cummins

Model

QSB5.9-C210

Rated Power

154 KW / 2200 R/Min

Operation

Type

Rack and pinion

Max. Thrust /Pullback Force

320/320 KN

Max carriage thrust/pullback travel speed

22M/Min

Max. Spindle Torque

12000 N·M

Max. Spindle Speed

140 R/Min

Type

Self-Propelled Steel Track

Ground Travel Speed

3.0 Km/h

Drill Rod/ Drill pipe

Diameter ×Length

Φ73 mm×3000mm

Entry Angle

10~20°

Mud Pump

Max flow rate

320L/Min

Max pressure

8

Overall Weight

10T

Overall Dimension

6500×2250×2450m

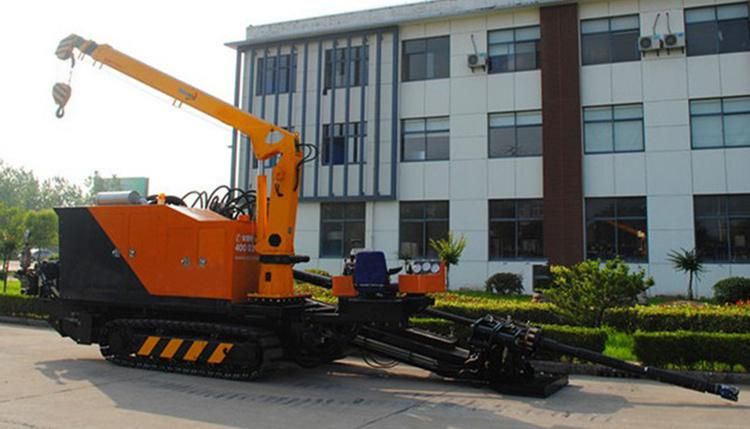

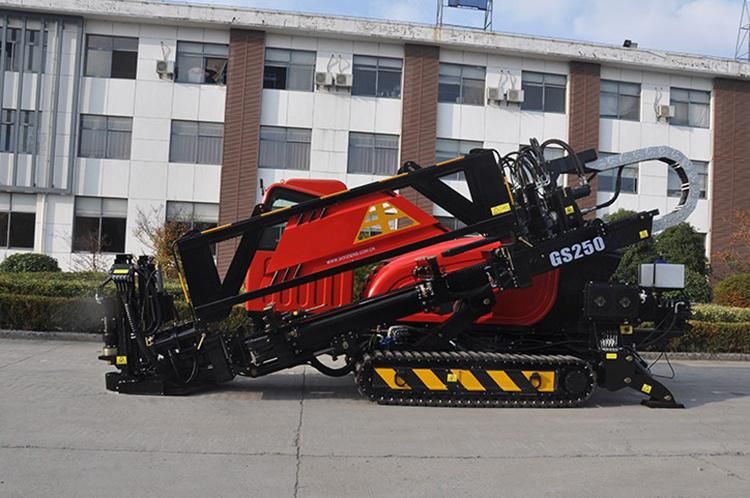

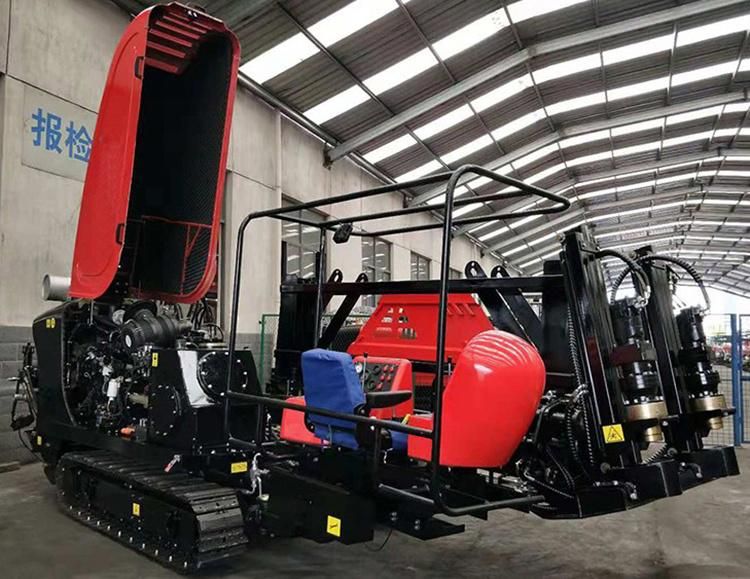

Product Display





1.Cummins engine.
2.Military technology hydraulic gear pump.
3.Push & pull and rotation hydraulic system adopt series of parallel control technology and the international first-class components.
4.Rotation and push & pull pilot control.
5.The power head rotation is driven by the Eaton motor achieves infinitely variable speed. Push & pull adopts Eaton motor and three gears speed regulation.
6.Driving head reserves reinforced power - push & pull force.
7.Wire-control steel track walking with hydraulic driving.
8.Man-machine construction manner .
9.φ73×3000 mm or φ76×3000mm or φ83×3000mm drill rod.
10.Reasonable electric design.
11.Rig shape is"people-oriented".
12.Rig is advanced, and the working efficiency has been improved by 30%.
13.Humanization design:the mechanical arm ,air-condition cab , rod-loading box, auto anchor, auto thread oil machine etc.
14.The DCI Aurora colorful display screen dashboard.
