• Model NO.：XZ1000
• Type：Crawler
• Transport Package：Comply with Export Packaging Requirements
• Specification：14980*3150*3500mm
• Origin：China
• HS Code：84305090
• Production Capacity：30sets,Month

Basic Info.

Model NO. XZ1000 Type Crawler Transport Package Comply with Export Packaging Requirements Specification 14980*3150*3500mm Origin China HS Code 84305090 Production Capacity 30sets/Month

Product Description

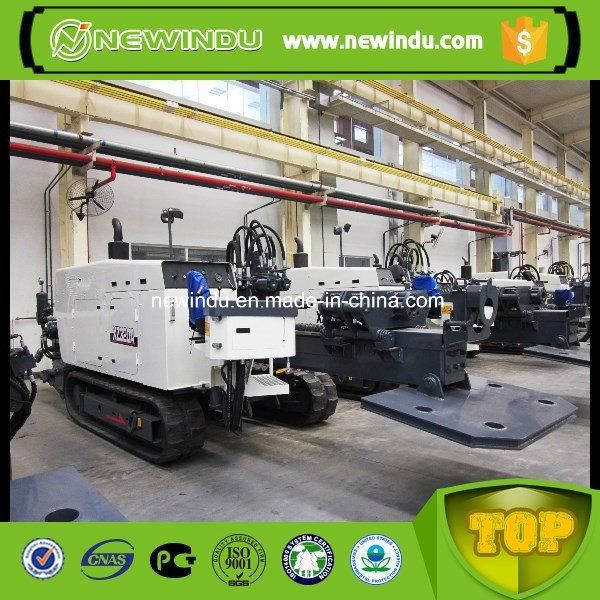

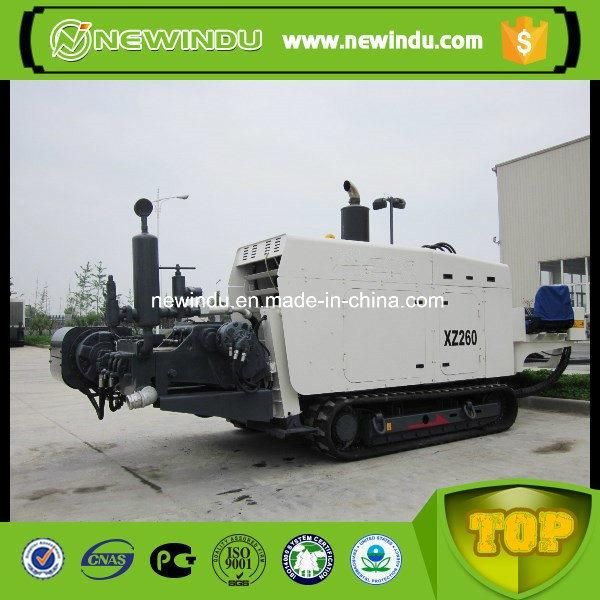

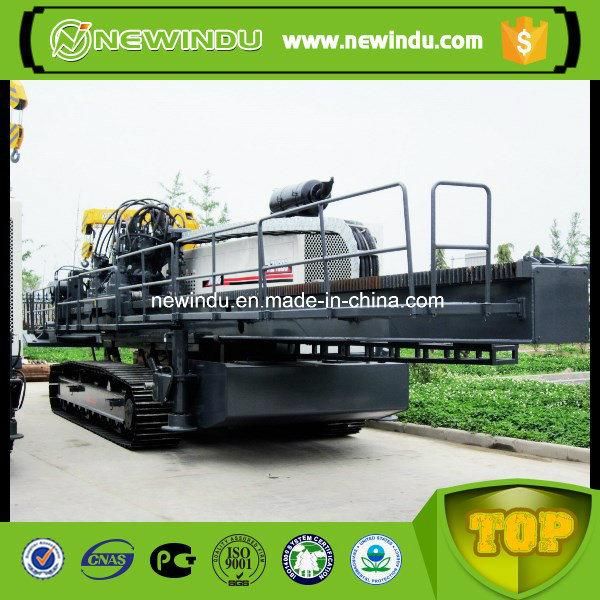

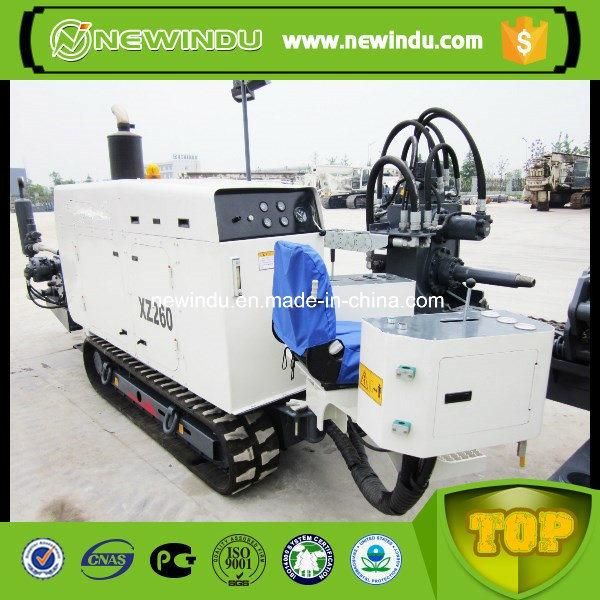

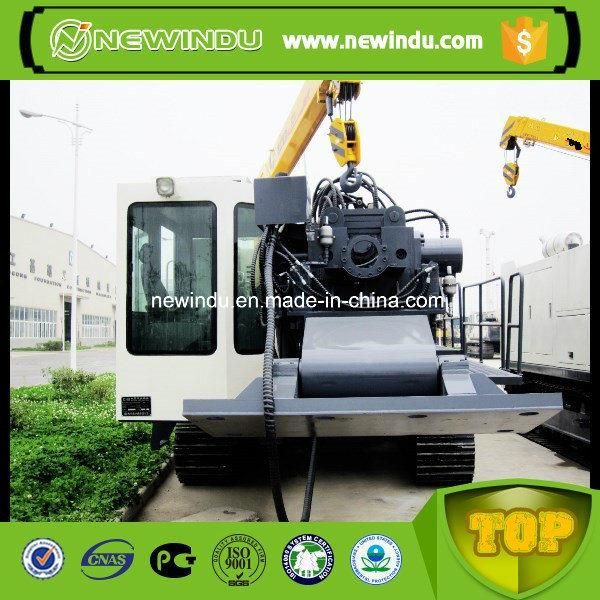

  XZ1000 drilling rig 1000KN Pulling Horizontal Directional Drill (HDD) Rig

[Product Description]

1. Imported elements can ensure the reliable quality
2. Rotation: Driven by a low-speed high torque motor to operate at two gear speeds
3. Push-pull: Rack-and-pinion push-pull, stepless speed regulating with two gears and high working efficiency.
4. Operation: American P+G electric control handle with simple and reliable circuits and high sensitivity.
5. Engine: The turbocharged engine with high power reserve ensures the drilling power and emergent needs.
6. Wire-controlled travel: Makes it easy to operate and adjustable at high/low speed.
7. Emergent operation: Equipped with manual operation system to provide protection in case of emergency.

[Product Parameter]


Main Technical Specification
Model	Unit	XZ1000
Engine		CUMMINS
Rated power	kW	392
Push-pull		Rack and pinion
Max.pullback/thmsting	kN	1000/1000
Spindle torque (max)	N.m	55000
Spindle speed	r/min	0-80
Travelling speed of power head	m/min	0-30
Backreaming diameter	mm	Φ1200
Pipe length(single)	m	9.6
Pipe diameter	mm	Φ127
Entry angle	°	10~18
Mud flow rate (max)	L/min	External
Mud pressure (max)	bar	200
Overall weight	T	40
Dimension (LxWxH)	mm	14480x3150x3500
