• Model NO.：dali
• Drilling Way：Compound
• Colour：as Customers′ Need
• Certifications：API,CCS,ISO9001-2008
• Application：Mine, Oilfield, Construction, Engineer
• Model Number：Tmy
• Warranty：12months
• Transport Package：Iron Boxes or Hard Wooden Cases
• Specification：API,CCS,ISO,CE certifications
• Trademark：YS Safe Power
• Origin：Yantai City, Shandong Province, China
• Production Capacity：1000sets Per Month

Basic Info.

Model NO. dali Drilling Way Compound Colour as Customers′ Need Certifications API/CCS/ISO9001-2008 Application Mine, Oilfield, Construction, Engineer Model Number Tmy Warranty 12months Transport Package Iron Boxes or Hard Wooden Cases Specification API/CCS/ISO/CE certifications Trademark YS Safe Power Origin Yantai City, Shandong Province, China Production Capacity 1000sets Per Month

Product Description

Introduction:

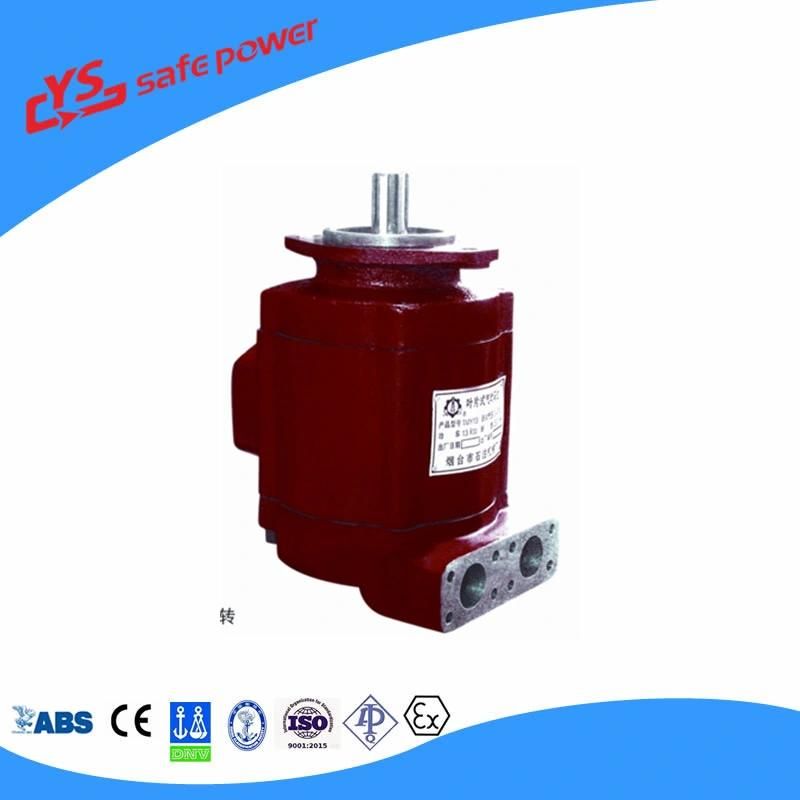

TMY vane air motor is a kind of energy conversing device, which adopts compressed air to rotate vanes, changing air pressure energy into mechanical energy and outputting driving power.


Parameters:

Working Pressure(MPa)	No-load Speed(r/min)	Rated Speed(r/min)	Rated Power(kW)	Air Consumption(L/S)
0.4	5500	3000	8.5	100
0.5	5900	3240	11.7	124
0.63	6200	3420	15	150
0.7	6700	3590	20.2	189

Main Features:
1.Widely used in minings, oilfield, constructions, smelting, paper making, pharmacy, chemicals, etc,. This motor is ideal mated driving machine for large-scale drilling machines.
2.Stepless in speed, adjusting air volume to change rotate speed and power.
3.Change air-inlet and air-outlet direction to rotate and counter-rotate the motor in short time, with no impact and even not need to relieve the load.
4.The anti-load function enables the motor to rotate at low speed when overload, and regain high speed when overload relived.
5.Concise structure, compact in size and light in weight, easy to operate and convenient to maintain.
6.Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.
7.High starting torque enables starting with load, fast and reliable to start and stall.
