Multifunctional Hydraulic Drilling Rig Machine for Water

Henan Yugong Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：140-350mm
  • Drill Hole Depth：400m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：drilling rig machine for water
  • Drilling Way：Impactor
  • Type：Crawler
  • Transport Package：Container
  • Specification：5050*2100*2800mm
  • Trademark：YUGONG
  • Origin：Henan, China
  • HS Code：8433901000
  • Production Capacity：100sets,Month

Description

Basic Info.

Model NO. drilling rig machine for water Drilling Way Impactor Type Crawler Transport Package Container Specification 5050*2100*2800mm Trademark YUGONG Origin Henan, China HS Code 8433901000 Production Capacity 100sets/Month

Product Description

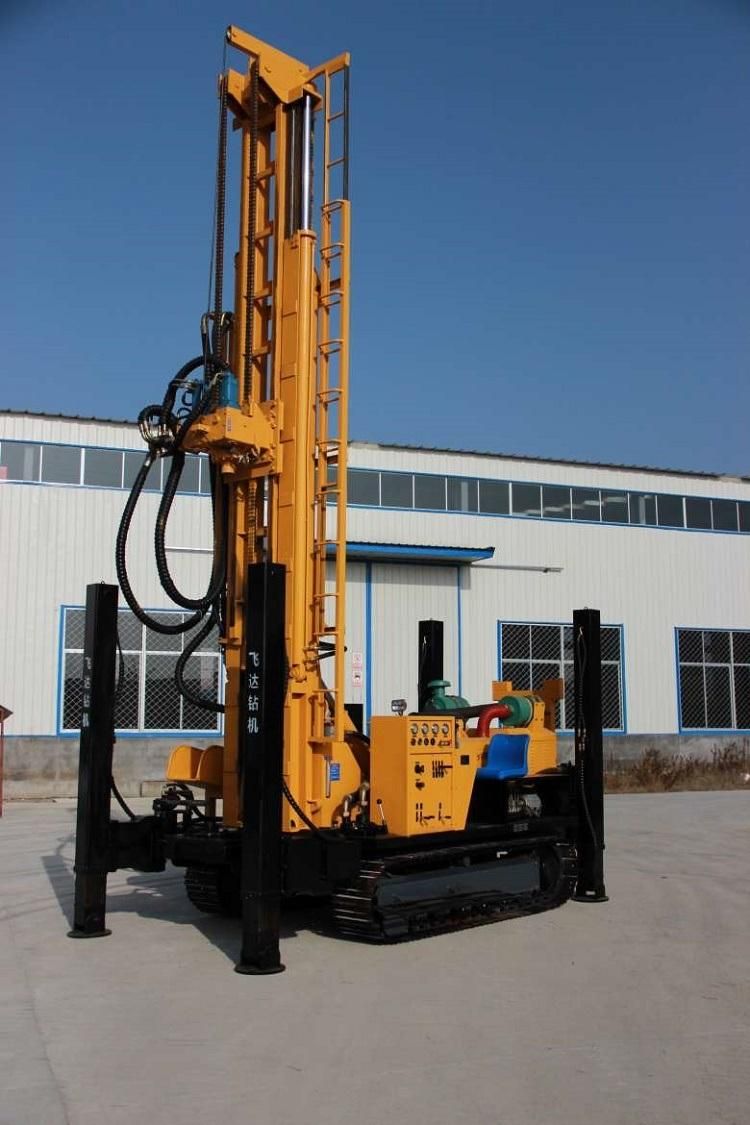

Multifunctional Hydraulic Drilling Rig Machine for Water

Application: widely applied in industrial and civil water well drilling, geothermal well drilling, with large diameter, deep hole, fast speed, flexiable operatoin, high efficiency and other advantages.

Multifunctional Hydraulic Drilling Rig Machine for Water

Main Parameters
Weight: 10T
Dimension: 5050*2100*2800mm
Hope Dia.: 140-350mm
Hole Depth: 400m
Feed Stroke: 6600mm
Walking Speed: 2.5km/h
Min. Distance above the Ground: 250mm
Working Pressure: 1.7-3.5Mpa
Air Consumption: 17-35m³/min
Main Motor Power: 95kw
Rotary Speed: 45-115rpm
Rotary Torque: 8500-10000N.m

Multifunctional Hydraulic Drilling Rig Machine for WaterMultifunctional Hydraulic Drilling Rig Machine for Water
Multifunctional Hydraulic Drilling Rig Machine for Water
