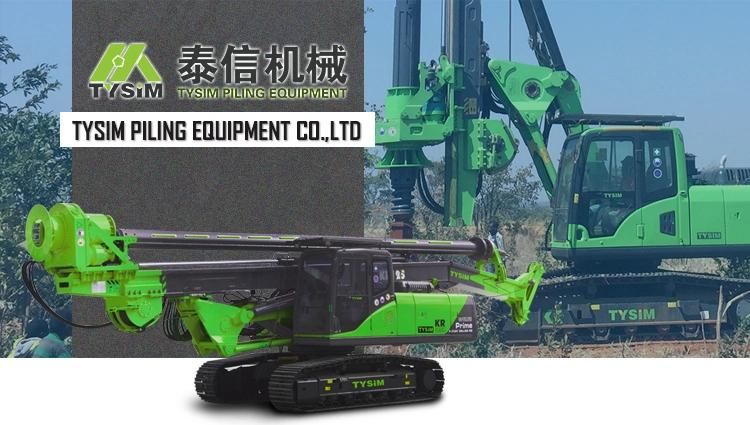

Max Drilling Depth 24m Kr60c Bore Pile Machine Drilling Rig Mini Piling Rig

TYSIM Piling Equipment Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：10-30m
  • Drilling Way：Rotary
  • Type：Crawler

Base Info

  • Model NO.：KR60C
  • Torque：60 Kn.M
  • Max. Diameter：1000 mm
  • Max. Drilling Depth：16 M(Lock), 20 M(Friction Kelly Bar)
  • Max. Crowd Pressure：90 Kn
  • Max. Crowd Pull：100 Kn
  • Main Winch Line Pull：80 Kn
  • Operating Height：11200 mm
  • Operating Width：2490mm

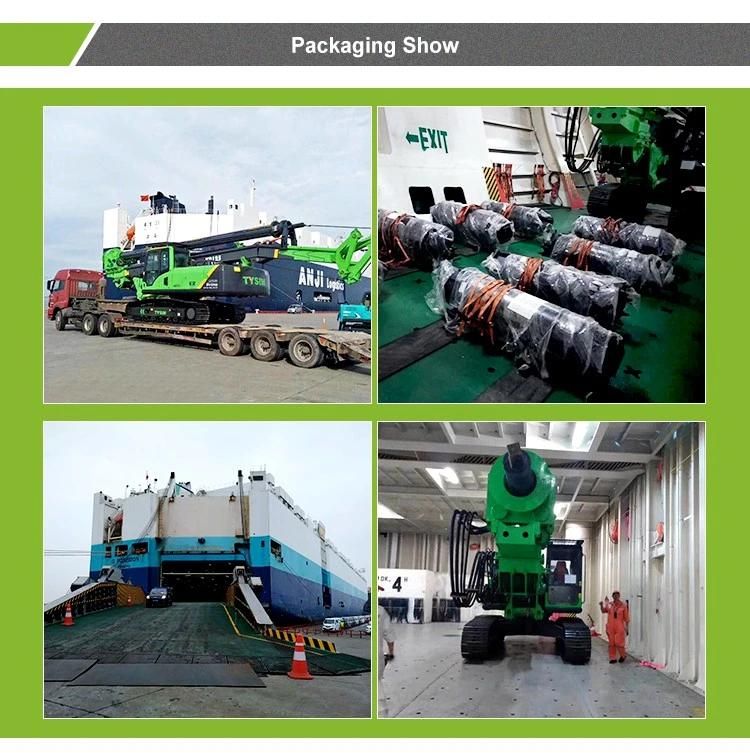

  • Transport Package：Bulk Pack
  • Specification：22 t
  • Trademark：tysim
  • Origin：Jiangsu, China
  • HS Code：8430412900
  • Production Capacity：30pieces,Month

Description

Basic Info.

Model NO. KR60C Torque 60 Kn.M Max. Diameter 1000 mm Max. Drilling Depth 16 M(Lock)/ 20 M(Friction Kelly Bar) Max. Crowd Pressure 90 Kn Max. Crowd Pull 100 Kn Main Winch Line Pull 80 Kn Operating Height 11200 mm Operating Width 2490mm Transport Package Bulk Pack Specification 22 t Trademark tysim Origin Jiangsu, China HS Code 8430412900 Production Capacity 30pieces/Month

Product Description

Max Drilling Depth 24m Kr60c Bore Pile Machine Drilling Rig Mini Piling Rig
Technical Specification
TypeKR60C
Torque60 KN.m
Max. diameter1000 mm
Max. drilling depth16 m(Lock)/ 20 m(Friction kelly bar)
Speed of rotation8~30 rpm
Max. crowd pressure90 kN
Max. crowd pull100 kN
Main winch line pull80 kN
Main winch line speed70 m/min
Auxiliary winch line pull30 kN
Auxiliary winch line speed40 m/min
Stroke(crowd system)3200 mm
Mast inclination(lateral)±3°
Mast inclination(forward)4°
Max. operating pressure35 MPa
Pilot pressure4.1MPa
Travel speed3km/h
Traction force114 kN
Operating height11200 mm
Operating width2490mm
Transport height3300 mm
Transport width2490 mm
Transport length9970mm
Overall weight22 t
Max Drilling Depth 24m Kr60c Bore Pile Machine Drilling Rig Mini Piling Rig

Max Drilling Depth 24m Kr60c Bore Pile Machine Drilling Rig Mini Piling Rig

Max Drilling Depth 24m Kr60c Bore Pile Machine Drilling Rig Mini Piling Rig

Max Drilling Depth 24m Kr60c Bore Pile Machine Drilling Rig Mini Piling RigMax Drilling Depth 24m Kr60c Bore Pile Machine Drilling Rig Mini Piling Rig
Max Drilling Depth 24m Kr60c Bore Pile Machine Drilling Rig Mini Piling Rig
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is an year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
