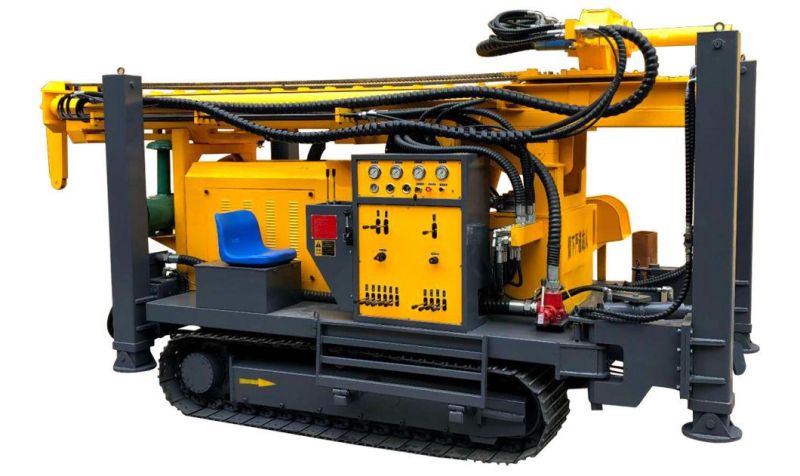

• Model NO.：GL-350S
• Drilling Way：Rotary
• Type：Crawler
• Max.Rotation Torque：7000-9000nm
• Drilling Efficiency：10-35m,H
• Travel Speed：3.5km,H
• Grade Ability：30°
• Weight：9t
• Diesel Engine：93kw(Yuchai )
• Drilling Method1：Top Hammer Hydraulic Rotating and Feeding
• Drilling Method2：Down The Hole Hammer or Mud Pump Drilling
• Working Pressure：1.05-3.45MPa
• Air Consumption：16-55m3,Min
• Drill Pipe Length：3m,4.5m,6m
• Drill Pipe Dia.：89mm,102mm
• Axial Pressure：4t
• Lifting Force：22t
• Lifting Speed：3.0m,Min
• Transport Package：Standard Packing
• Specification：5.6x2x2.45m
• Trademark：Glorytek
• Origin：Beijing, China
• HS Code：8430412100
• Production Capacity：20sets , Month

Technical ParameterMax. Drilling Depth350mDrilling Hole Dia.105-300mmWorking Pressure1.05-3.45MpaAir Consumption16-55m3/minDrill Pipe Length3m,4.5m,6mDrill Pipe Dia.89mm/102mmAxial Pressure4TLifting Force22TLifting Speed3.0m/minPush Speed0.5-5m/minFast lifting Speed30m/minMax.Rotation Torque7000-9000NmRotation Speed60-100r/minWorking Hoist Lifting Force1.5TMud Pump Flow Rate20L/min (optional)High Pressure Hydraulic Legs Stroke1.5mDrilling Efficiency10-35m/hTravel Speed3.5Km/hGrade ability30°Weight9TDimension5.6x2x2.45mDiesel Engine93KW(Yuchai )Application formationloose layer or bedding rockDrilling MethodTop Hammer Hydraulic Rotating and feeding,Down the hole hammer or mud pump drilling

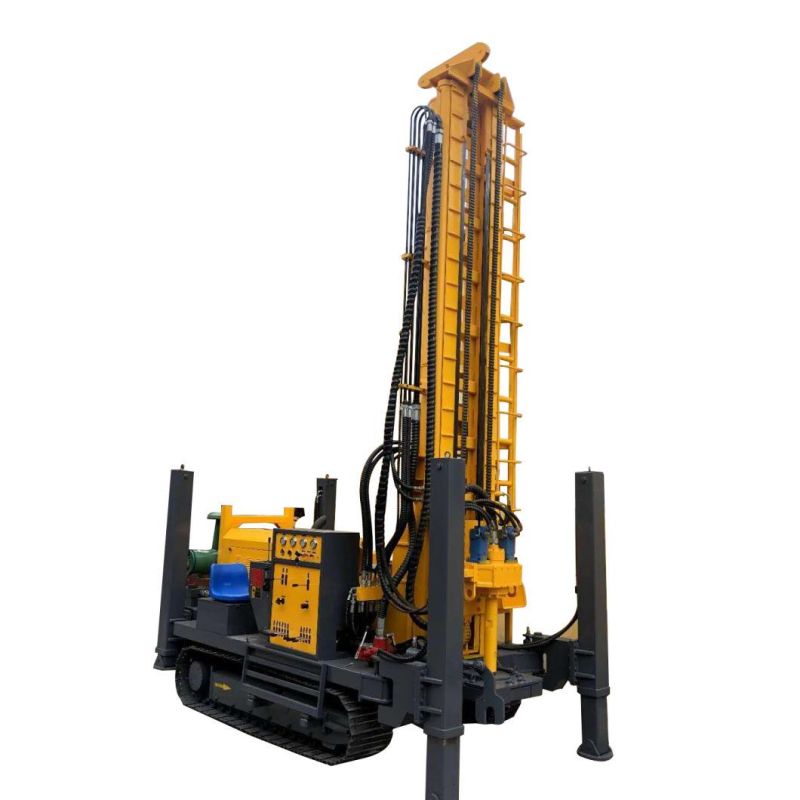

2- Structure Features:

1 - Diesel engine-driving hydraulic system. Travel, rotate, feed, hoist, land, lift, unload, and so on all are run by Hydraulic components.
2 - Working unit consists of feed system, slide guide(mast),top-driving rotary head, slide plate, centering apparatus, unloading system, hoisting system, etc.
3 - Axial pressure, feed speed and rotation speed are adjustable.
4 - Crawler self-driven structure travel mode, easy to move. Use crawler chassis. Steel track link(Inlaying rubber block is in option which is easy to travel on city streets)
5 - During operation, four hydraulic landing legs will adjust the rig body level and stability.
6 - Four extra high landing legs are available, during long-distance transportation loaded with vehicle, it can be moved onto the vehicle directly and easy for transportation, no need to be loading or lifting.
7 - Auxiliary hoist can list items within 1 ton (such as drilling tools, tools, etc), and also help to load or unload drill rod and drill tools.
8 -The slide guide can be fixed with the body during operation in order to improve the operating stability of the mast.
9 - Level instrument and dedicated centering apparatus ensure the perpendicularity and accuracy of the drilling hole.
10 - Compressed-air system provides special oil mist lubricator to lubricate the impactor and longer the serving life of it.

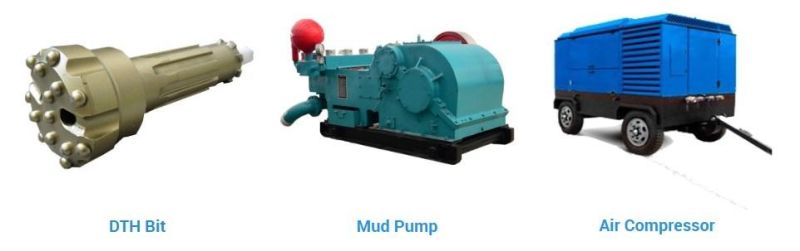

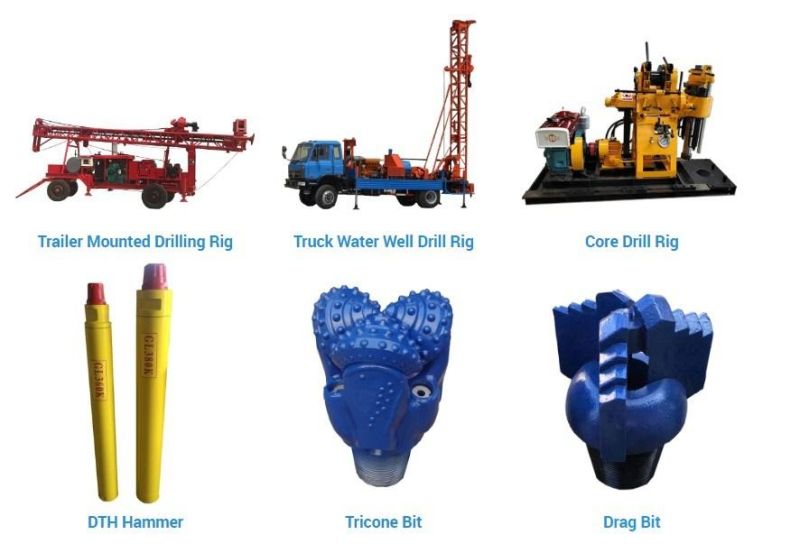

Related Products
We can also supply other drilling rig, drilling equipment and drilling tools, such as Trailer Mounted Drilling Rig, Truck Water Well Drill Rig, Core Drill Rig, Mud Pump, Air Compressor, DTH Hammer, Tricone Bit, Drag Bit, DTH Bit, etc.

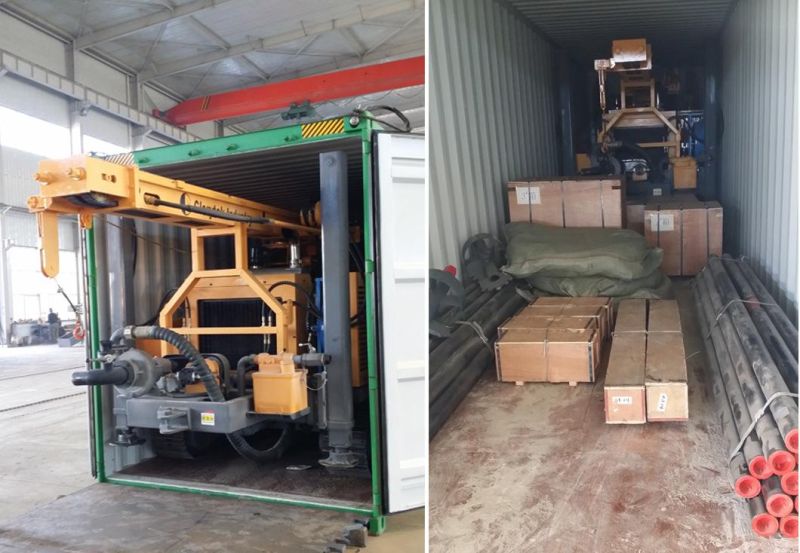

Packing and Transport

Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.

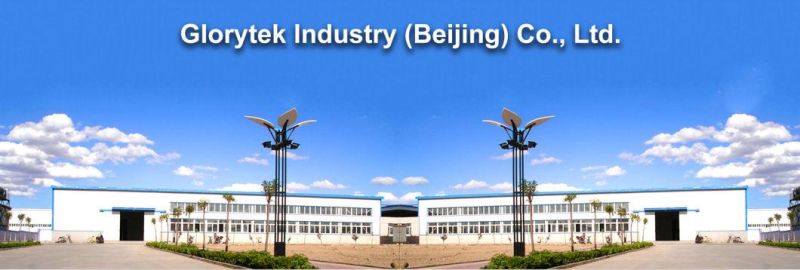

Company Profile



Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.


Exhibition



Certifications



Customer Photos



After-sale Warranty

(1) Within the period of the first year after delivery, the main parts of Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.

(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.

(3)Timely after-sale assistance shall be provided all the time.

FAQ

Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
