Borehole Crawler Hydraulic DTH Water Well Drilling Rig with Compressor

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：140-254mm
  • Drill Hole Depth：180m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor

Base Info

  • Model NO.：FYX180
  • Rock Hardness：F=6~20
  • Walking Speed：2.5km,H
  • Working Pressure：1.7-2.5MPa
  • Air Consumption：15-27m3
  • Weight：4500kg
  • Power：55kw
  • Rotational Speed：48-70rpm
  • Rotational Torque：4200-5600n.M
  • Transport Package：Nude Packing
  • Specification：3800*1500*2200mm
  • Origin：China
  • HS Code：8432412200
  • Production Capacity：300sets,Month

Description

1.5  2.0  3.0

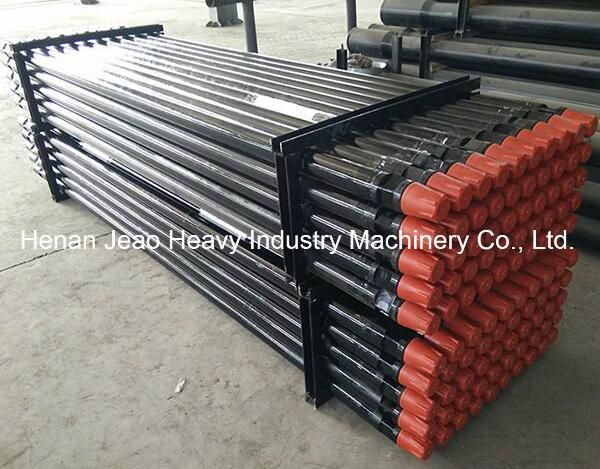

Drill Rod
Borehole Crawler Hydraulic DTH Water Well Drilling Rig with Compressor

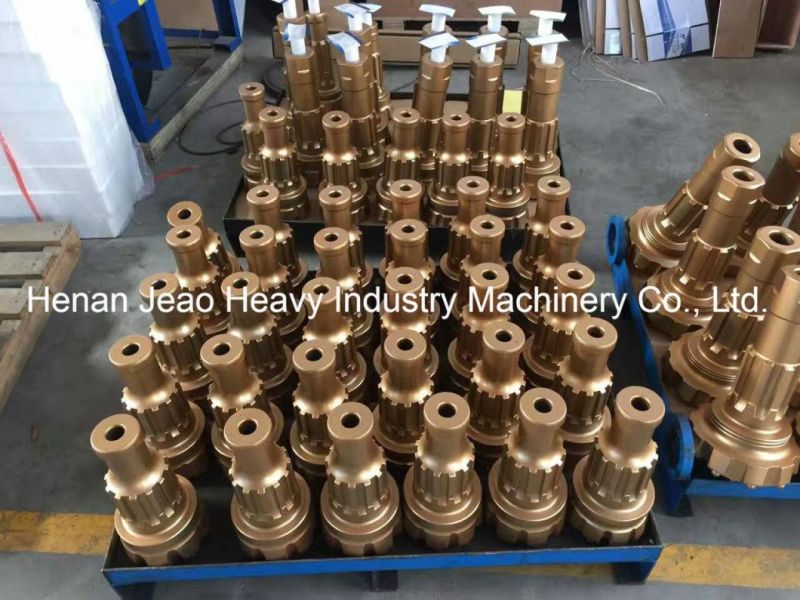

DTH Drill Bit
Borehole Crawler Hydraulic DTH Water Well Drilling Rig with Compressor
DTH Hammer
Borehole Crawler Hydraulic DTH Water Well Drilling Rig with Compressor
