• Model NO.：ZGYX-430-1
• Rock Hardness：F=6~20
• Working Pressure：0.7-2.5 MPa
• Air Consumption：8-20m3
• Rotation Torque：3500n.M
• Rotate Speed：100rpm
• Feed Force：20kn
• Pull Force：45kn
• Walking Speed：3km,H
• Gradient：30°
• Weight：6500kg
• Transportation Size：7370*2360*2560mm
• Transport Package：Nude Packing
• Trademark：ZHIGAO
• Origin：China
• HS Code：8432412200
• Production Capacity：300sets,Month

Basic Info.

Model NO. ZGYX-430-1 Rock Hardness F=6~20 Working Pressure 0.7-2.5 MPa Air Consumption 8-20m3 Rotation Torque 3500n.M Rotate Speed 100rpm Feed Force 20kn Pull Force 45kn Walking Speed 3km/H Gradient 30° Weight 6500kg Transportation Size 7370*2360*2560mm Transport Package Nude Packing Trademark ZHIGAO Origin China HS Code 8432412200 Production Capacity 300sets/Month

Product Description

Product Description:

Committed to the needs of green mining, Zhigao machinery developed this model of low cost high performance, eco- friendly, safa, compact & high efficiency separated DTH drill rig, widely used in various surface mines, quarries & construction work sites, etc.

High preesure oil pump for various hole sizes and working conditions.

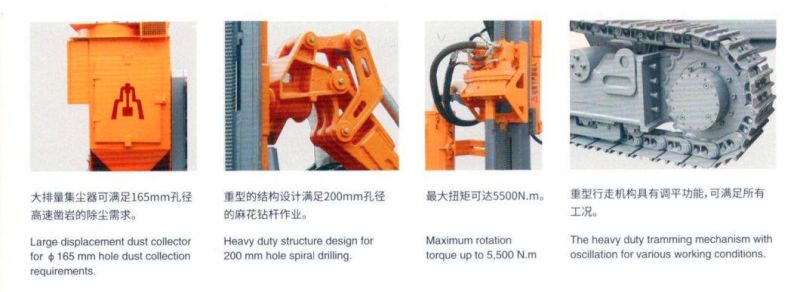

Maximum rotation torque up to 5000 N.m as option for foundation bolting and anchoring ,casing and large hole spiral drilling.

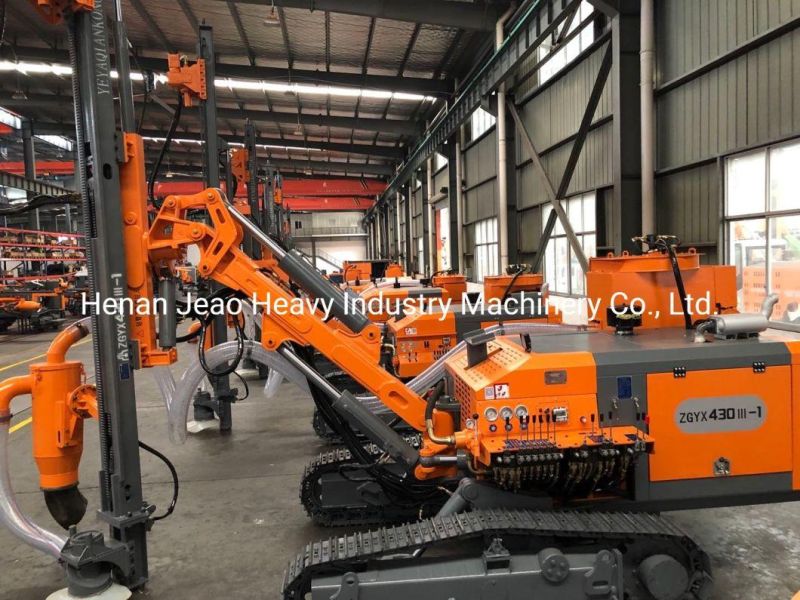

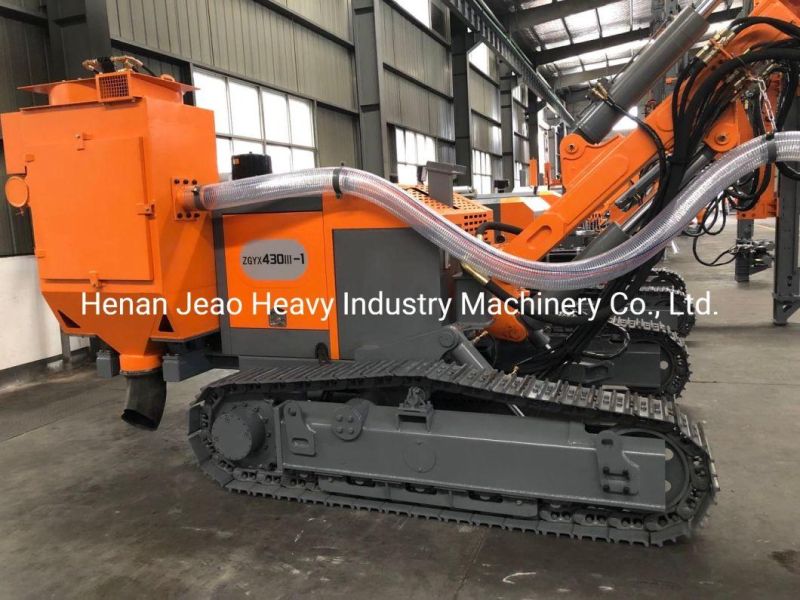

Specification for Blasthole Drill Rig for Sale ZGYX-430 Bore Hole DTH Drilling Rig for Hard Rock

Model No	ZGYX-430 /430-1
Rock hardness	F=6-20
Hole diameter	110-165mm
Economic Drill depth	30m
Rotating speed	0-100r/min
Rotary torque	3500N.m
Feed force	20000N
Pull up force	45000N
Propulsion Type	Cylinder-Chain
Walking speed	0-3km/h
Grade ability	30°
Net weight	6500KGS
Dimension	7370*2360*2560mm
Diesel Engine	58/ 73.5Kw,2400r/min)
Drill rod specification(mm)	76×3000mm
Hammer	4"/5"
Working pressure	0.7-2.5MPa
Air consumption	8-20M3/min
Remark	Pneumatic-Hydraulic
Dust collection	Standard equipment
Model No
ZGYX-430	58Kw Yuchai YC4DK-80
ZGYX-430-1	73.5 Kw Yuchai YC4D-100
