Pneumatic Wagon DTH Rock Blast Rock Drilling Rig (30m & 110-152mm)
Henan Jeao Heavy Industry Machinery Co., Ltd.- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：110-152mm
- Drill Hole Depth：30m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
Base Info
- Model NO.：ZGYX-425-1
- Rock Hardness：F=6~20
- Rotation Speed：3200n.M
- Rotation Force：100rpm
- Feed Force：20kn
- Pull up Force：45kn
- Power：58,73.5kw
- Drill Rod：76*3000mm
- Drill Bit：110mm
- Hammer：4,5"
- Weight：6000kg
- Applictation：Open Pit Mining, Quary and Construction Work
- Transport Package：7000*2250*2700mm
- Origin：China
- HS Code：8430490000
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. ZGYX-425-1 Rock Hardness F=6~20 Rotation Speed 3200n.M Rotation Force 100rpm Feed Force 20kn Pull up Force 45kn Power 58/73.5kw Drill Rod 76*3000mm Drill Bit 110mm Hammer 4/5" Weight 6000kg Applictation Open Pit Mining, Quary and Construction Work Transport Package 7000*2250*2700mm Origin China HS Code 8430490000 Production Capacity 100sets/MonthProduct Description
Product Description:Committed to the needs of green mining, Zhigao machinery developed this model of low cost high performance, eco- friendly, safa, compact & high efficiency separated DTH drill rig, widely used in various surface mines, quarries & construction work sites, etc.
This model is the new generation of Zhigao classic priduct series, with the collective advantages of various different models, this machine with hole range of 110-152mm and new enclosure design, and oscillation, ZGYX-425 product series has excellent stability and outstanding appearance in the same class of products

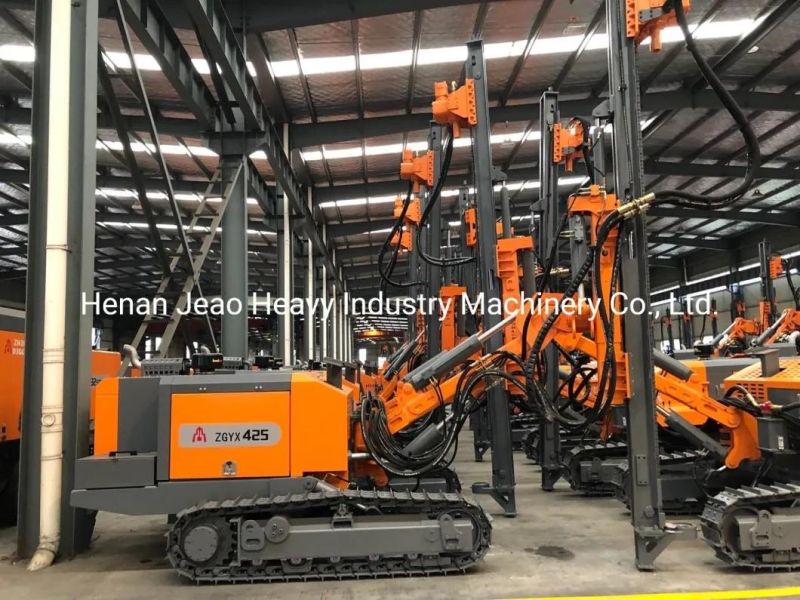

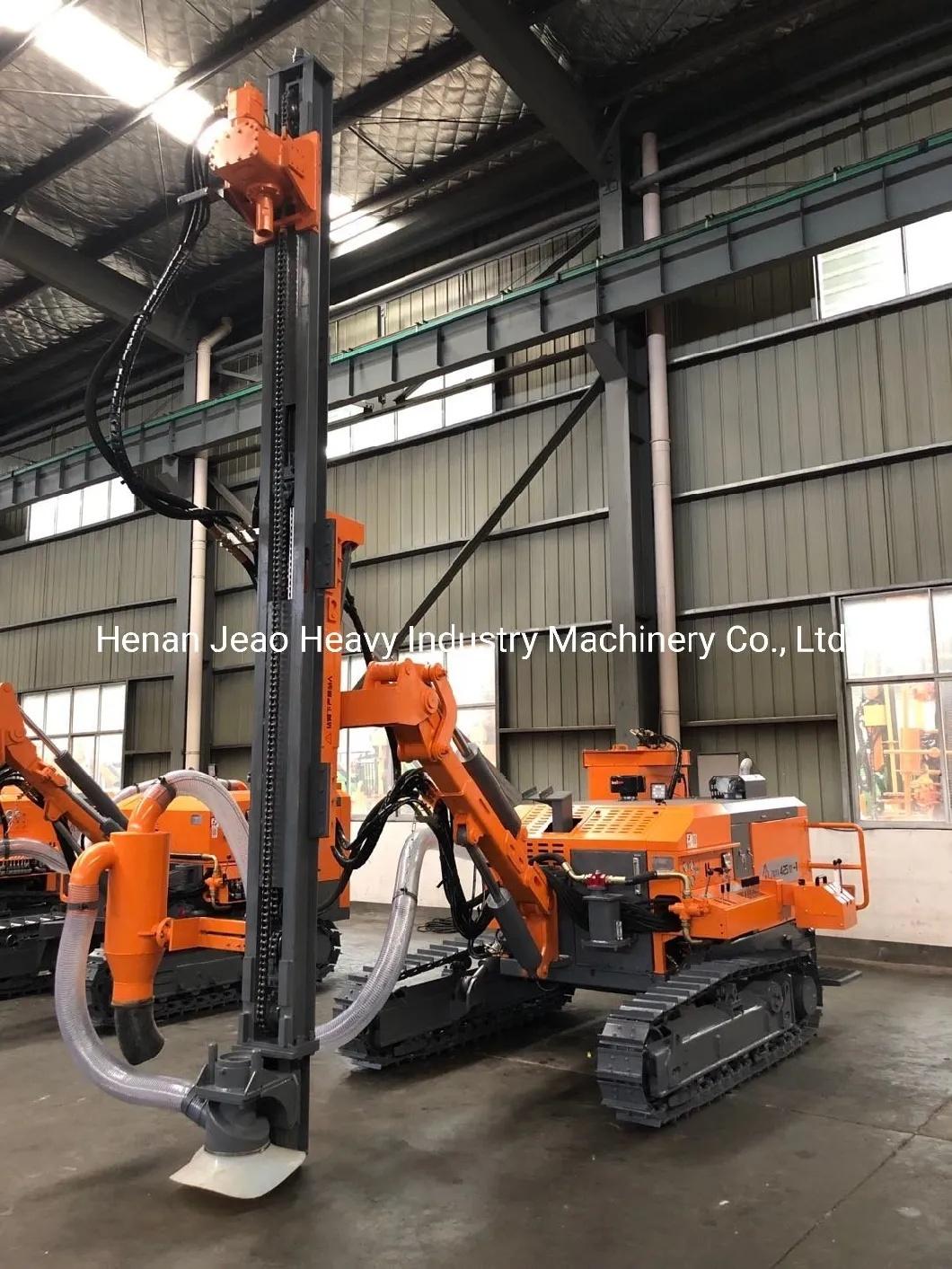

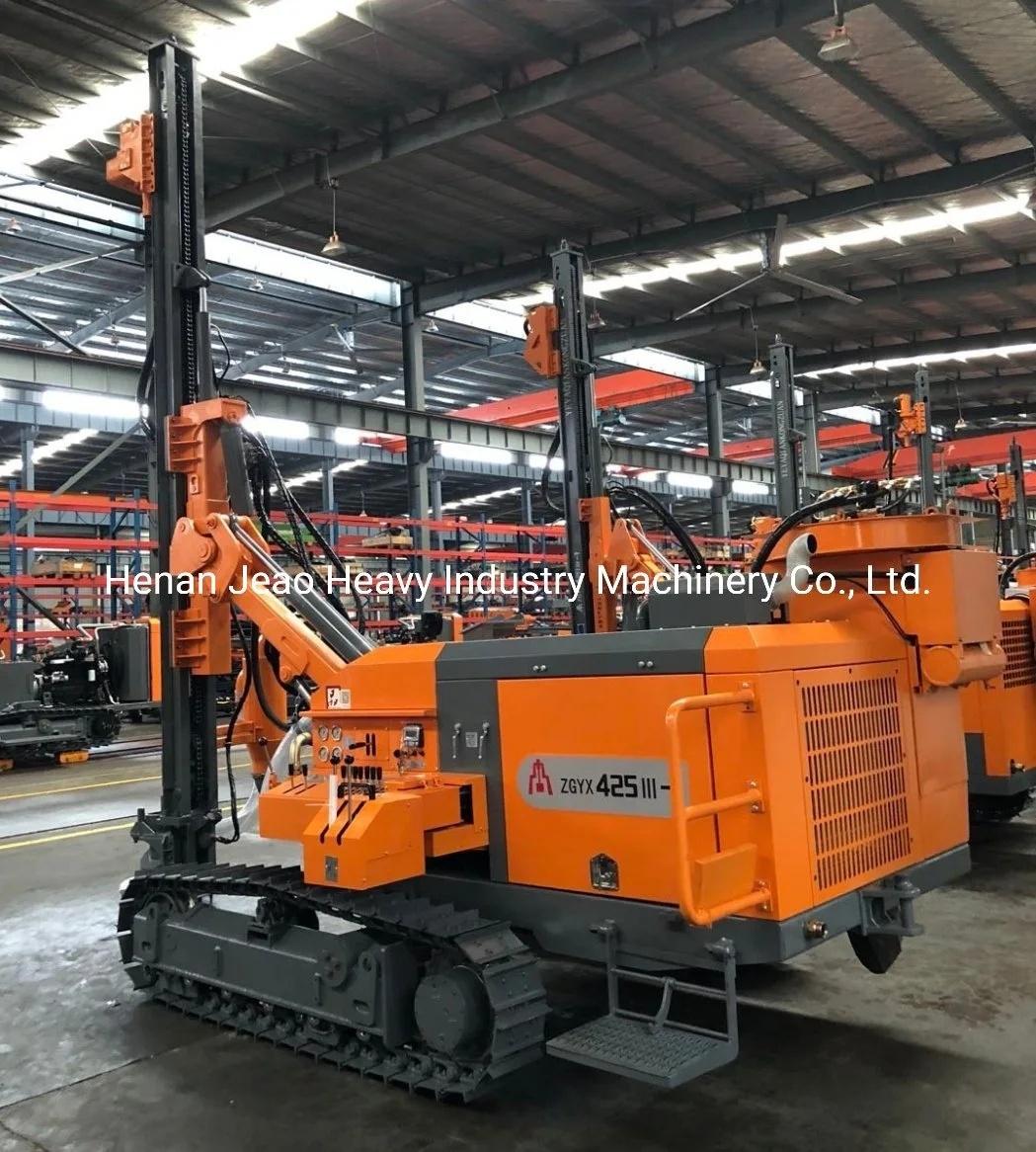

ZGYX-425/ 425-1 Pneumatic Wagon DTH Rock Blast Rock Drilling Rig
Specification for ZGYX-425/ 425-1 Pneumatic Wagon DTH Rock Blast Rock Drilling Rig
| Model No | ZGYX-425/ 425-1 |
| Rock hardness | F=6-20 |
| Hole diameter | 110-152mm |
| Economic Drill depth | 30m |
| Rotating speed | 0-100r/min |
| Rotary torque | 3200N.m |
| Feed force | 20000N |
| Pull up force | 45000N |
| Propulsion Type | Cylinder-Chain |
| Walking speed | 0-2.5km/h |
| Grade ability | 30° |
| Net weight | 6000KGS |
| Dimension | 7000*2250*2700mm |
| Diesel Engine | 58/ 73.5Kw,2400r/min) |
| Drill rod specification(mm) | 76×3000mm |
| Hammer | 4"/5" |
| Working pressure | 0.7-2.5MPa |
| Air consumption | 8-20M3/min |
| Remark | Pneumatic-Hydraulic |
| Dust collection | Standard equipment |
| Model No | |
| ZGYX-425 | 58Kw Yuchai YC4DK-80 |
| ZGYX-425-1 | 73.5 Kw Yuchai YC4D-100 |
