• Model NO.：DR-160
• Type：Crawler or Wheel
• Usage：Pile Driver, Drill Hole Flling Pile Construction
• Engine：Cummins
• Drilling Diameter：500-1800mm
• Power Source：Diesel
• Brand：Dingli Heavy Industry
• Depth：40m
• Color：Customized
• Drill Rod：Kelly Bar
• Drill Tools：500-1800mm Drill Bit
• Chassis Length：4800mm
• Track Width：600mm
• Transport Status Width：2800mm
• Engine Rated Power：176kw
• Power Head Speed：160kn.M
• Working State Width：4200mm
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：12500mm*2800mm*3550mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-160 Type Crawler or Wheel Usage Pile Driver, Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1800mm Power Source Diesel Brand Dingli Heavy Industry Depth 40m Color Customized Drill Rod Kelly Bar Drill Tools 500-1800mm Drill Bit Chassis Length 4800mm Track Width 600mm Transport Status Width 2800mm Engine Rated Power 176kw Power Head Speed 160kn.M Working State Width 4200mm Transport Package Rotary Drilling Rig Package According to The Custo Specification 12500mm*2800mm*3550mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

The drilling depth of the drilling rig can reach 40M, and the drilling diameter is 500-1800 mm. The company is a production research and development enterprise and supports OEM customization of such products. Ensure the safety and efficiency of construction operations. The pile driver is equipped with two main and auxiliary winches. The main winch is used to lift and lower the drill pipe, and the auxiliary winch is used to assist in hoisting construction equipment and materials.



Parameter


Product Type	DR-160
Chassis length(mm)	5100
Track width(mm)	6700
Overall height(M)	3.95
Machine weight(t)	36
Maximum drilling depth(M)	45
Drilling diameter(mm)	600-1800
Engine rated power(KW/rpm)	191KW
Maximum torque of power head(N.m)	160000(optionl)
Power head speed rpm	50-70
Power head can be customized	YES
Drill mast	±5
Pitch angle	5
Maximum travel speed of chassis(KM/h)	4
Maximum creep degree of chassis	30
Maximum travel torque(N.m)	61000
Working state width(mm)	3300
Transport status width(mm)	3000
Transport status height(mm)	3950

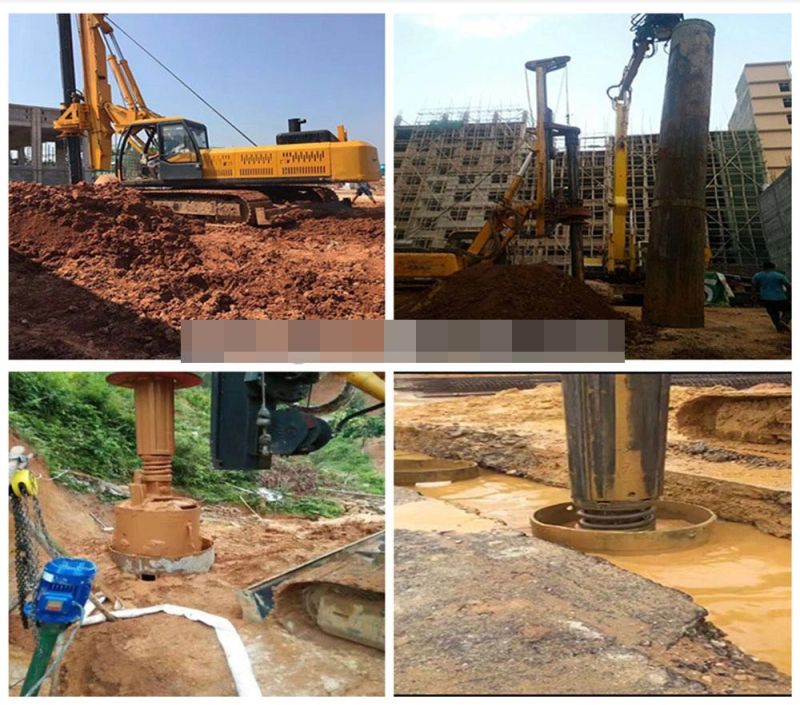

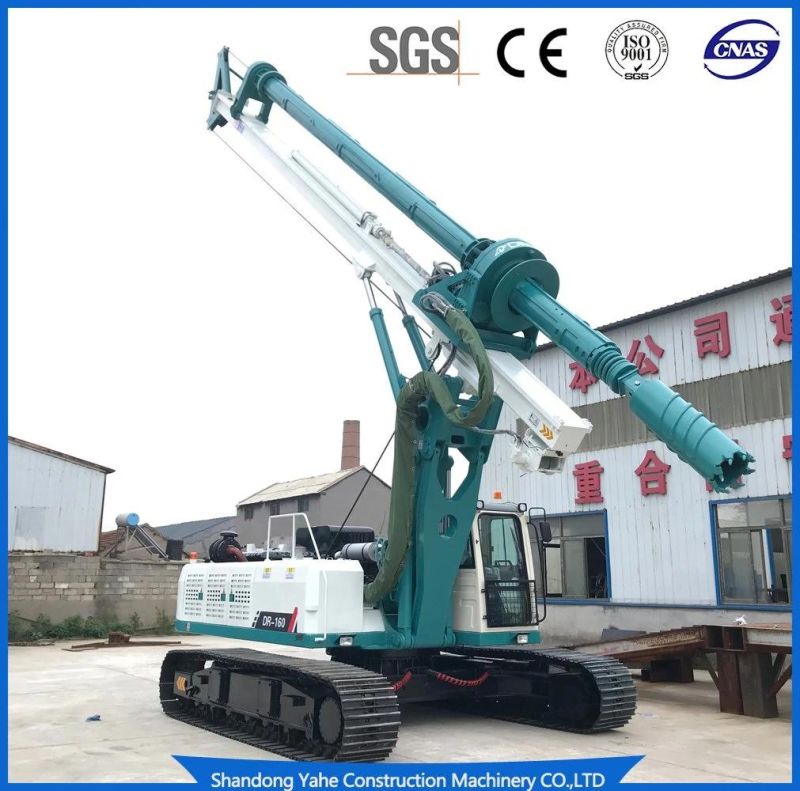

Machine Photos

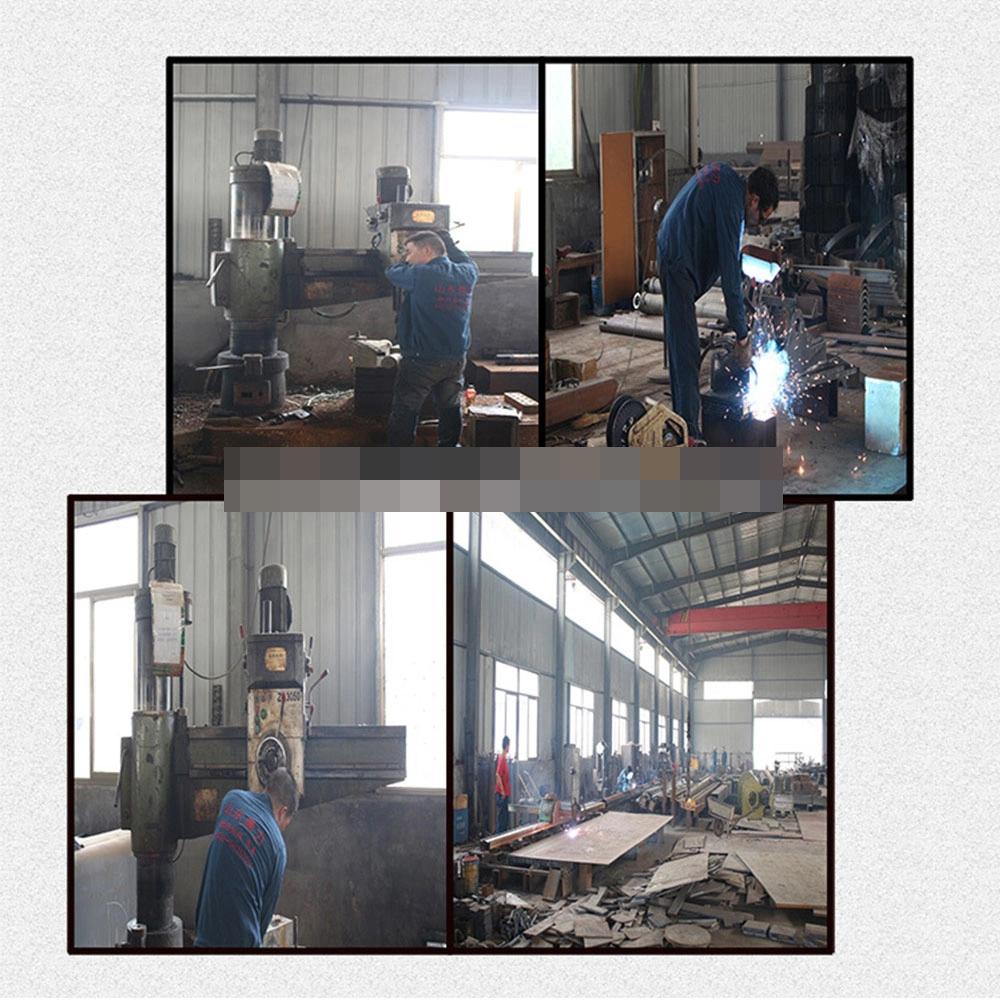

Company profile
Shandong Yahe Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering.






Certification








 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
