Mqt 110 Portable Hand Pneumatic Roof Bolter/Pneumatic Roof Bolter
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Certification：CE, TUV, BV
- Condition：New
- Motor：Pneumatic
- Drill Hole Diameter：<100mm
- Drill Hole Depth：<100m
- Bit Type：Rock Anchor Bolt
Base Info
- Model NO.：MQT
- Drilling Way：Rotary
- Working Air Pressure：0.4-0.63 MPa
- Free Running Speed：600 Rpm
- Static Torque：200nm
- Working Air Pressuretmpat0.4-0.63 Free：0.5MPa
- Rated Rotate Speed：190rpm
- Rated Torque：120nm
- Power Output：2.1-2.8kw
- Air Consumption：3.5m3,Min
- Maximum Push Force：8.2kn
- Flushing Water Pressure：0.6-1.2MPa
- Transport Package：Carton Box, Plastic Bagsor as Your Payment
- Specification：CE, SGS
- Trademark：China Coal
- Origin：China
- HS Code：8530800000
- Production Capacity：1000 Sets Per Month
Description
Basic Info.
Model NO. MQT Drilling Way Rotary Working Air Pressure 0.4-0.63 MPa Free Running Speed 600 Rpm Static Torque 200nm Working Air Pressuretmpat0.4-0.63 Free 0.5MPa Rated Rotate Speed 190rpm Rated Torque 120nm Power Output 2.1-2.8kw Air Consumption 3.5m3/Min Maximum Push Force 8.2kn Flushing Water Pressure 0.6-1.2MPa Transport Package Carton Box, Plastic Bagsor as Your Payment Specification CE, SGS Trademark China Coal Origin China HS Code 8530800000 Production Capacity 1000 Sets Per MonthProduct Description
Introduction of MQT 110 Portable Hand Pneumatic Roof Bolter
MQT 110 Portable Hand Pneumatic Roof Bolter is widely used in underground coal mining, applicable to support with cable or bolt in coal laneway, half-coal laneway and rock laneway with rock hardness no more than 100MPa.Advantages of MQT 110 Portable Hand Pneumatic Roof Bolter
MQT 110 Portable Hand Pneumatic Roof Bolter combined with drilling, mixing and assembling.Dual exhaust model and new seals structure ensure the fast and smooth leg expansion and retraction.
The unique silencer reduces noise, drilling shaft and leg center are perfect alignment, drilling stably.
Technical Parameters of MQT 110 Portable Hand Pneumatic Roof Bolter
| Parameter | Unit | MQT110 | MQT120 | MQT130 |
| Stress range | Mpa | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 |
| Rated pressure | Mpa | 0.5 | 0.5 | 0.5 |
| Rated torque | n.m | 110 | 120 | 130 |
| Rated speed | r/min | ≥230 | ≥200 | ≥180 |
| Maximum output power | KW | ≥2.4 | ≥2.6 | ≥3.0 |
| Maximum load torque | n.m | ≥180 | ≥220 | ≥260 |
| starting torque | n.m | ≥170 | ≥180 | ≥230 |
| Load gas consumption | m³/min | ≤3.8 | ≤4.2 | ≤4.4 |
| Maximum speed of revolution | r/min | 620 | 500 | 460 |
| Weight | Kg | 48 | 52 | 54 |

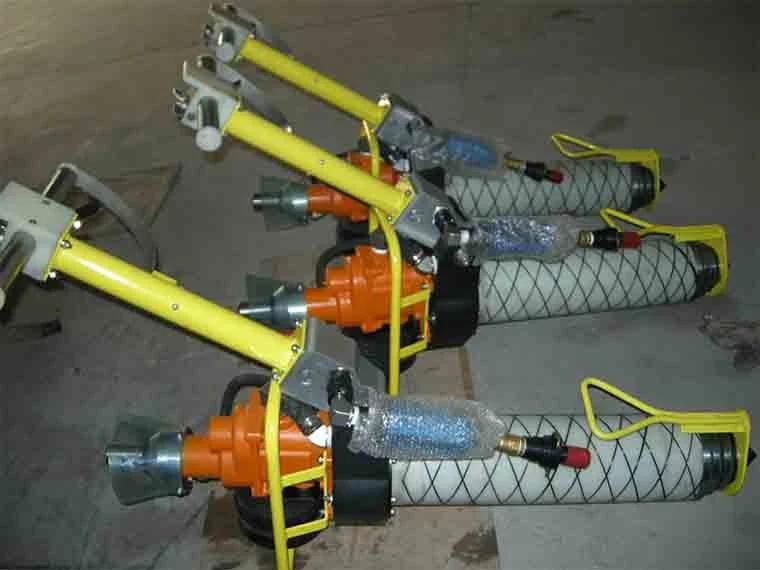

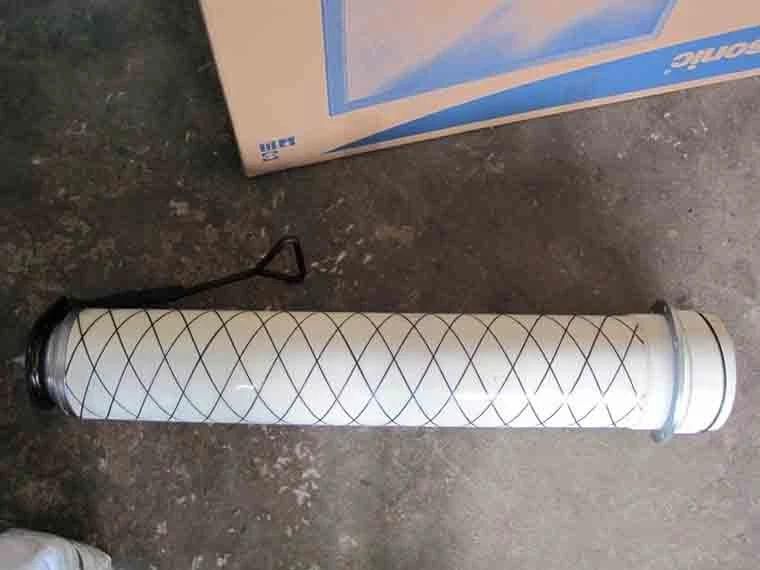

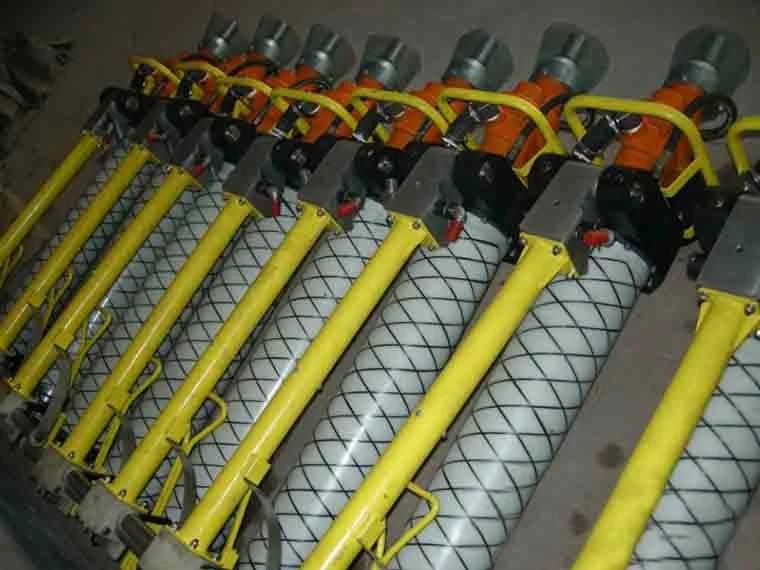

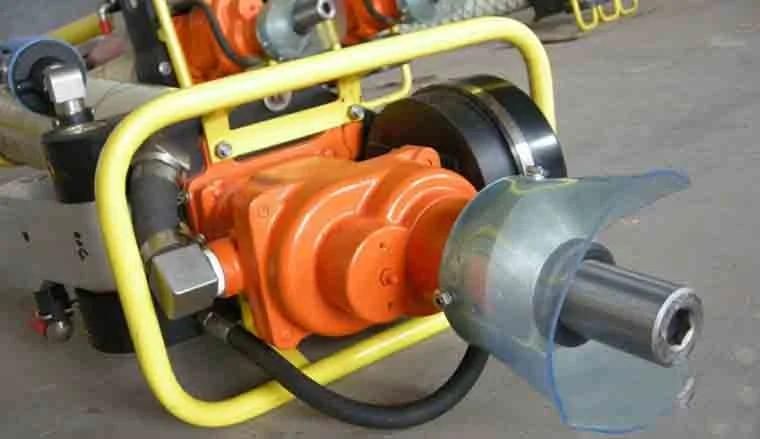

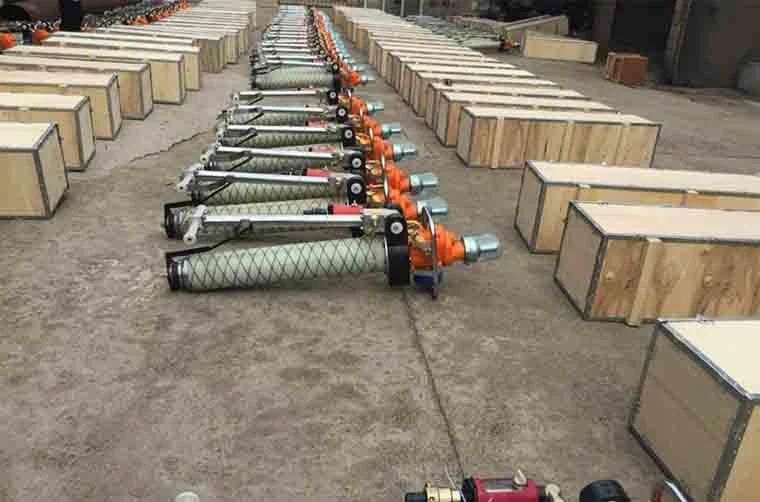

Pictures of MQT 110 Portable Hand Pneumatic Roof Bolter
