• Model NO.：HF385Y
• Drilling Way：Impactor
• Pipe Diameter：76mm,89mm
• for Rock：F=6-20
• Bore Diameter(Screw)：Max 400mm
• Screw Pipe Diameter：130-400mm
• Once Promotion：3200mm
• Host Power：84kw
• Rotation Speed：0-110r,Min
• Dimension(L*W*H)：5300*1970*2620mm
• Transport Package：in 40 Feet Container
• Specification：CE, ISO
• Trademark：Hanfa
• Origin：Zhengzhou City, China
• Production Capacity：20sets ,Month

Air pressure0.7-1.6Mpa(medium)1.6-2.46Mpa(high)Pipe diameter76mm/89mmFor rockF=6-20Bore diameter(screw)Max 400mmBore depth0-30mScrew pipe diameter130-400mmOnce promotion3200mmSkid pitch120°Swinging angle of drilling boomLeft and right total 50°Swinging angle of skidLeft and right total 40°Rotation speed0-110r/minHost power84KwClimb ability35°Dimension(L*W*H)5300*1970*2620mmWeight5800KgWalk speed0-2.5km/h

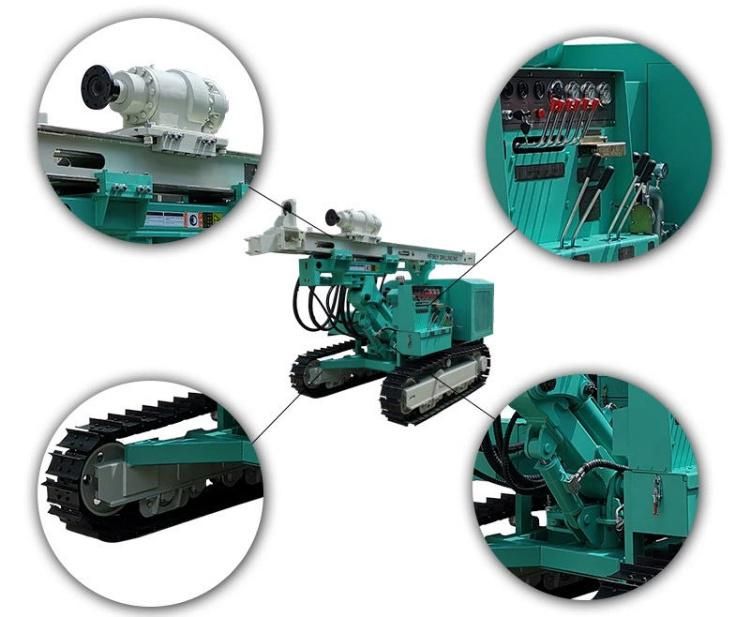

Product Display

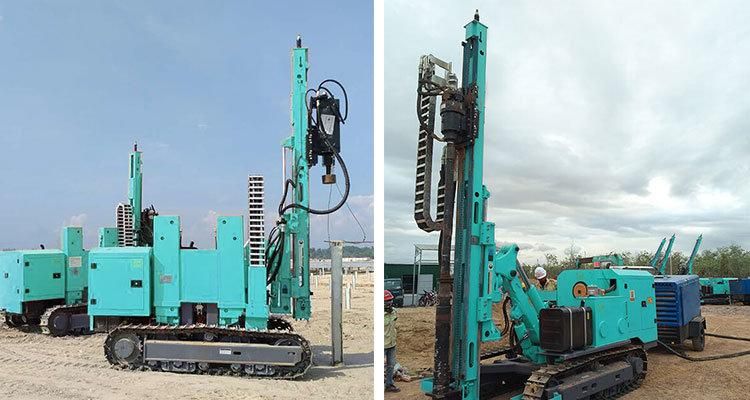

Working Site

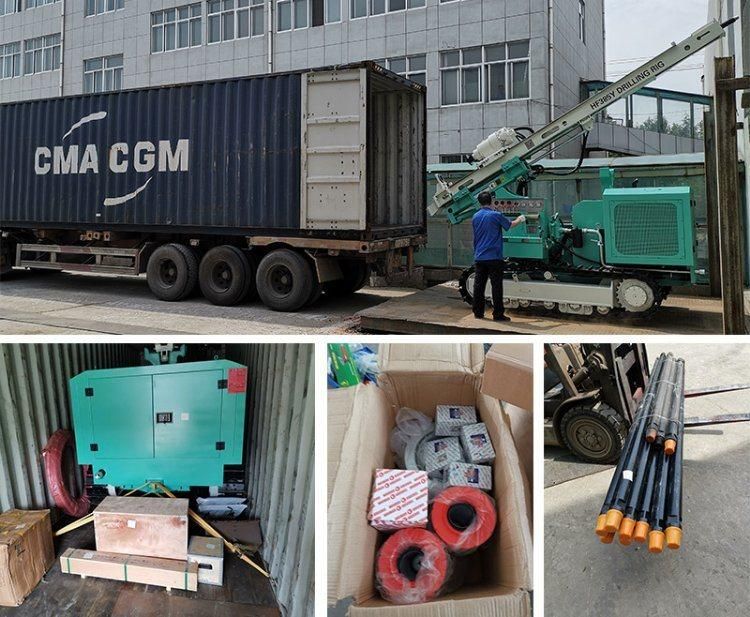

Delivery

We will follow the normal and safe packing and transportation to ensure the safe arrival of the goods.We export to many countries, has rich experience in loading the drilling rig, export standard containers are 20GP, 40GP, 40HQ container, or FR in the case of bulk parts



Company Introduction

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.


1. More than 20 years experience

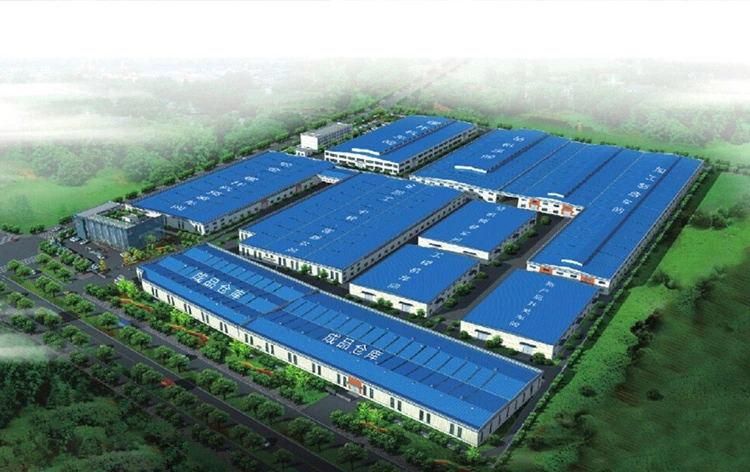

The factory is located in Henan Province, China. We are very welcome to visit our factory. If you need it, we will arrange a pick-up.

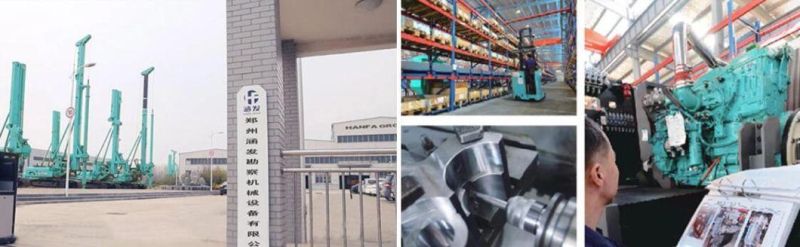

2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.




Our Customers
