New Condition Borehole Crawler Diesel Drilling Rigs for Sales

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Condition：New
  • Drill Hole Diameter：90-130mm
  • Drill Hole Depth：25-30
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Rock Hardness：F=6~20

Base Info

  • Model NO.：HC726A1
  • Walking Speed：2.5km,H
  • Working Pressure：0.7~1.6 MPa
  • Air Consumption：7-15m3
  • Rotate Speed：0-70rpm
  • Drill Rod：76*3000mm
  • Drill Bit：90mm
  • Hammer：930
  • Size：5260*2045*1950mm
  • Weight：4200kg
  • Transport Package：Nude Packing
  • Trademark：HONGWUHUAN
  • Origin：China
  • HS Code：8432412200
  • Production Capacity：300sets,Month

Description













Whole MachineTo adapt to the rock hardness6~25diameter of bore90~130Economic drill deepth25Stand-alone gradeability30Propulsion modeoil cylinderFeeding stroke(m)3250Maximum lift capacity15Rotary torque1300Rotary speed30~90Work pressure0.7~1.6Air consumption7~15Main Power40Drill arm horizontal pendulum AngleLeft35/Right35Walking speed(km/h)2.5Ground clearance300Dimensions5200*100*2000Weight(kg)4200

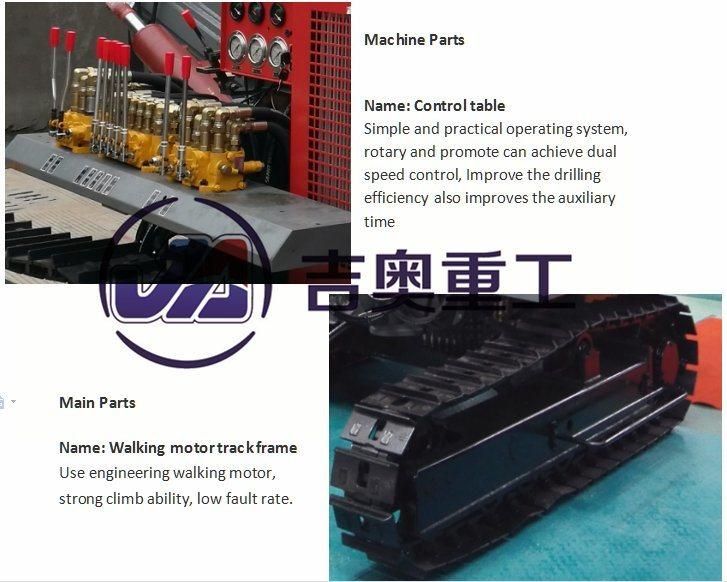

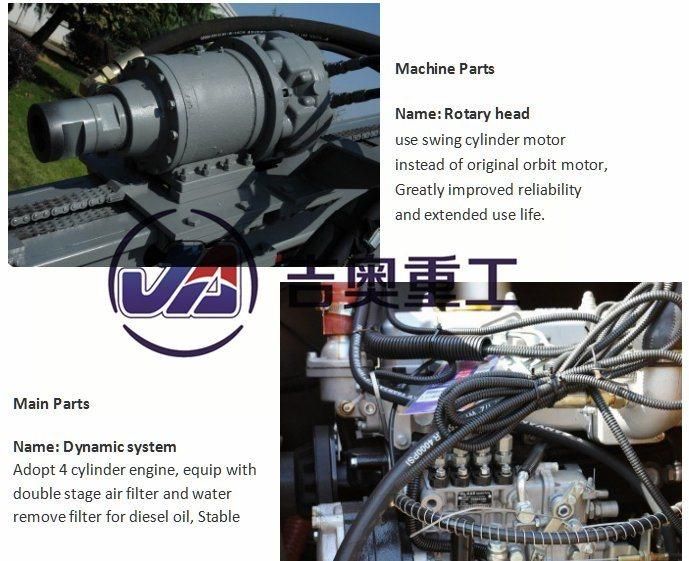

Detailed Images HC726A1 Borehole Drilling Rigs
New Condition Borehole Crawler Diesel Drilling Rigs for Sales



New Condition Borehole Crawler Diesel Drilling Rigs for Sales

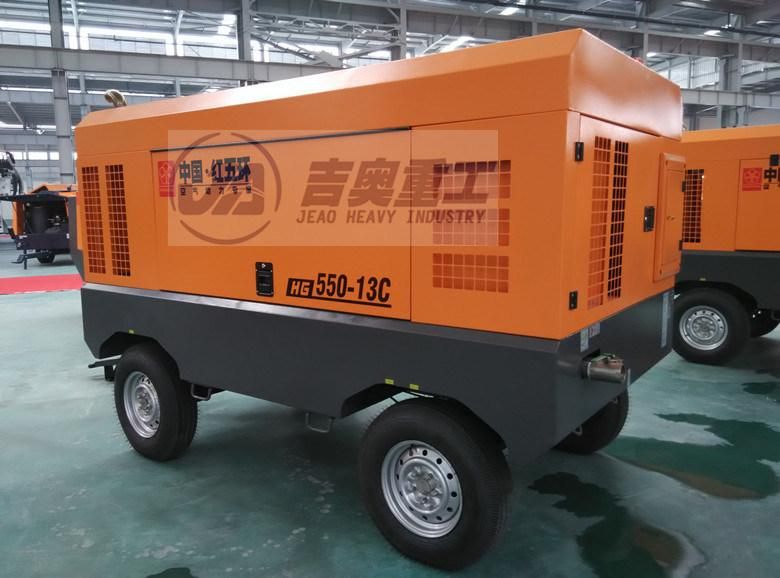

Matching Air Compressor HC726A1 Borehole Drilling Rigs

New Condition Borehole Crawler Diesel Drilling Rigs for Sales

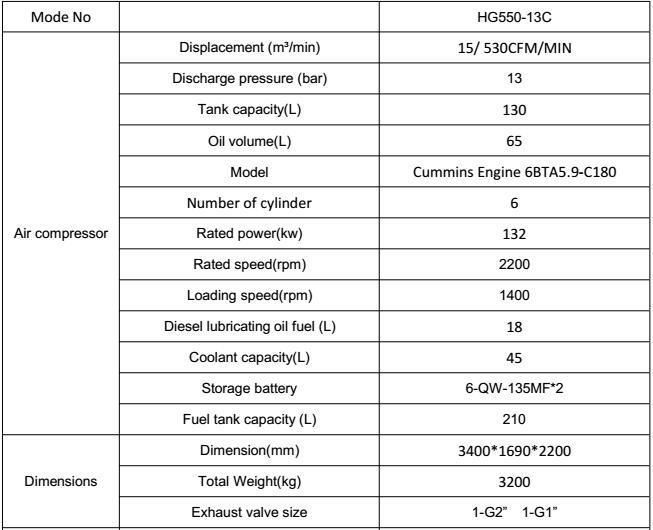

Specification for HG550-13C Diesel Screw Air Compressor For Borehole Drilling Rigs

New Condition Borehole Crawler Diesel Drilling Rigs for Sales

New Condition Borehole Crawler Diesel Drilling Rigs for Sales


                       JEAO Drilling Rig can change lives,and even change the world.
