Zg-13 Track Construction Electric Rail Drills
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Condition：New
- Drill Hole Diameter：13mm
- Bit Type：Impact Drill
- Drilling Way：Impactor
- Type：Drilling Machine
- Model：Zg-13
Base Info
- Model NO.：ZG-13
- Motor Model ：Jizsd05-13A
- Electric Voltage：220V
- Power：420W
- Max Drilling Diameter：13mm
- Spindle Speed ：550r,Min
- Drilling Time：50s
- Drilling Type：Impact Drill
- Overall Dimension：730*190*290mm
- Machine Weight：16kg
- Transport Package：Carton Box, Plastic Bagsor as Your Payment
- Specification：CE, SGS
- Trademark：China Coal
- Origin：China
- HS Code：8430610000
- Production Capacity：1000 Sets Per Month
Description
Basic Info.
Model NO. ZG-13 Motor Model Jizsd05-13A Electric Voltage 220V Power 420W Max Drilling Diameter 13mm Spindle Speed 550r/Min Drilling Time 50s Drilling Type Impact Drill Overall Dimension 730*190*290mm Machine Weight 16kg Transport Package Carton Box, Plastic Bagsor as Your Payment Specification CE, SGS Trademark China Coal Origin China HS Code 8430610000 Production Capacity 1000 Sets Per MonthProduct Description
Introduction Of ZG-13 Track Construction Electric Rail DrillsZG-13 Track Construction/Electric Rail Drills can be used for less than 75Kg/m all type of the rail tracks ,the rail clamp device has the selflocking function ,high position accuracy ,high drilling precision .It uses the twist drill bits ,the overall structure is compact small size ,light weight ,simple and reasonable structure ,electric rail track drilling machine is the essential tools for railway maintenance department.
Parameter Of ZG-13 Track Construction Electric Rail Drills
| Model | ZG-13 |
| Motor Model | JIZSD05-13A |
| Electric voltage | 220V |
| Power | 420W |
| max drilling diameter | 13mm |
| spindle speed | 550r/min |
| drilling time | 50s |
| drilling type | Impact drill |
| overall dimension | 730*190*290mm |
| machine weight | 16Kg |
| suitable steel rail | Less than 75kg/m |
| Model | ZG-13 |
| Motor Model | JIZSD05-13A |
| Electric voltage | 220V |
| Power | 420W |
| max drilling diameter | 13mm |
| spindle speed | 550r/min |
| drilling time | 50s |
| drilling type | Impact drill |
| overall dimension | 730*190*290mm |
| machine weight | 16Kg |
| suitable steel rail | Less than 75kg/m |

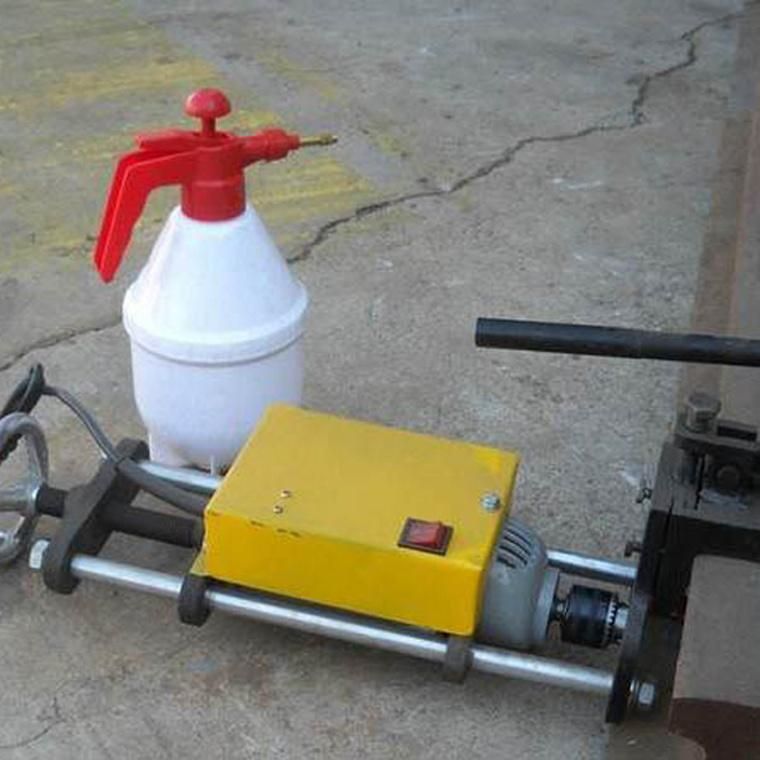

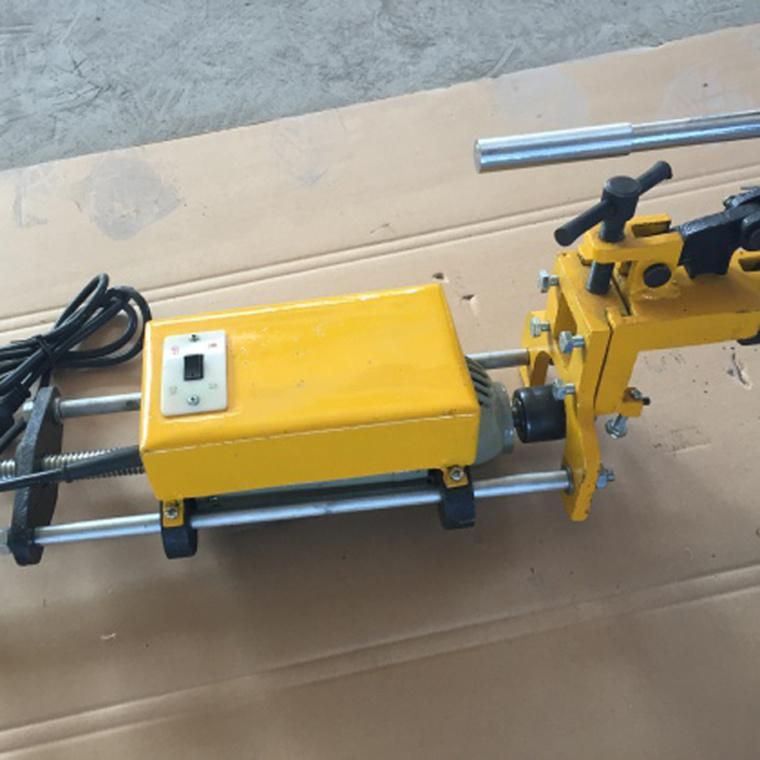

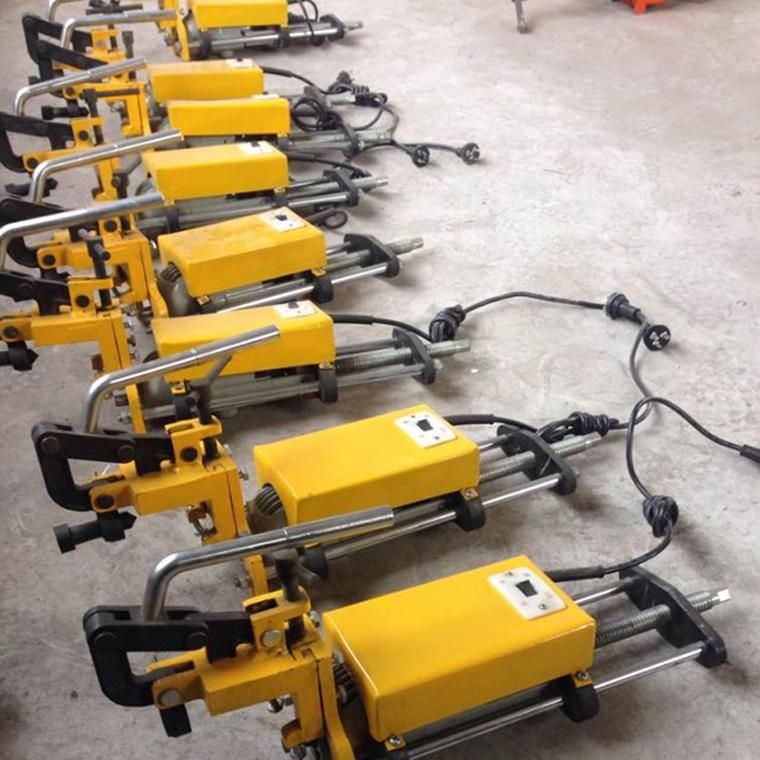

Photos Of ZG-13 Track Construction Electric Rail Drills
