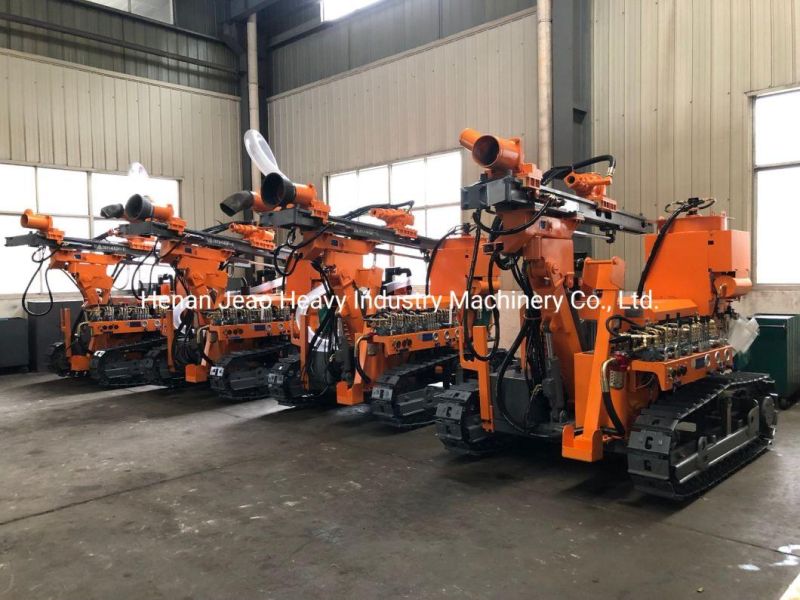

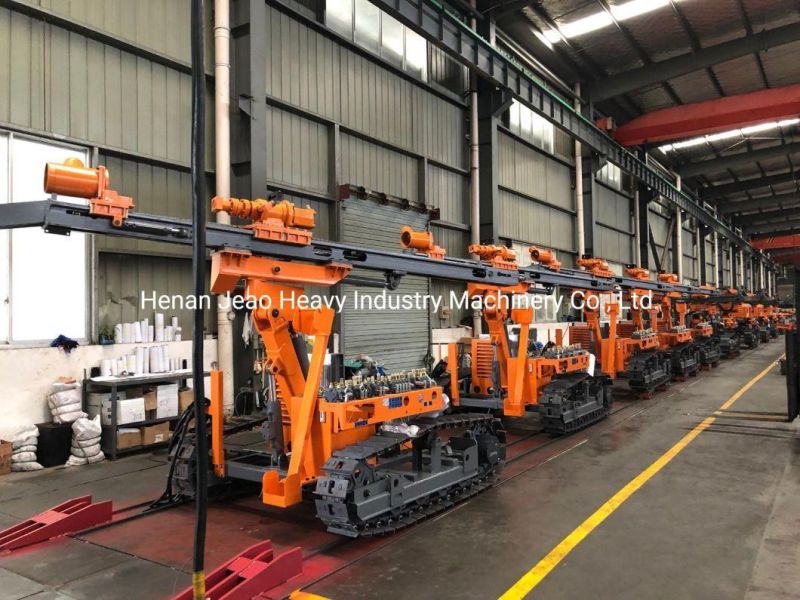

Blast Rock Crawler Drilling Rig with Air Compressor for Mining

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：90-110mm
  • Drill Hole Depth：20-25m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：ZGYX-412-1
  • Drilling Way：Rotary
  • Rock Rigidity：F=6-20
  • Walk Speed：2.5km,H
  • Gradeability：25°
  • Rotation Torque：1650n.M
  • Rotary Speed：70-150rpm,Min
  • Feed Way：Oil Cylinder-Chain
  • Weight：3350,3800kg
  • Dimension：4900*2000*2200mm
  • Transport Package：20"Container
  • Specification：ISO9001: 2008
  • Trademark：JEAO
  • Origin：China
  • Production Capacity：300sets,Month

Description

Rock rigidityF=6-20Diameter of hole Φ90-110mmOptium drilling depth20mWalk speed2.5km/hGradeability25°Rotary speed70-120 rpm/minRotation torque                1650N.mLift power15 KNFeed wayoil cylinder-chainFeed distance                 2000mmCarriage Compensation900mmWorking pressure5-15barAir consumption7-12m3/minPower37.5/59kwDimension4900x2000x2200mmWeight3800kg Model NoDiesel ModelDiesel PowerZGYX-412Xichai 4DW91-50GBG3U37.5KwZGYX-412-1Yuchai YC4DK8059Kw Dust collection system
as standard equipment
The Macthing Diesel Screw Air Compressor:
 Model NoF.A.D(m3/min)Pressure(Bar)PowerWeight110SCY-1012.510110Kw2450kg110SCY-14.51114.5110Kw2450kg
