Borehole 200m Depth Water Well Drilling Rig

Liuzhou Tuozhi Mine Tech Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：Diesel
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>200m
  • Bit Type：DTH

Base Info

  • Model NO.：TZ-200
  • Drilling Way：Impactor
  • Type：Crawler
  • Power：Hydraulic
  • Configuration：Portable
  • Warranty：One Year
  • Transport Package：Export Standard
  • Specification：5400x1800x2480mm
  • Trademark：TZ
  • Origin：Guangxi Liuzhou
  • HS Code：8430412900
  • Production Capacity：100

Description

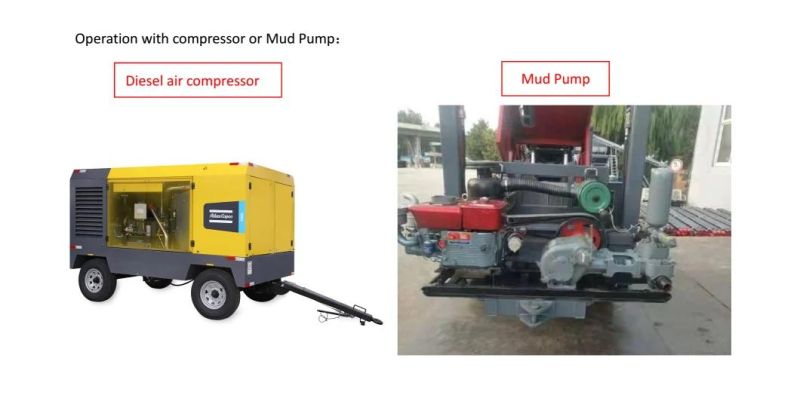

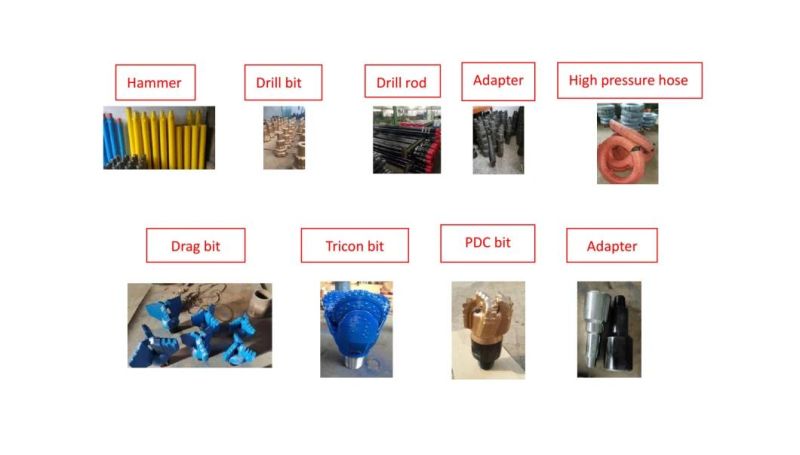

crawler water well drilling rig TZ-200 Max Drilling diameter254mmThe  drilling depth200mAdapt to rock hardnessf=6-20Work  pressure1.2-3.5MPaAir  consumption16-55m3/minRotary  speed70r/min,140r/minMaximum  rotary torque5000N.m / 2500NmMaximum  lifting force10tMax fonwarding force4.5TDrill rod length3MRecommendation Drill rod diameter89mm or 76mmMax lifting speed30m/mimMax fonwarding speed60m/mimwindlass lifting force1.1TWalking  speed2.5km/hEngine power58kwGrade ability21Outer size(length×width×height)4070×1500×2050mmWeight5.2tDrilling methodTop driven hydraulic rotation/forwarding or mud pump Details determine qualityBorehole 200m Depth Water Well Drilling RigYou decide how to drilling,Compressor or Mud PumpBorehole 200m Depth Water Well Drilling Rig Drilling Tools:

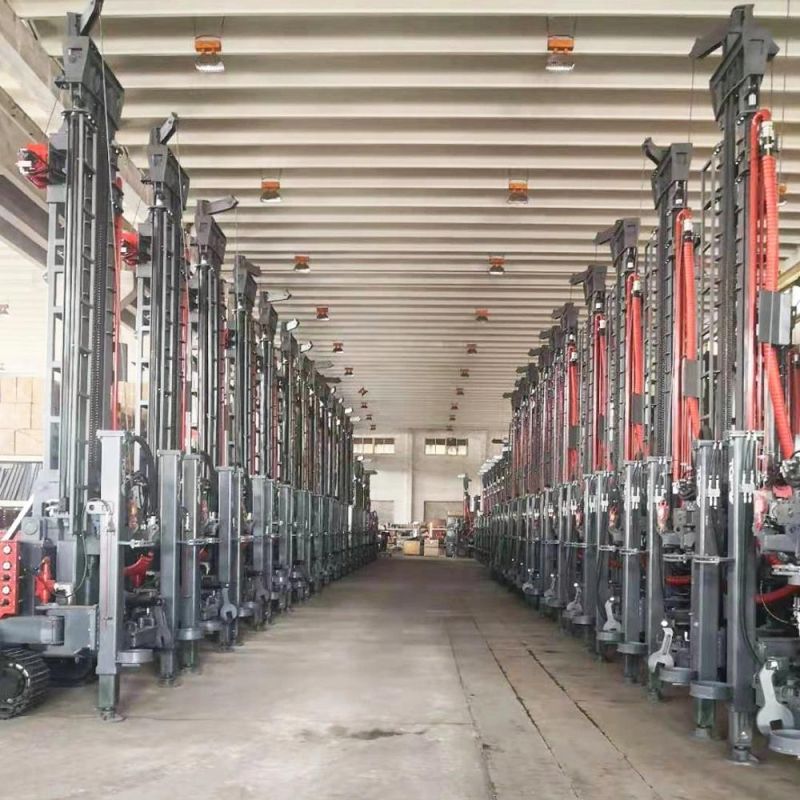

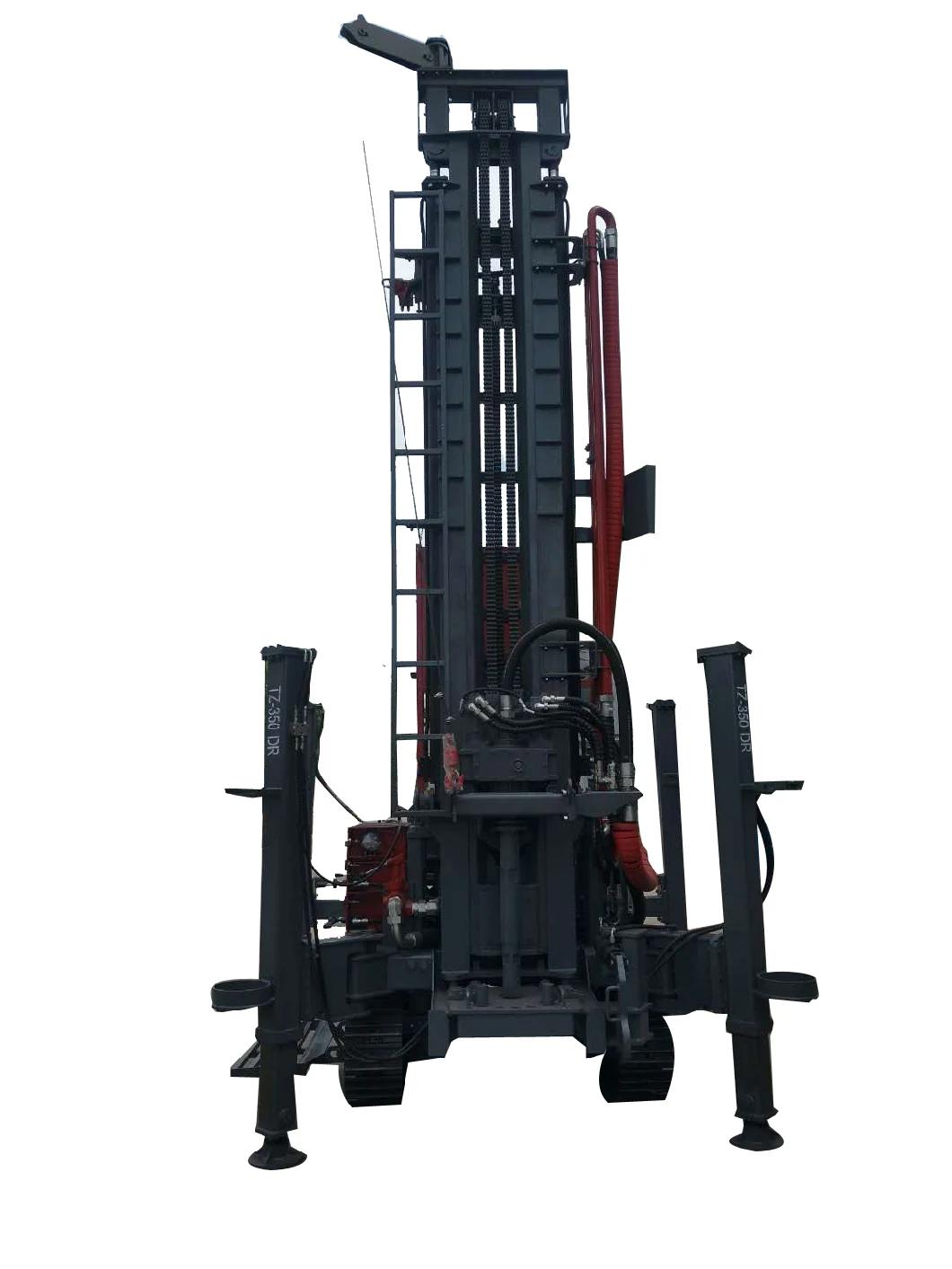

Borehole 200m Depth Water Well Drilling RigProducts display:Borehole 200m Depth Water Well Drilling RigBorehole 200m Depth Water Well Drilling RigBorehole 200m Depth Water Well Drilling Rig
