Zgyx-425 Down The Hole Drilling Rig for Marble Bore Hole
Henan Jeao Heavy Industry Machinery Co., Ltd.- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：110-152mm
- Drill Hole Depth：30m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
Base Info
- Model NO.：ZGYX-425-1
- Model No：Zgyx-425,Zgyx-425-1
- Rock Hardness：F=6~20
- Working Pressure：0.7-2.5 MPa
- Air Consumption：8-20m3
- Rotation Torque：3200n.M
- Rotate Speed：0-100rpm
- Feed Force：20kn
- Pull Force：45kn
- Walking Speed：3km,H
- Gradient：25°
- Usage：Ore
- Weight：6000kg
- Transportation Size：7000*2250*2700mm
- Transport Package：20"Container
- Specification：ISO9001: 2008
- Origin：China
- HS Code：8432412200
- Production Capacity：300sets,Month
Description
Basic Info.
Model NO. ZGYX-425-1 Model No Zgyx-425,Zgyx-425-1 Rock Hardness F=6~20 Working Pressure 0.7-2.5 MPa Air Consumption 8-20m3 Rotation Torque 3200n.M Rotate Speed 0-100rpm Feed Force 20kn Pull Force 45kn Walking Speed 3km/H Gradient 25° Usage Ore Weight 6000kg Transportation Size 7000*2250*2700mm Transport Package 20"Container Specification ISO9001: 2008 Origin China HS Code 8432412200 Production Capacity 300sets/MonthProduct Description
Product Description:

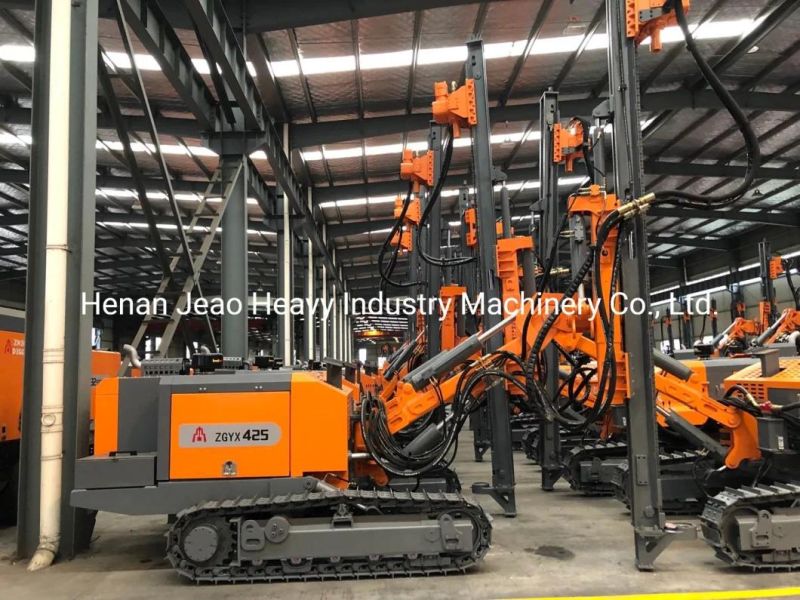

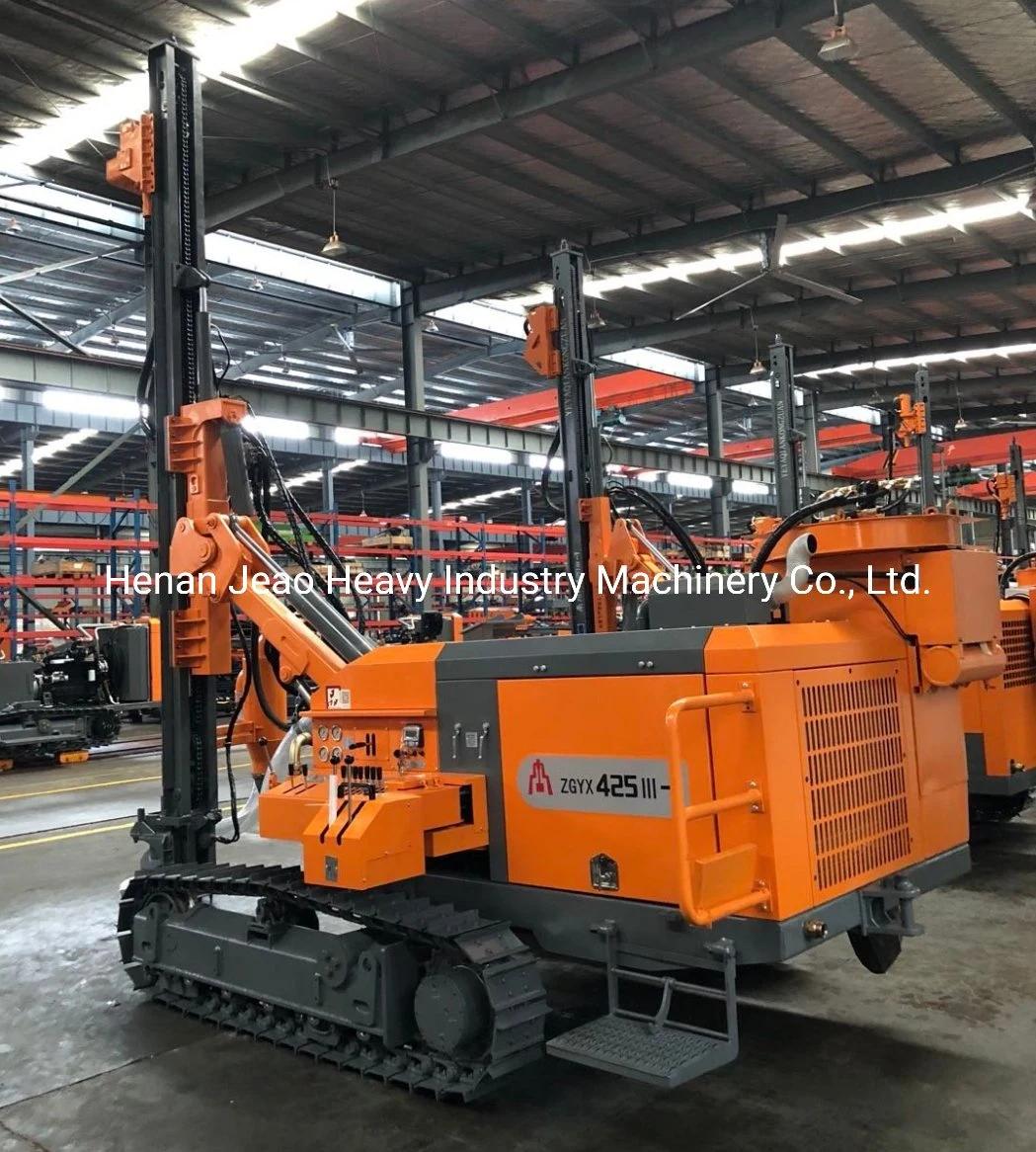

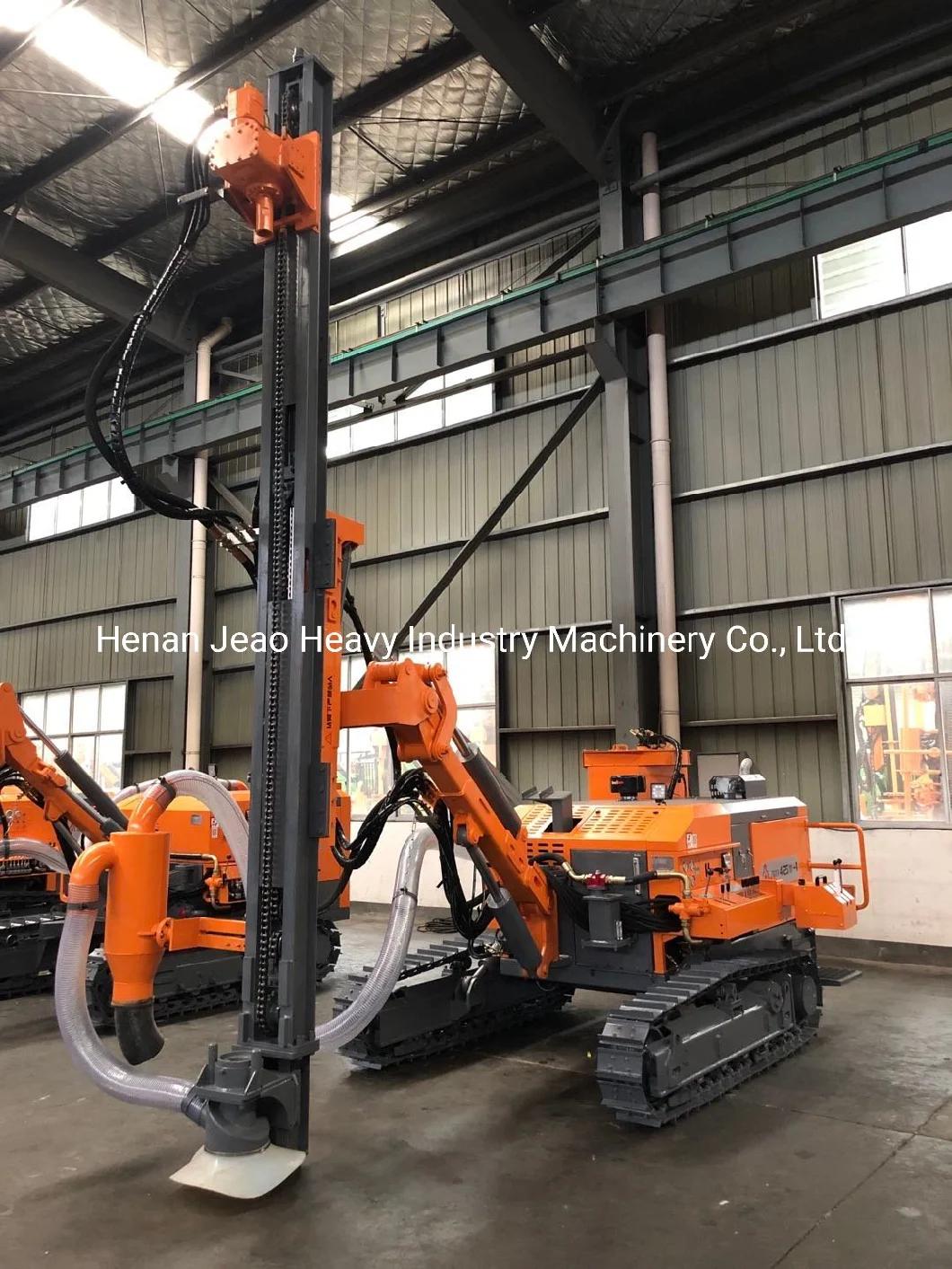

Committed to the needs of green mining, Zhigao machinery developed this model of low cost high performance, eco- friendly, safa, compact & high efficiency separated DTH drill rig, widely used in various surface mines, quarries & construction work sites, etc.
This model is the new generation of Zhigao classic priduct series, with the collective advantages of various different models, this machine with hole range of 110-152mm and new enclosure design, and oscillation, ZGYX-425 product series has excellent stability and outstanding appearance in the same class of products
Specification for Blasthole Drill Rig for Sale ZGYX-425-1 Rock Drilling Rig Machine
| Model No | ZGYX-425-1 |
| Rock hardness | F=6-20 |
| Hole diameter | 110-152mm |
| Economic Drill depth | 30m |
| Rotating speed | 0-100r/min |
| Rotary torque | 3200N.m |
| Feed force | 20000N |
| Pull up force | 45000N |
| Propulsion Type | Cylinder-Chain |
| Walking speed | 0-2.5km/h |
| Grade ability | 30° |
| Net weight | 6000KGS |
| Dimension | 7000*2250*2700mm |
| Diesel Engine | 58/ 73.5Kw,2400r/min) |
| Drill rod specification(mm) | 76×3000mm |
| Hammer | 4"/5" |
| Working pressure | 0.7-2.5MPa |
| Air consumption | 8-20M3/min |
| Remark | Pneumatic-Hydraulic |
| Dust collection | Standard equipment |
| Model No | |
| ZGYX-425 | 58Kw Yuchai YC4DK-80 |
| ZGYX-425-1 | 73.5 Kw Yuchai YC4D-100 |
