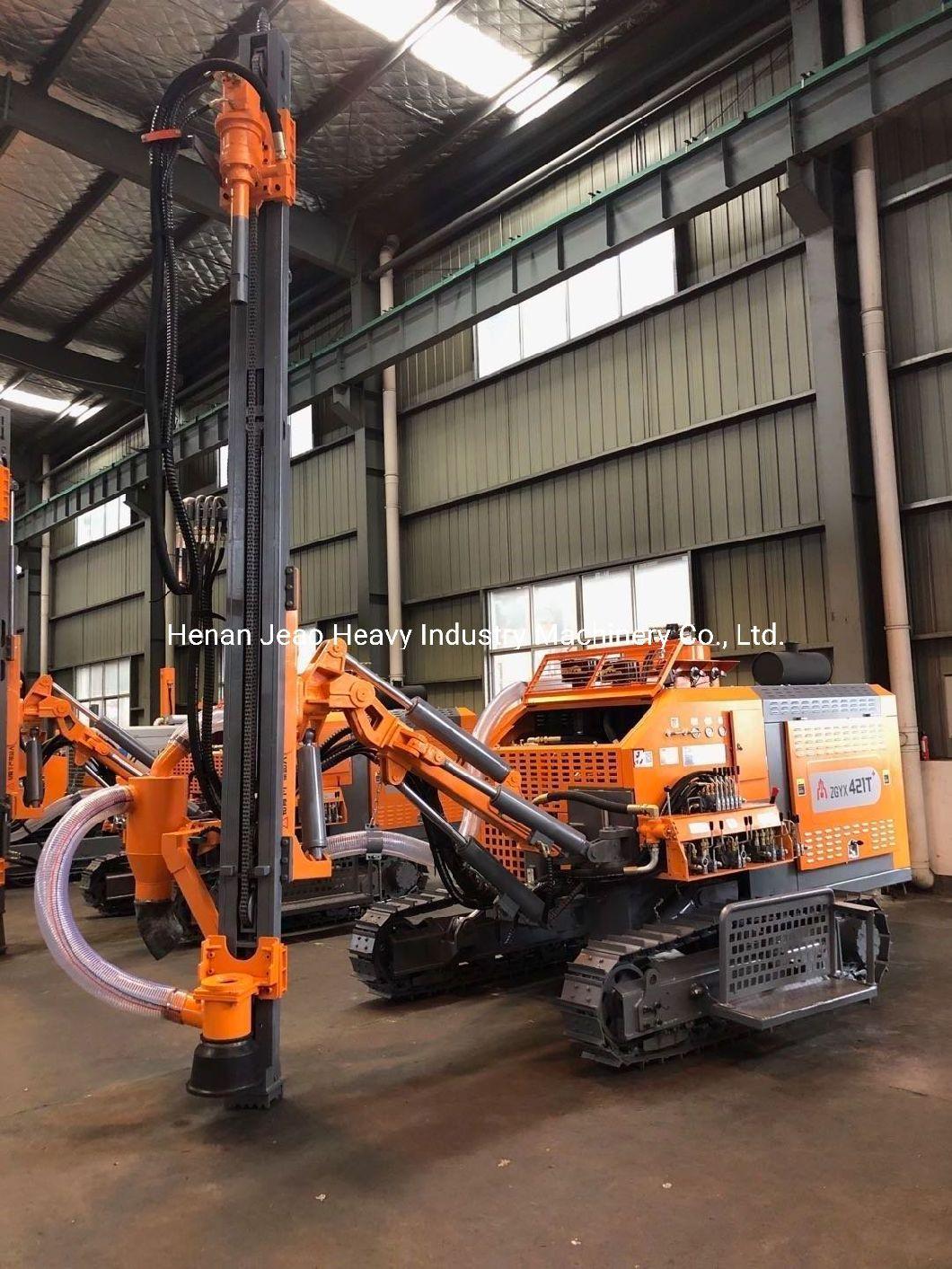

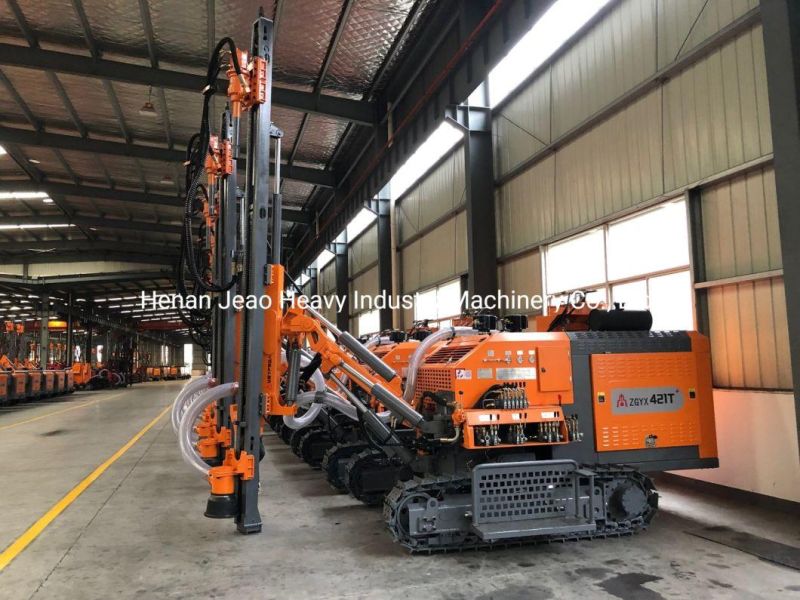

Small Integrated DTH Surface Drilling Rig for Quarry
Henan Jeao Heavy Industry Machinery Co., Ltd.- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel
- Drill Hole Diameter：80-115mm
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
Base Info
- Model NO.：ZGYX-421T
- Drilling Way：Impactor
- Drill Depth：20meters
- Power：162kw
- Working Pressure：14.5bar
- Air Consumption：12m3,Min
- Dimension(L*W*H)：6000*2800*2750mm
- Weight：6800kg
- Application：Mining, Quarry etc
- DTH Hammer：3.5"
- Drill Rod：60*3000mm
- Transport Package：40" Gp
- Specification：ISO certification
- Origin：China
- Production Capacity：20sets Per Months
Description
