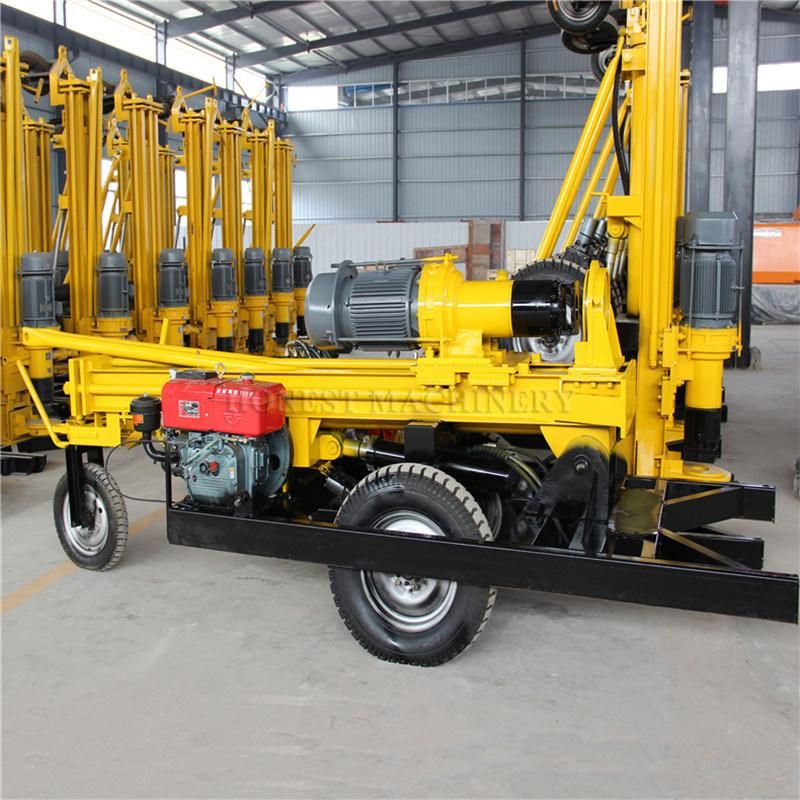

Good Sales Machine for Water Well Drilling

Zhengzhou Honest Machinery Co., Ltd.
  • Certification：CE, SGS TUV Co
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：on The Specification
  • Drill Hole Depth：on The Specification
  • Bit Type：Drag Bit

Base Info

  • Model NO.：HT-CZZJ01
  • Drilling Way：Rotary
  • Type：on The Specification
  • Output Voltage：220V, Customized
  • Drilling Depth：100-660mm
  • Drilling Hole Diameter：75-300mm
  • Drill Rob：60mm
  • Transport Package：Fumigation-Free Wooden Case
  • Specification：2.75*0.95*1.6m
  • Trademark：honest
  • Origin：China
  • Production Capacity：300sets,Month

Description

Unity Machine ParameterDrilling depth100m250m300m600mDrilling hole diameter300mm200mm150mm75mmMax.open hole caliber300mmEnd hole caliber75mmDrill rod caliberΦ60mmDrilling angle90°~ 65°Rotary SpindleSpindle forward speed30--1050r/minSpindle reserve speed29--137r/minSpindle stroke560mmSpindle inner diameter96mmSpindle lifting capacity60KNMain Winch (Drive Hydraulic System)Single line lifting capacity0--45m/minHug floodgate belt width90mmTightrope diameter14mmHoist single line lifting capacity40KNRoller diameter200mmRoller cubic measure30mMud PumpTypeHorizontal triplex BW-200 mud pumpDisplacement 200L/minWork pressure4--6MpaWater inlet pipe diameter65mmWater outlet pipe diameter37mmGear Oil PumpDuplex gear oil pump CBF-F63/25Front displacement pressure63L/min  20MpaBehind displacement pressure25L/min  20MpaDrilling Rig PowerDiesel engine51HPElectric motorY180L-4  22KW Good Sales Machine for Water Well Drilling

3.Contact information
If you need further information, please contact us freely, we will do our best to cooperate with you.
