Hc725 Crawler Portable Mining Exploration Drilling Rig

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：80-105mm
  • Drill Hole Depth：20m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor

Base Info

  • Model NO.：HC725B1
  • Rock Hardness：F=6-20
  • Air Consumption(M3/Min)：7-12
  • Working Pressure(MPa)：0.5-1.4
  • Main Motor Power(Kw)：40kw
  • Traveling Speed(Km/H)：2.5
  • Drill Rod：60*2000mm
  • Hammer：90
  • Drill Bit：90
  • Weight(Kg)：3200
  • Dimension(mm)：4250*1980*2260mm
  • Transport Package：Nude Packing
  • Specification：ISO
  • Trademark：HWH
  • Production Capacity：300sets,Month

Description

Diesel EngineModel 6BT5.9 or YC6108ZGStyle Cooled stroke 4 direct injection super chargeRated Power(Kw/Hp) 110/150Rated Speed(rpm) 2500 or 2400Coolant Volume(L) 25-28Engine Oil Capacity(L) 12-18Fuel Tank Capacity(L) 120-16080% Load oil wear (L/h) 17-18

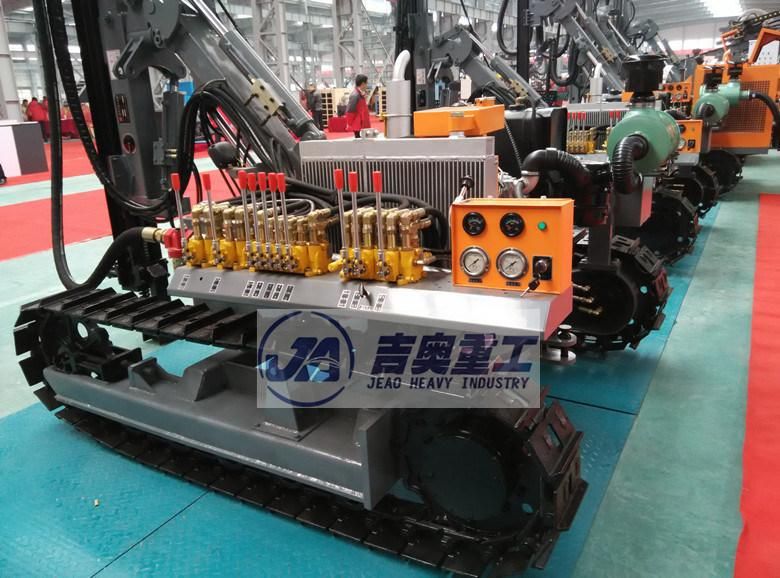

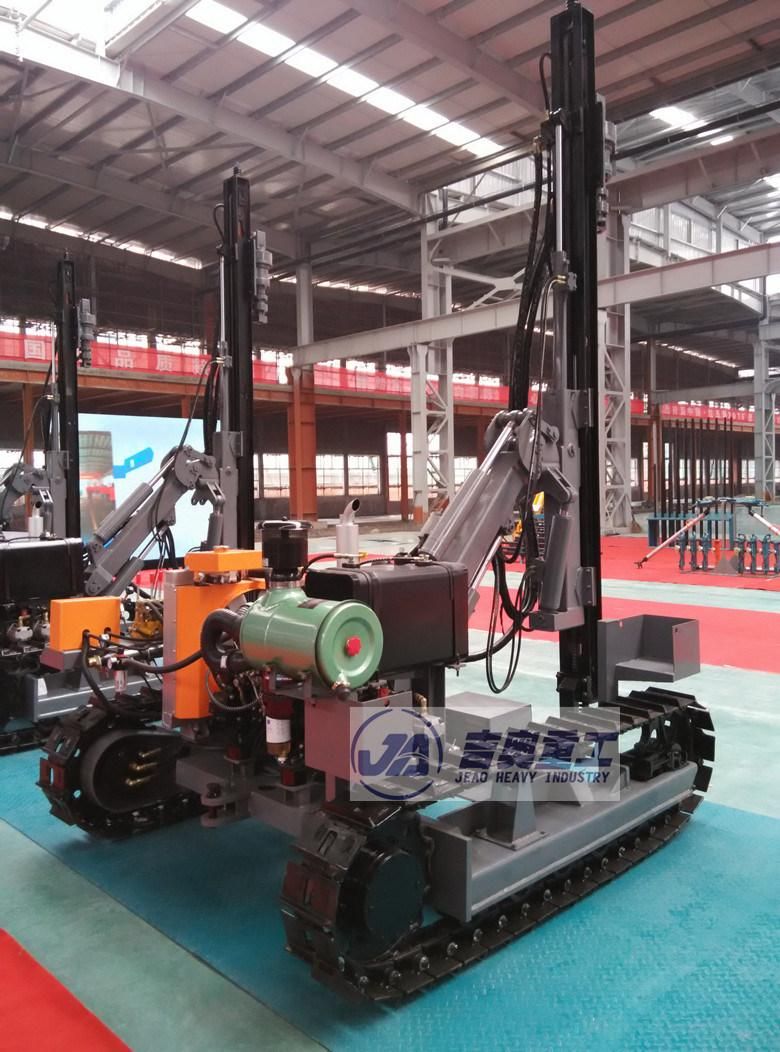

Photo for HC725B1 Crawler Portable Mining Exploration Drilling Rig and Compressor

Hc725 Crawler Portable Mining Exploration Drilling Rig
Hc725 Crawler Portable Mining Exploration Drilling Rig
Hc725 Crawler Portable Mining Exploration Drilling Rig

About us :

We are manufactures a wide range of machineries, such as all kinds of piston air compressors, screw air compressors, pneumatic rock drills, pneumatic and hydraulic down hole drills, breakers, drilling wagons etc., more than 300 varies of items in 8 product lines. The annual production capacity is over 200,000 units. Having implemented a name brand strategy that emphasizes growing our trademark globally, we have built up extensive sales, service and promotion networks. We have over 800 wholesalers around China as well as overseas market, which have exported products to Europe, South America, Middle East, Southeast Asia, South Africa etc.
