Popular Hc726 Surface Crawler Drilling Rigs for South Africa Market

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Condition：New
  • Drill Hole Diameter：90-130mm
  • Drill Hole Depth：25-30
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Rock Hardness：F=6~20

Base Info

  • Model NO.：HC726A1
  • Walking Speed：2.5km,H
  • Working Pressure：0.7~1.6 MPa
  • Air Consumption：7-15m3
  • Rotate Speed：0-70rpm
  • Drill Rod：76*3000mm
  • Drill Bit：90mm
  • Hammer：930
  • Weight：4200kg
  • Size：5260*2045*1950mm
  • Transport Package：Nude Packing
  • Trademark：HONGWUHUAN
  • Origin：China
  • HS Code：8432412200
  • Production Capacity：300sets,Month

Description













Whole MachineTo adapt to the rock hardness6~25diameter of bore90~130Economic drill deepth25Stand-alone gradeability30Propulsion modeoil cylinderFeeding stroke(m)3250Maximum lift capacity15Rotary torque1300Rotary speed30~90Work pressure0.7~1.6Air consumption7~15Main Power40Drill arm horizontal pendulum AngleLeft35/Right35Walking speed(km/h)2.5Ground clearance300Dimensions5200*100*2000Weight(kg)4000

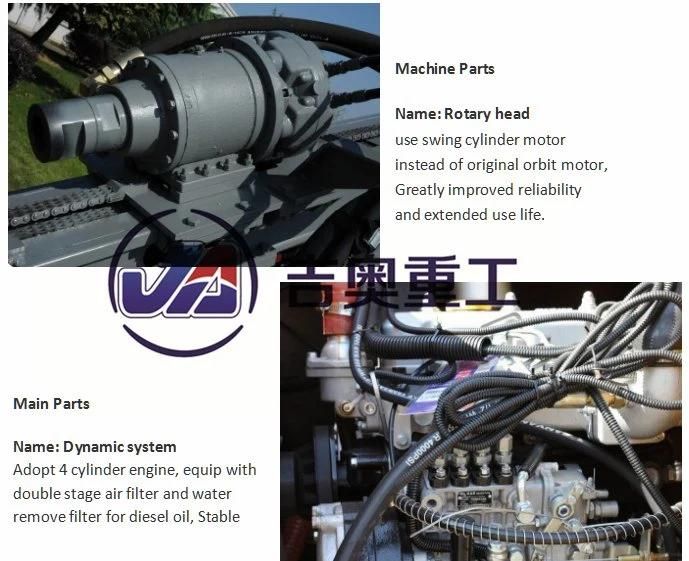

Detailed Images HC726B Surface Crawler Drilling Rigs
Popular Hc726 Surface Crawler Drilling Rigs for South Africa Market



Popular Hc726 Surface Crawler Drilling Rigs for South Africa Market

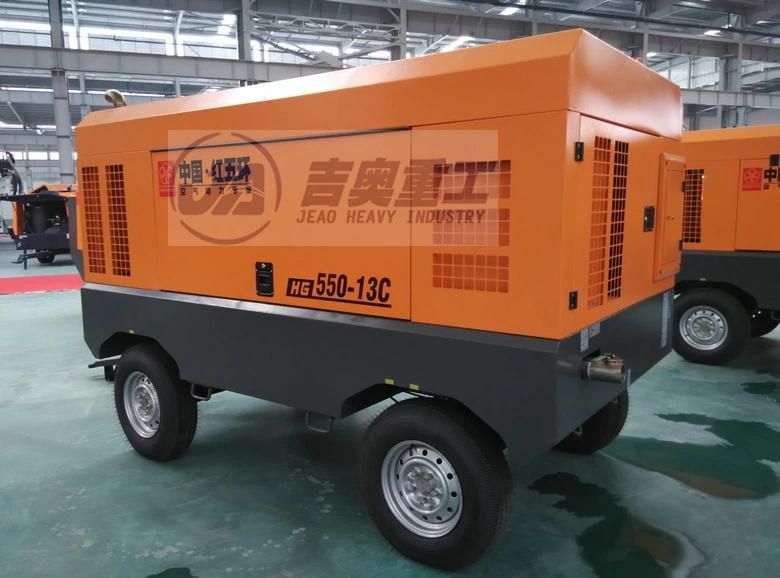

Matching Air Compressor HC726B Surface Crawler Drilling Rigs

Popular Hc726 Surface Crawler Drilling Rigs for South Africa Market

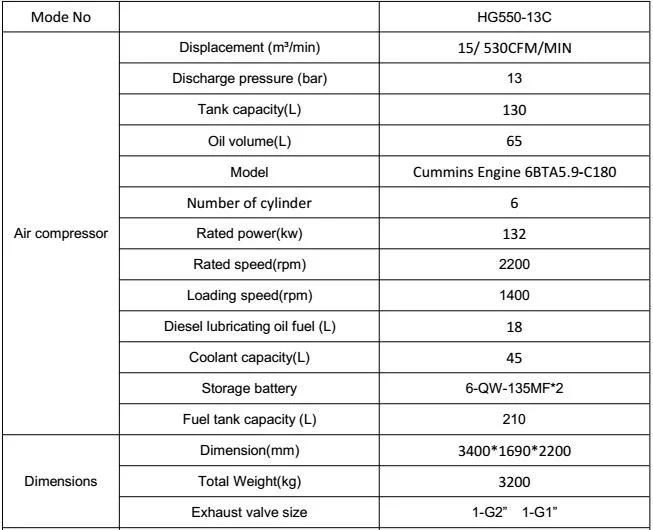

Specification for HG550-13C Diesel Screw Air Compressor For Surface Crawler Drilling Rigs

Popular Hc726 Surface Crawler Drilling Rigs for South Africa Market

Popular Hc726 Surface Crawler Drilling Rigs for South Africa Market


                       JEAO Drilling Rig can change lives,and even change the world.
