• Model NO.：MQT130
• Drilling Rod：B19, B22
• Usage：Coal
• Warranty：1 Year
• Lead Time：About 7 Working Days After Payment
• Transport Package：Wooden Case
• Specification：MQT-90,100,110,120,130
• Trademark：ENWEI
• Origin：China
• HS Code：84304900
• Production Capacity：500 Piece, Month

Basic Info.

Model NO. MQT130 Drilling Rod B19, B22 Usage Coal Warranty 1 Year Lead Time About 7 Working Days After Payment Transport Package Wooden Case Specification MQT-90/100/110/120/130 Trademark ENWEI Origin China HS Code 84304900 Production Capacity 500 Piece/ Month

Product Description

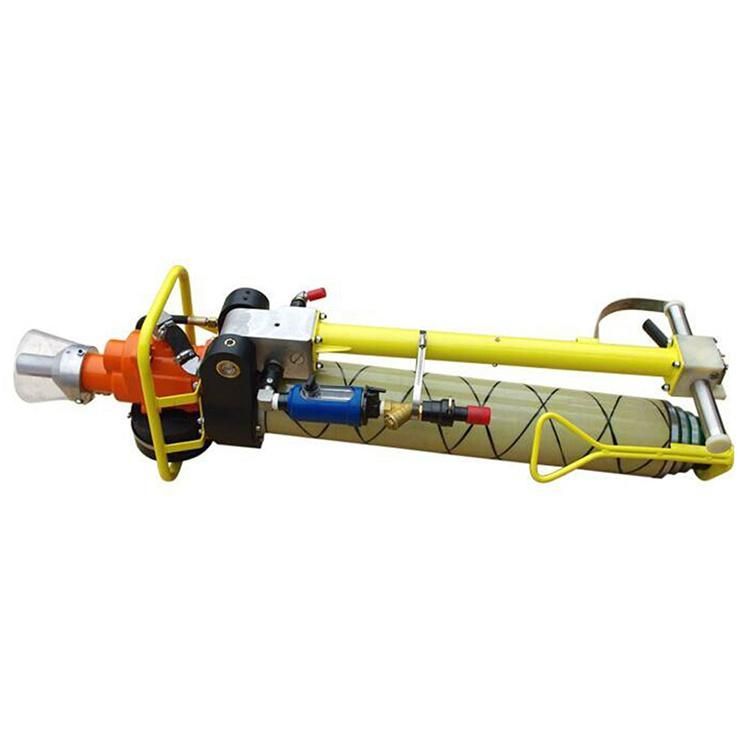

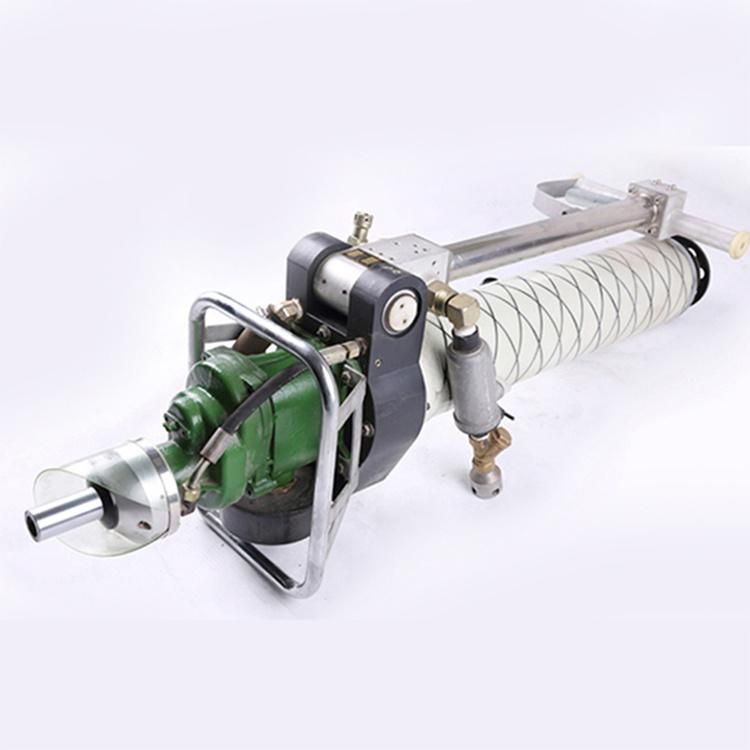

MQT Series Air Propleg Anchor Drilling Machine for Coam Mine

Parameters


Parameter	MQT-90/2.3A	MQT-100/3.1	MQT-110/2.8	MQT-120/3.0	MQT-130/3.2
Applicable air pressure (Mpa)	0.4-0.63	0.4-0.63	0.4-0.63	0.4-0.63	0.4-0.63
Rated air pressure (Mpa)	0.5	0.5	0.5	0.5	0.5
Flushing water pressure (Mpa)	0.6-1.2	0.6-1.2	0.6-1.2	0.6-1.2	0.6-1.2
Rated torque (N.m)	90	100	110	120	130
Rated rotary speed (r/min)	240	280	240	240	240
Idle propelling speed (mm/s)	400	400	400	400	400
Max. output power (Kw)	2.3	3.1	2.8	3	3.2
Idle rotary speed (r/min)	650	900	700	700	700
Idle torque (N.m)	230	180	230	240	240
Max. loading torque(N.m)	220	170	220	230	230
Air consumption (m3/min)	≤3.2	≤3.8	≤3.6	≤3.8	≤4.0
Noise (dB(A))	≤90	≤90	≤90	≤90	≤90

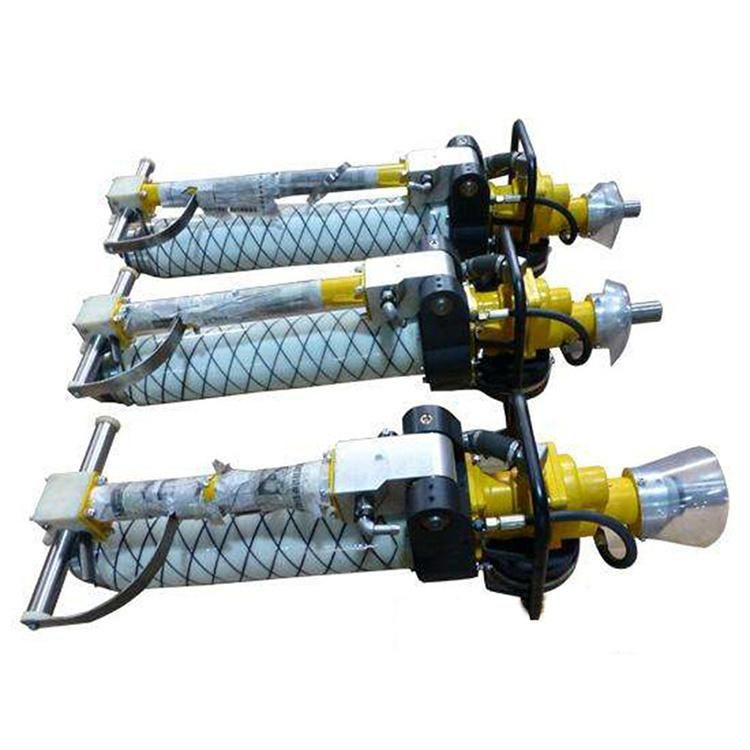

MQT Series Air Propleg Anchor Drilling Machine for Coam Mine

Light Weight
The machine adopts innovative idea to realize integration and make it an exquisite and compact outline, it is about 20% lighter than other roof bolters, thus the machine reduces work intensity and enhance work efficiency significantly.

Hign level of Security.
Dual exhaust model and new seals structure ensure the fast and smooth leg expension and retraction. No alumnum. Making it super high level of security



Large Power
Adopting completely new design concept, the machine deliver super large power, the drilling efficiency has increased by 20% compared with regular roof bolter.


Lower Noise
The machine adopts completely new design of silencing, the silencer is placed in gyrator, making it more compact and reduces the noise a lot.

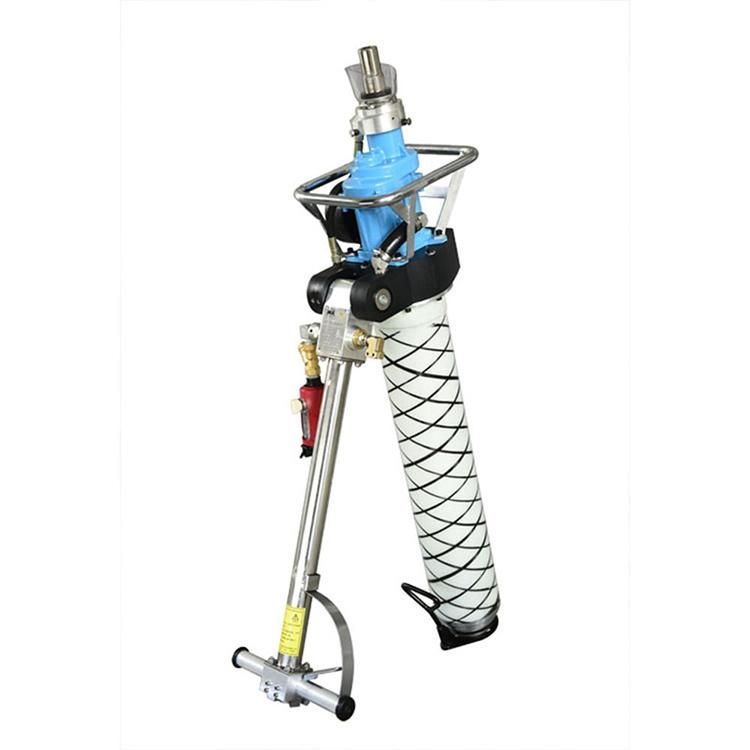

MQT Series Air Propleg Anchor Drilling Machine for Coam Mine
