Portable Light Weight Gasoline Hammer Hand Rock Drill
Jining Bafang Mining Machinery Group Co., Ltd.- Certification:ISO 9001:2000
- Condition:New
- Motor:AC Motor
- Drill Hole Diameter:150-200mm
- Drill Hole Depth:<100m
- Bit Type:Cone Bit
Base Info
- Product Name:Hammer Rock Drill
- Weight:30kg
- Dimension:746*315*229mm
- Diameter of Engine Piston:58mm
- Stroke of Engine Piston:70mm
- Rotating Speed of Engine:2450r,Min
- Oil Consumption:0.12L,Min
- Max. Drilling Depth:6m
- Transport Package:Carton Packing
- Specification:746*315*229mm
- Trademark:bafang
- Origin:Shandong, China (Mainland)
- Production Capacity:100,Month
Description
Basic Info.
Product Name Hammer Rock Drill Weight 30kg Dimension 746*315*229mm Diameter of Engine Piston 58mm Stroke of Engine Piston 70mm Rotating Speed of Engine 2450r/Min Oil Consumption 0.12L/Min Max. Drilling Depth 6m Transport Package Carton Packing Specification 746*315*229mm Trademark bafang Origin Shandong, China (Mainland) Production Capacity 100/MonthProduct Description
Portable light weight gasoline hammer hand rock drillDescription:

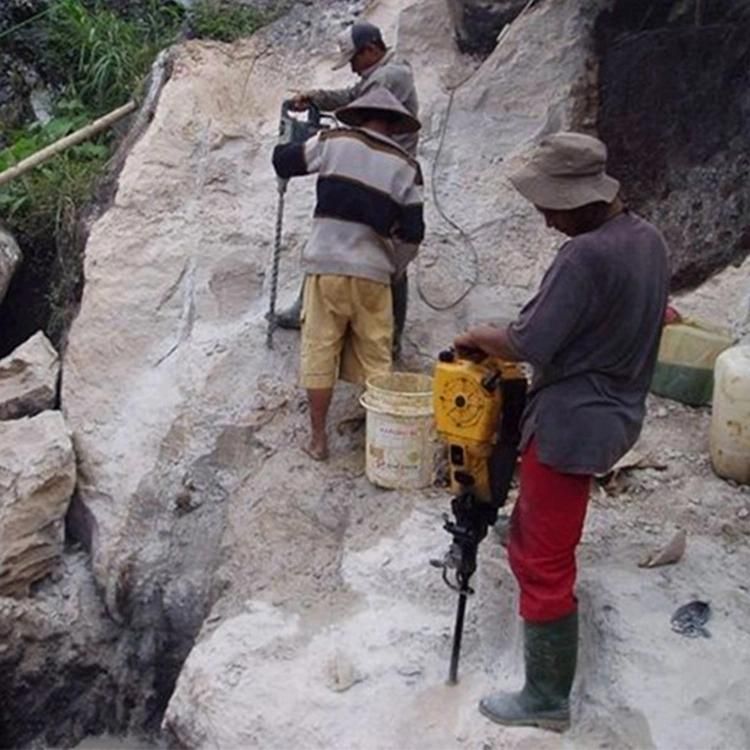

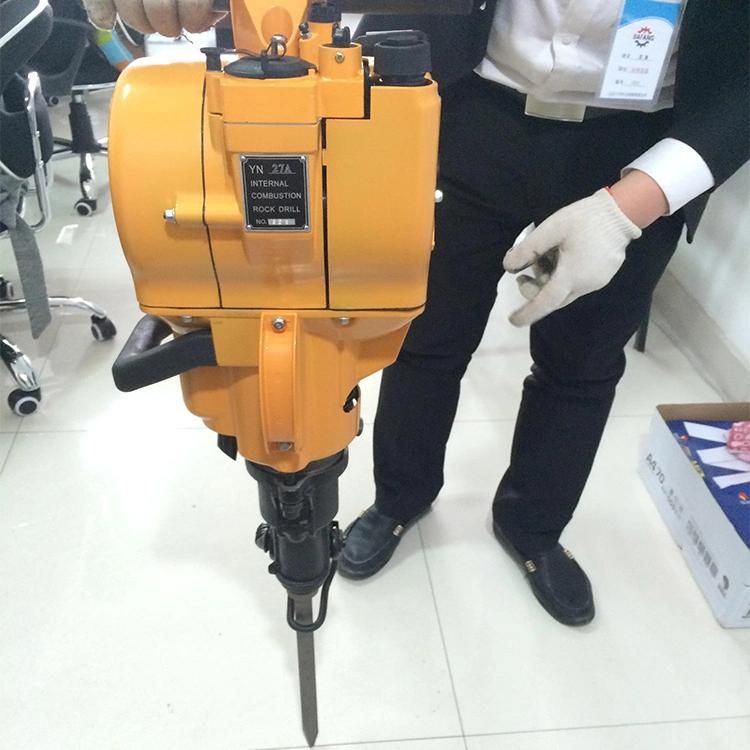

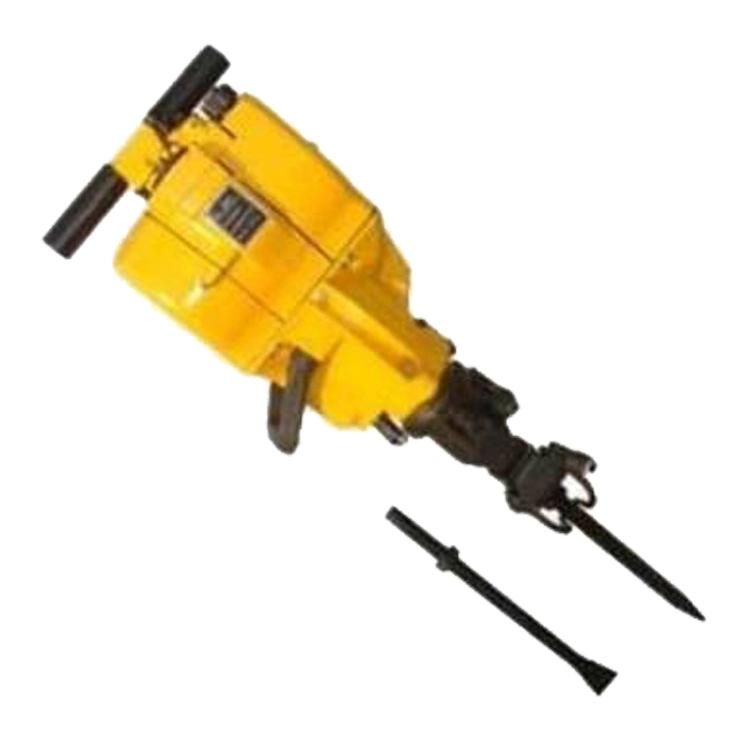

YN27J manual rock drill is a small type of rock drill composed the power machine, working machine and air compress in one. It is powered by the small gasoline engine and used for drilling on the hard rock or rock with medium hardness, the hardness of rock is f8 to f18. Because it is self-powered, it is especially convenient to be used for projects without other power supply, or projects that are inconvenient for conveying the large-volume unit, or for mobile construction projects.
Feature:
1. Easy to operate, just turn the handle to make it work.
2. Time and labor saving, Drilling fast and high efficiency.
3. First-class level Drilling Tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40).
4.Used to drill vertical downward hole (max depth 6m) and <45° upward hole.
5. Light Drilling Tools, only 27kgs, easy to carry.
6. Rubber hand handle, shock absorption, which has certain protective effect for operator.
Parameter:
Weight | 27kg |
Dimension | 746*315*229mm |
Function | Drilling |
Type of carburetor | Hand needle valve, no floating type |
Type of engine | Single cylinder,air cooled two strokes |
Diameter of engine piston | Φ58mm |
Stroke of engine piston | 70mm |
Rotating speed of engine | ≥2450R/min |
Rotating speed of drilling rod | ≥250R/min |
Oil consumption | ≤0.12L/min |
Max. drilling depth | 6m |
Tank capacity | ≥1.14 L |
Shank size | Hex22x108mm |
Ignition system | Controllable silicon, Contactless system |
Mixture ratio of gasoline and lubrication oil | 12:01 |
