• Model NO.：DFQ-150W
• Drilling Way：Rotary
• Type：Rotary Drilling Rig
• Application：Water Well, Blast Hole, Geothermal Hole, etc
• Max Drilling Depth：150m
• Fully Hydraulic：Yes
• Drilling Caliber：105-203mm
• Weight：2800 Kg
• Power：44kw
• Gas Consumption：15~24 M3,Min
• Apply to Rock Hardness：F=6-12
• Qualification：BV, SGS
• Usage：Ore, Blast Hole, Geothermal Hole, Water Well, Coal
• Power Type：Diesel or Electric
• Transport Package：Container
• Specification：3500*1770*2300mm
• Trademark：Defy
• Origin：Henan, China
• Production Capacity：100sets,Month

Basic Info.

Model NO. DFQ-150W Drilling Way Rotary Type Rotary Drilling Rig Application Water Well, Blast Hole, Geothermal Hole, etc Max Drilling Depth 150m Fully Hydraulic Yes Drilling Caliber 105-203mm Weight 2800 Kg Power 44kw Gas Consumption 15~24 M3/Min Apply to Rock Hardness F=6-12 Qualification BV, SGS Usage Ore, Blast Hole, Geothermal Hole, Water Well, Coal Power Type Diesel or Electric Transport Package Container Specification 3500*1770*2300mm Trademark Defy Origin Henan, China Production Capacity 100sets/Month

Product Description

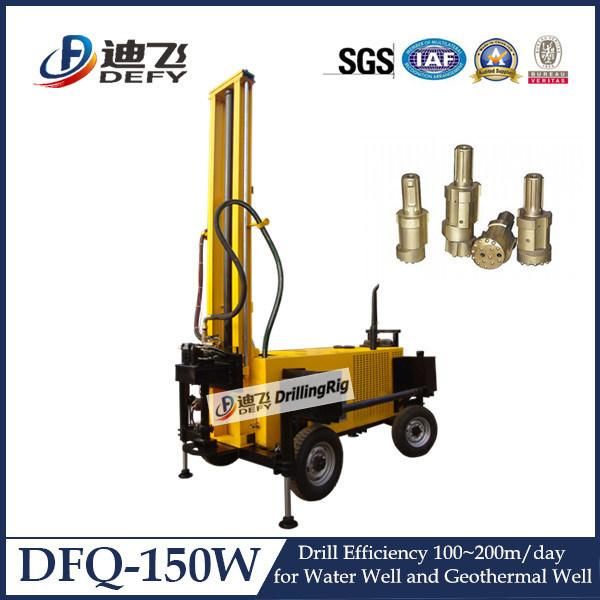

DFQ-150W Hard Stone Drilling Machine
Brief Introduction

DFQ-150W drilling machine can drill for 150m depth at the caliber of 105-203mm. The machine equipped with diesel motor, which could provide powerful driving force to run the hydraulic system and other parts. The machine is mounted with four wheels, more convenient when transport.
It can be used in water well, blast hole, borehole, geothermal hole, foundation hole and other drilling work. This machine is especially professional in drilling rocks such as gravel, granite, basalt, with dth hammer drill bits. All these features ensure the high efficiency of drilling work. The higher efficiency, the more profit you can earn.

Features

1.China famous brand diesel or electric motor can be chosen by customer.

2.HIgh quality dth hammer drill bits equipped, long lifetime and more profit you can earn.

3.Tractor mounted, easily to move around or transportation.

4.Four strong support legs provide high stability in drilling.

5.Mud pump adopted to drill earth, widely drilling range.

Technical Parameter

No.	Item	DFQ-150W
1	Drilling caliber	Φ105-203mm
2	Max. drilling depth	150m
3	Work pressure	1.05-2.0 MPa
4	Gas consumption	15-24 m³/min
5	Impacter	DHD350/360
6	Apply to rock hardness	f=6-12
7	Power	44KW
8	Rotary torque	2000N.m
9	Weight	2800 Kg
10	Dimension	3500*1770*2300mm

Buyer Concerns:
1. Q: How could I know whether you are a Manufacturer or Trading company?
     A: We master the technology, and constantly adjust our products according to the market trend and customer feedback, ensure product quality. As a professional drilling equipment manufacturer, you are welcomed to visit our factory to see and try your machine by yourself before purchasing.
2. Q:  How to buy your drilling machine?
    A:  After confirming the goods you want, deposit for ordering the goods, then the good prepared for confirmation, payment balance, and then shipment.
3. Q: What do I need to do after payment?
    A: a) If under FOB trading terms,you need to employ a ship forwarder to ship the goods to you;
         b) Under CIF trading terms,we send the goods to the destination port,and contact you to pick up the goods;All documents for customs clearance will be sent to you by international express after shipment.
4. Q: I am not familar with a new machine, how to use it?
     A: First, the machine is not too complex to make people feel fuzzy. Second, we provide operation manual and DVD to guide you. Then, we also provide Free training in our factory if you were possible to come;
         We provide engineers for overseas technic support; We provide 24 hours/7 days technic support all year around.
5. Q: How can I change the broken parts if the machine got problems?
    A:We provide some wearing parts for you when the first time you purchase goods from us;We also provide wearing parts for your choice.

All accessories of our machinery is available at Factory-price all Year around. We always do our best to solve our customers' worries.

Contact:
We provide Turn-Key solution for all drilling project. No matter what you need, the professional drill machine, drill parts or just professional suggestion, you can send us an email and we will respond and offer you Complete set of Drilling Machine as per your requirements.
