• Model NO.：DFL-300
• Drilling Way：Rotary
• Type：Rotary Drilling Rig
• Application：Water Well, Blast Hole, Geothermal Hole, etc
• Color：Customized
• Drill Depth：300m
• Drill Diameter：100-200mm for Rock, 500-1000mm for Soil
• Drill Pipe Length：3000mm
• Drill Pipe Diameter：89,108mm
• Weight：7200kg
• Power：110kw
• Drill Efficiency：15-20m H
• Usage：Borehole, Bore Well, Water Well
• Power Type：Diesel
• Transport Package：Container
• Specification：5700*2100*3200mm
• Trademark：DEFY
• Origin：Henan, China
• Production Capacity：100sets,Month

Basic Info.

Model NO. DFL-300 Drilling Way Rotary Type Rotary Drilling Rig Application Water Well, Blast Hole, Geothermal Hole, etc Color Customized Drill Depth 300m Drill Diameter 100-200mm for Rock, 500-1000mm for Soil Drill Pipe Length 3000mm Drill Pipe Diameter 89/108mm Weight 7200kg Power 110kw Drill Efficiency 15-20mH Usage Borehole, Bore Well, Water Well Power Type Diesel Transport Package Container Specification 5700*2100*3200mm Trademark DEFY Origin Henan, China Production Capacity 100sets/Month

Product Description

Product Description

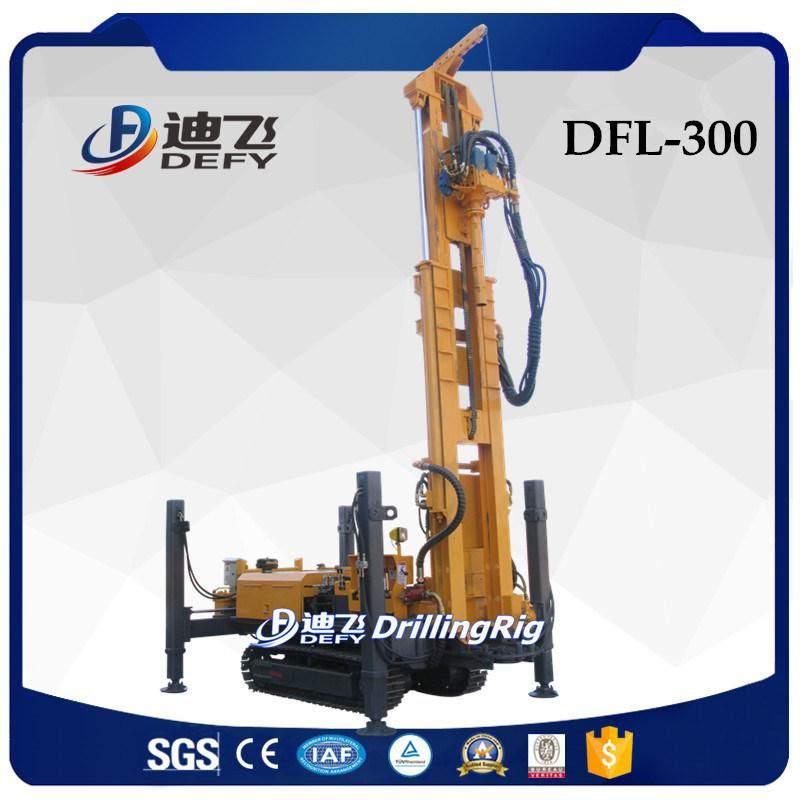

DFL-300 drilling machine is a kind of light and high efficient multi-functional water well drill rig with steel track, it is widely used in engineering construction for drilling wells,monitoring wells and ground-source heat pump air-conditioner,and also applied in hole blasting, bolting and anchor cable,etc.
The rig is a unique patented products:Top drive rotary power head and a hydraulic rotary disk rotating mechanism, hydraulic motors, hydraulic winch chain propulsion for deep hole drilling in institutions and
mast. The driller adopts the rotary drilling technology of reverse circulation drilling technology, mud,
compressed air DTH hammer drilling technology, can finish cover layer, sand gravel, sand, rock layer
stratum, large diameter deep hole construction. The drill, drill pipe rack lift unloading, leveling supporting legs, lifting, walking and other auxiliary movement by the hydraulic system, not only can improve the
working efficiency, and reduces the labor intensity of operators.

Parameter

1	Item	unit	specification
2	Max. drilling depth	m	300m
3	Drilling caliber	mm	φ100-300 for rock  Φ500-1000 for soil
4	Diameter of Driven rod	mm	108*108
5	Work pressure	MPa	1.05-2.46
6	Unit Length of drill pipe	mm	3000
7	Diameter of drill pipe	mm	89,108mm
8	Rotary speed	rpm	0-50,0-100
9	Rotary torque	N.m	5400
10	Lower rotary hydraulic turntable	N.m	35000
11	Hydraulic hoist	KN	100
12	Engine power	kw	110

Features
1. Guide lane matches with roller skate, it can reduce the sliding resistance,and also reduce friction and
improve the lifetime of extension guide.
2.Hydraulic power head and a hydraulic rotary disc motor chain, drilling and hydraulic winch binding, new drilling method, reasonable power matching.
3.Set covering layer, stratum two kinds of method in one construction drill
4.Traveling to tracked self-propelled structure, optional 6x4 heavy truck to car type well drilling.
5.The rig is very convenient with air compressor and DTH hammer, using compressed air DTH hammer drilling technology, complete the bedrock drilling operation.

What customer concern:
1. Q: Whether you are a manufacture or trading company?
     A: We are a professional manufacturer of drilling equipment and you are welcomed to visit our factory at any time. We have the core technology and keep researching and developing all the time, to provide high quality products and best service.
2. Q:  I don't which machine to choose because of there are so many machines.
    A:  As a professional manufacturer, we provide turn-key solution of drilling machine. If you have any doubt about what type of the machine you need, send an email to us and your question will be solved quickly.
3. Q: I am not familar with a new machine, how to use it?
     A: First, the machine is not too complex to make people feel fuzzy. Second, we provide operation manual and DVD to guide you. Then, we also provide Free training in our factory if you were possible to come;
4. Q: How can I change the broken parts if the machine got problems?
    A:We provide some wearing parts for you when the first time you purchase goods from us;We also provide wearing parts for your choice.

Complete list of drilling rig and drilling tools for your project. For more details, please kindly send us an inquiry or contact our sales people directly. Thank you!
