Drilling Rig

Home > Product > Water Well Drilling Rig

DTH Rock Blast Hole Drilling Rig Water Borehole Machine

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
  • Certification：ISO 9001:2008, SGS, BV
  • Condition：New
  • Motor：AC Motor or Diesel Engine
  • Drill Hole Diameter：80-105mm
  • Drill Hole Depth：20m
  • Bit Type：DTH Bit

Base Info

  • Model NO.：DFY-100
  • Drilling Way：Impactor
  • Type：Rotary Drilling Rig
  • Power：20.2kw
  • Drilling Hole Diameter：80-105mm
  • Stratum：Soil, Gravel, Weathered Stone, Concrete
  • Name：Rock Blast Hole Drilling Rig, Borehole Drilling Ma
  • Dimension：4100*2030*2020mm
  • Weight：3300kg
  • Usage：Ore, Coal, Farm Irrigation, Pile Foundation
  • Power Type：Diesel
  • Transport Package：as Requirement
  • Specification：drilling depth 20m
  • Trademark：DEFY
  • Origin：China Mainland
  • Production Capacity：50sets,Month

Description

Rigidity rock

F=6-20

Diameter of hole

 80-105mm

Optium drilling depth

20m

Working pressure

5-7bar

Air consumption

≥10m³/min

Rotation speed

0-65rpm

Lift power

15KN

Size of drill pipe

Φ60*2000mm

gradeability

30°

groundclearance

254mm

Walking speed

2.0 km/h

Sliding carrier pitch angle

-118.5°  +23.5°

Sliding carrier swing angle

-11.5  + 36.5°

Sliding carrier supply

900mm

Size of drill rig

4100*2030*2020mm

Weight of drill rig

3300kg

remark

Pneumatic and hydraulic power

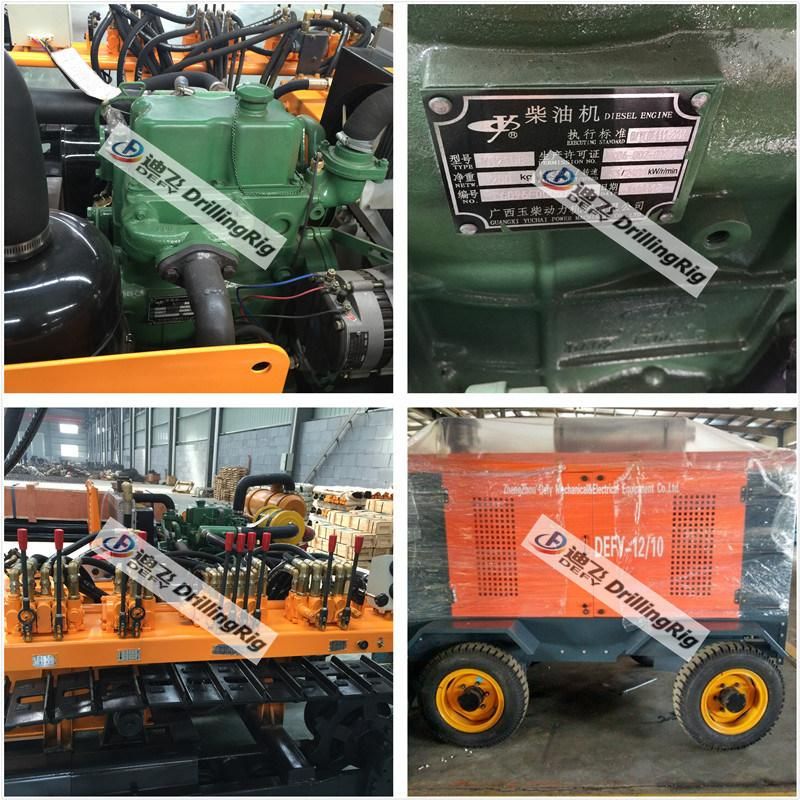

 Drilling rig parts and related air comrpessor:

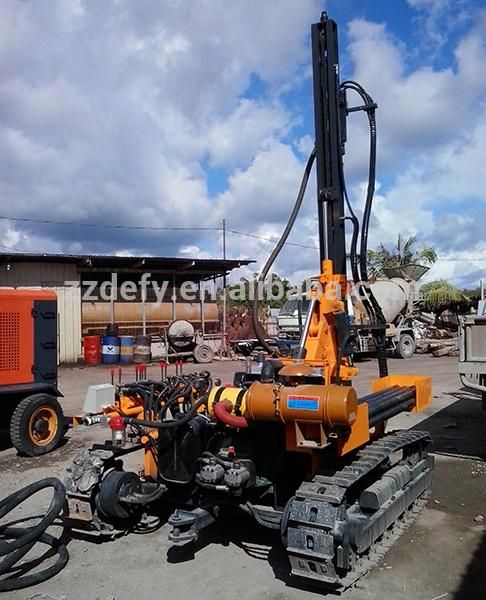

DTH Rock Blast Hole Drilling Rig Water Borehole Machine

Working site of DFY-100 blasting drilling rig in Philipines:

DTH Rock Blast Hole Drilling Rig Water Borehole Machine

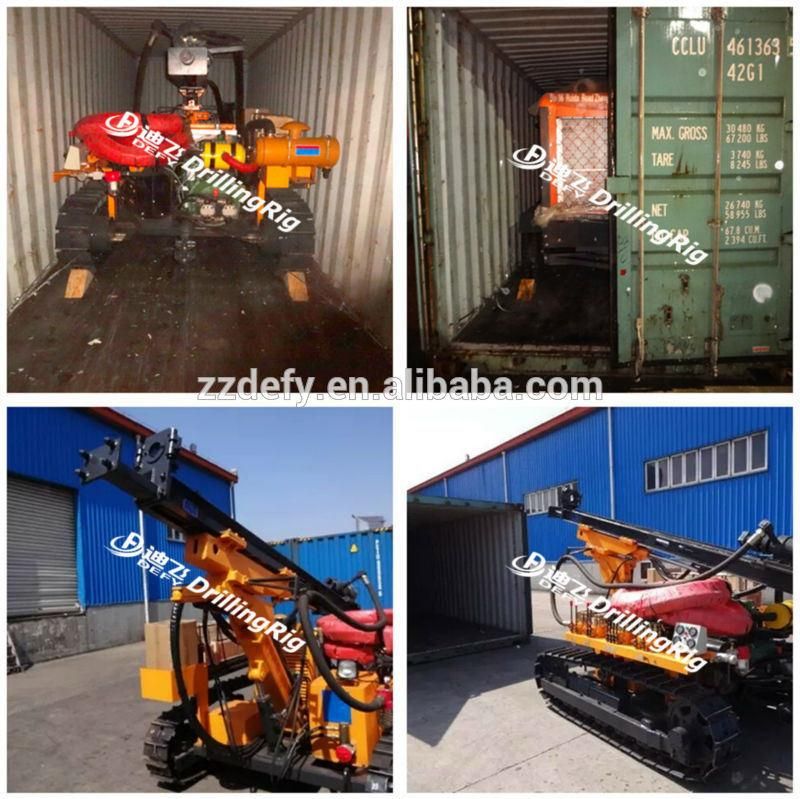

 Delivery of blasting drilling rig:

DTH Rock Blast Hole Drilling Rig Water Borehole Machine

DERY Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.

About Defy:

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advice whenever you need.
DTH Rock Blast Hole Drilling Rig Water Borehole Machine


Thanks for browse our products information. If you have any question or want to know more about drilling rig, Pls contact me directly:

ANDREW LI
