Drilling Rig

Home > Product > Water Well Drilling Rig

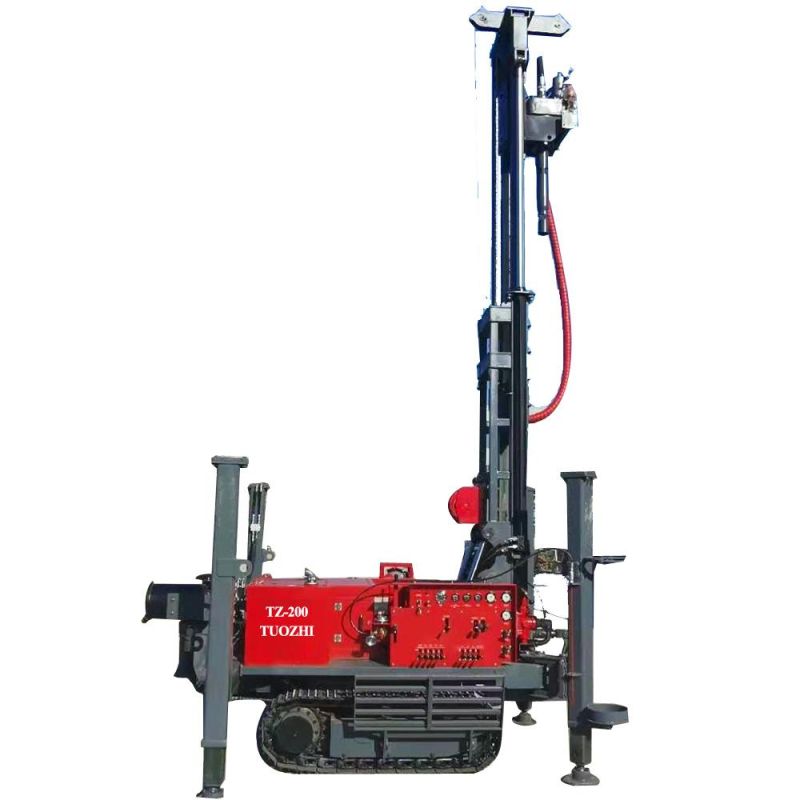

200m Mud Pump Drilling Method Water Well Drilling Rig

Liuzhou Tuozhi Mine Tech Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：Diesel
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>200m
  • Bit Type：DTH

Base Info

  • Model NO.：TZ-200
  • Drilling Way：Impactor
  • Type：Crawler
  • Power：Hydraulic
  • Configuration：Portable
  • Warranty：One Year
  • Transport Package：Export Standard
  • Specification：5400x1800x2480mm
  • Trademark：TZ
  • Origin：Guangxi Liuzhou
  • HS Code：8430412900
  • Production Capacity：100

Description

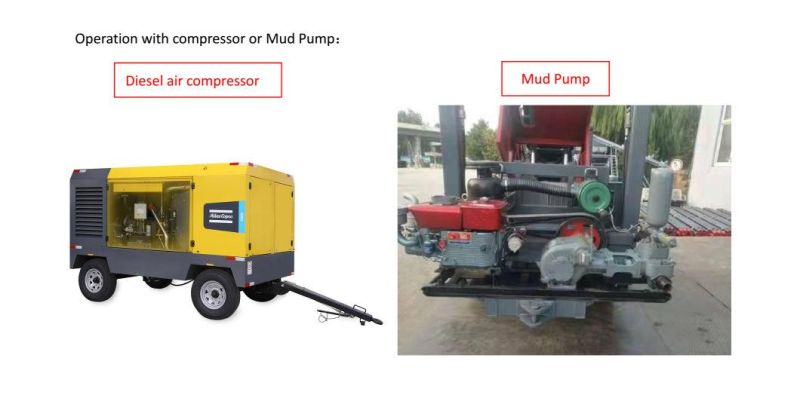

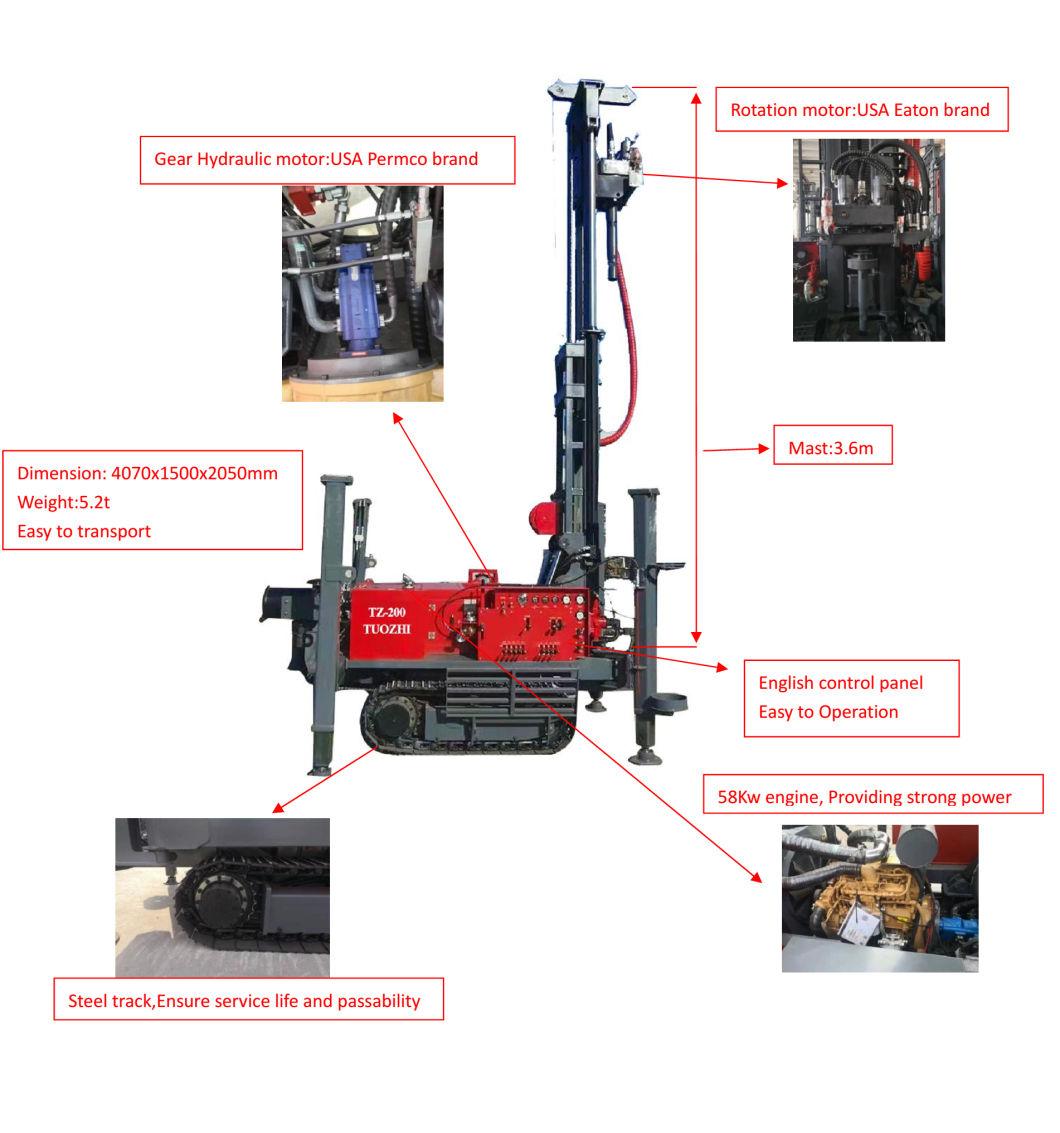

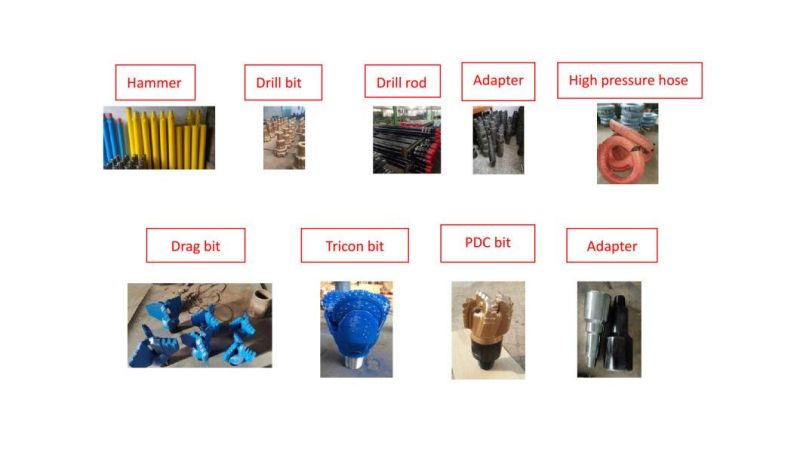

crawler water well drilling rig TZ-200 Max Drilling diameter254mmThe  drilling depth200mAdapt to rock hardnessf=6-20Work  pressure1.2-3.5MPaAir  consumption16-55m3/minRotary  speed70r/min,140r/minMaximum  rotary torque5000N.m / 2500NmMaximum  lifting force10tMax fonwarding force4.5TDrill rod length3MRecommendation Drill rod diameter89mm or 76mmMax lifting speed30m/mimMax fonwarding speed60m/mimwindlass lifting force1.1TWalking  speed2.5km/hEngine power58kwGrade ability21Outer size(length×width×height)4070×1500×2050mmWeight5.2tDrilling methodTop driven hydraulic rotation/forwarding or mud pump Details determine quality200m Mud Pump Drilling Method Water Well Drilling RigYou decide how to drilling,Compressor or Mud Pump200m Mud Pump Drilling Method Water Well Drilling Rig Drilling Tools:

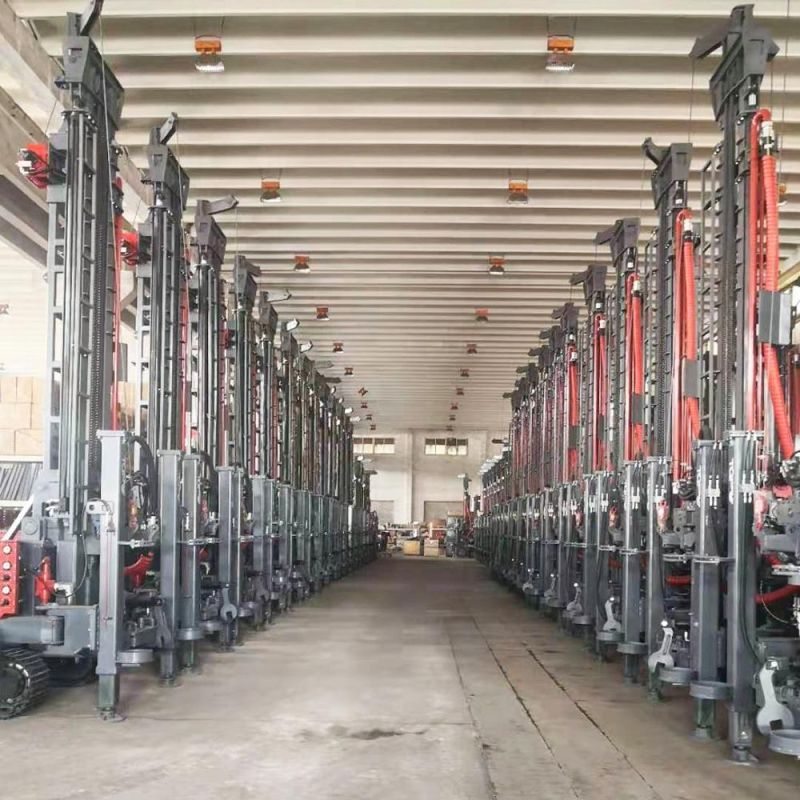

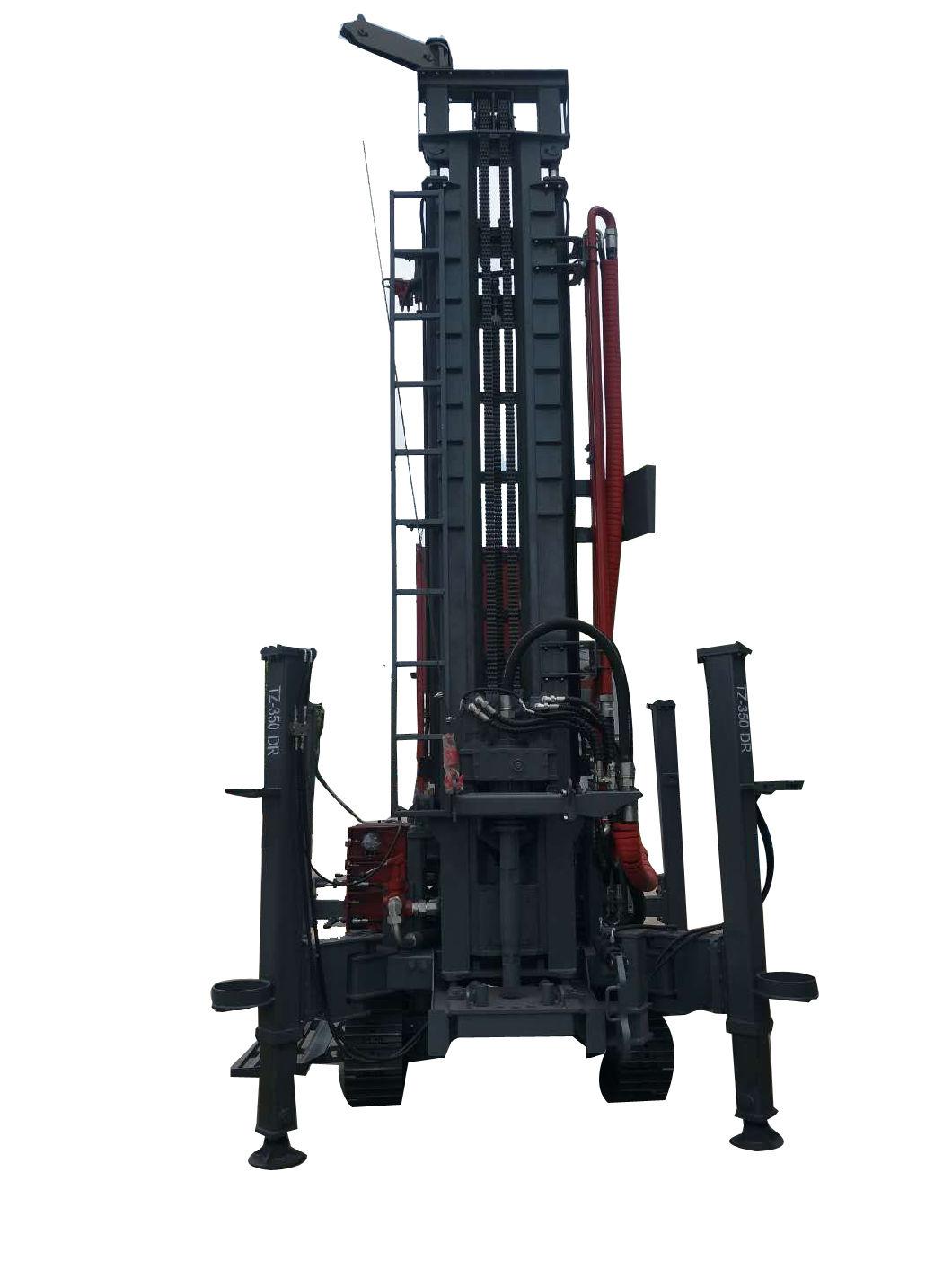

200m Mud Pump Drilling Method Water Well Drilling RigProducts display:200m Mud Pump Drilling Method Water Well Drilling Rig200m Mud Pump Drilling Method Water Well Drilling Rig200m Mud Pump Drilling Method Water Well Drilling Rig
