• Model NO.：DR-150
• Type：Crawler or Wheel
• Usage：Pile Driver,Drill Hole Flling Pile Construction
• Engine：Cummins
• Drilling Diameter：500-1500mm
• Power Source：Diesel
• Drilling Depth：30m
• Drill Rod：Kelly Bar
• Application：New
• Engine Power：151kw
• Color：Yellow and Red
• Packing：Customized
• Working State Width：4200mm
• Transport Status Width：2800mm
• Transport Status Height：3500mm
• Chassis：Retractable Chassis
• Extra Features：Electric
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：12500mm*2800mm*3550mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-150 Type Crawler or Wheel Usage Pile Driver,Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1500mm Power Source Diesel Drilling Depth 30m Drill Rod Kelly Bar Application New Engine Power 151kw Color Yellow and Red Packing Customized Working State Width 4200mm Transport Status Width 2800mm Transport Status Height 3500mm Chassis Retractable Chassis Extra Features Electric Transport Package Rotary Drilling Rig Package According to The Custo Specification 12500mm*2800mm*3550mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details

The company's products have passed ISO, CE, SGS, CQC and other product quality system certifications, and the products are exported to 26 countries overseas. The maximum depth of this rotary drilling rig can reach 30 meters, and the drilling diameter is 500-1600 mm. For your needs, please feel free to contact me, thank you for browsing!




 Features
1.Excellent performance, fast lifting, large lifting weight, drilling rig can be 360 degree rotary construction.

2.Full hydraulic system control can ensure that all indexes of pile foundation verticality, hole position, hole depth and sedimentation thickness meet the requirements of construction specifications.

3.Driving power is strong, the power head acts directly on the drill bit and keeps the torque unabated during piling.

4.The hole wall drilled by rotary drilling rig has good stability, complete hole cleaning after hole completion and fast construction progress.


5.Small investment,quick gains:
The utility model also has high cost performance, wide application scope and high social and economic benefits;

6.The characteristic of stabilization, credibility, speediness and high capability which makes the Rotary Drilling Rig is favored.
Parameter


model	DR-150
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-40m
Diamension (mm)	12500X2800X3550mm
Total weight (t)	30T
Power head max output torque (KN.m)	150KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	158KW ,cummins ,water cooling ,turbo charger

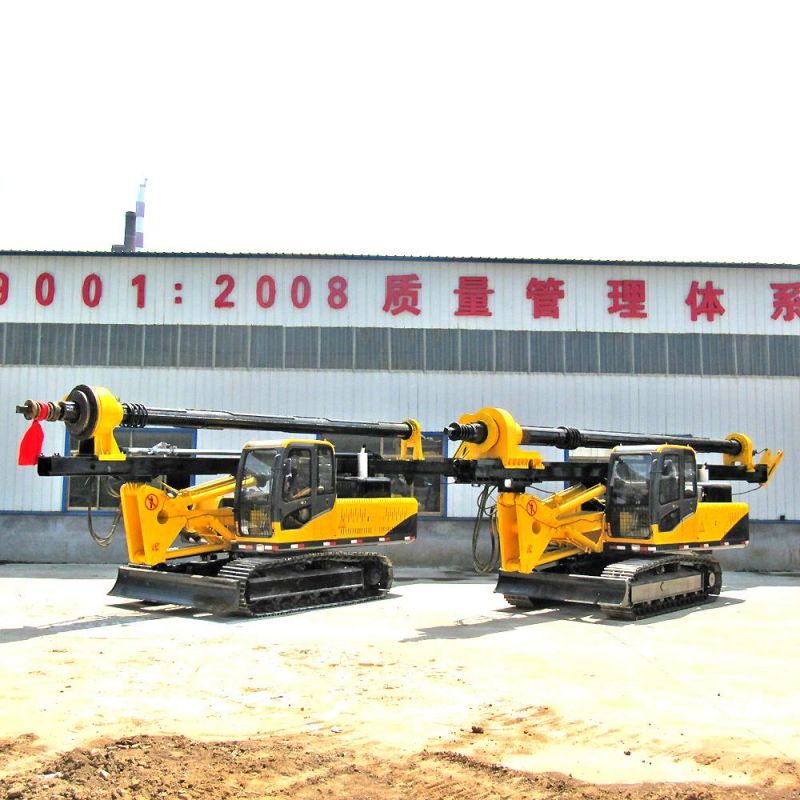

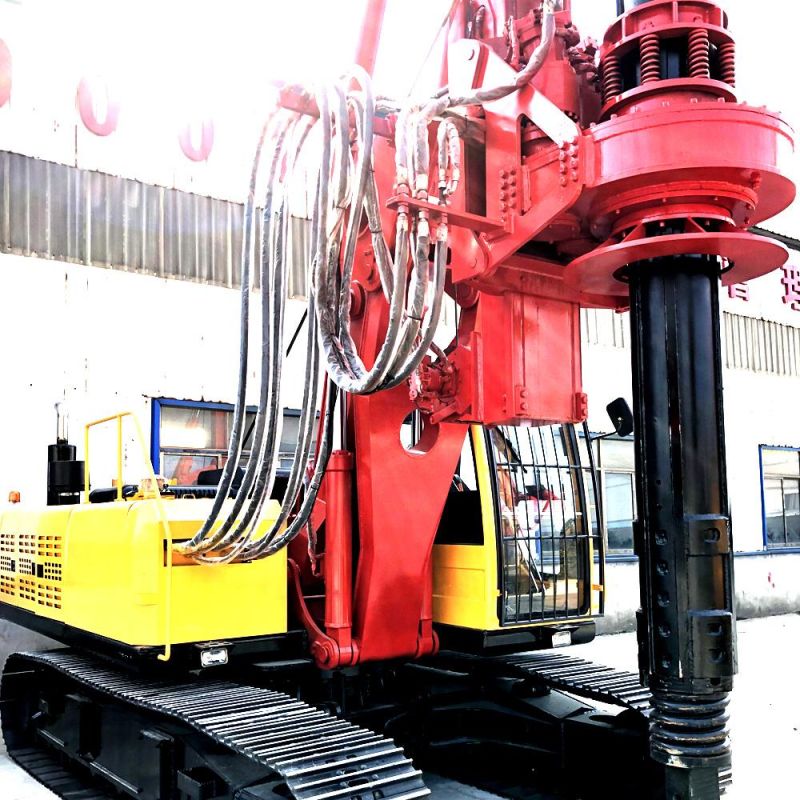

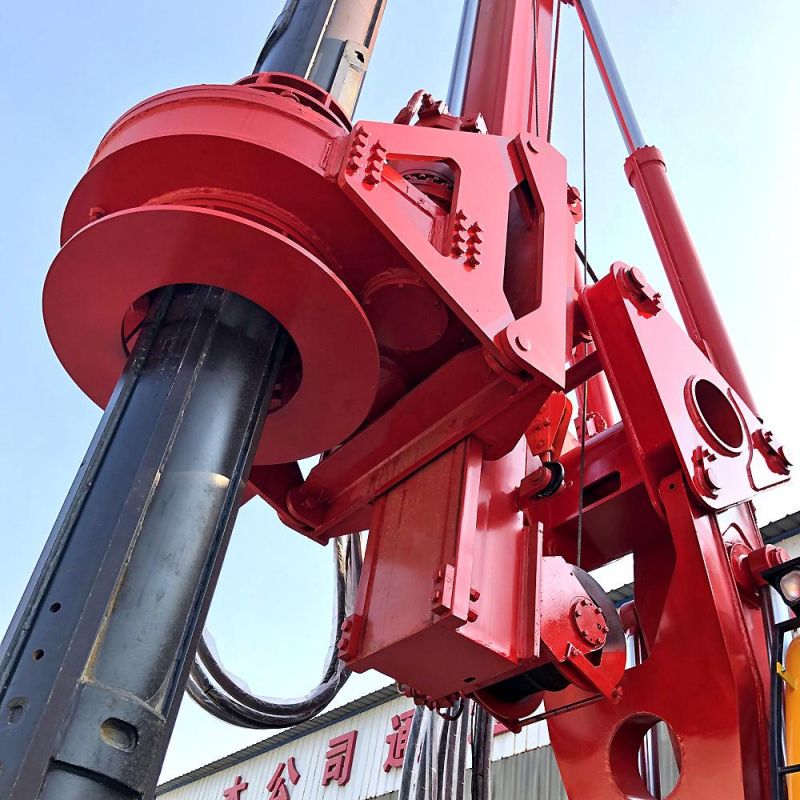

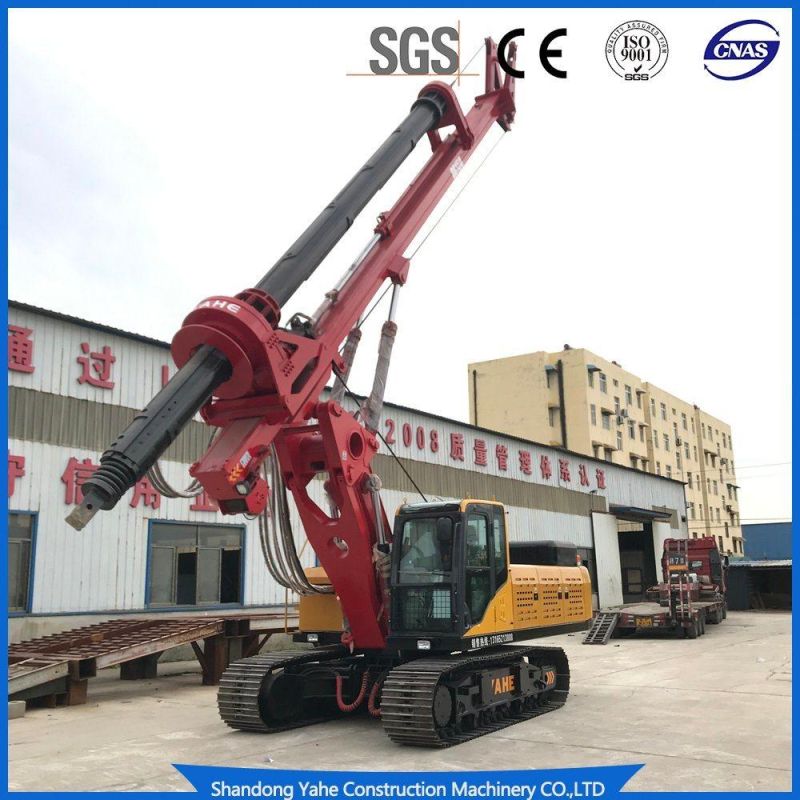

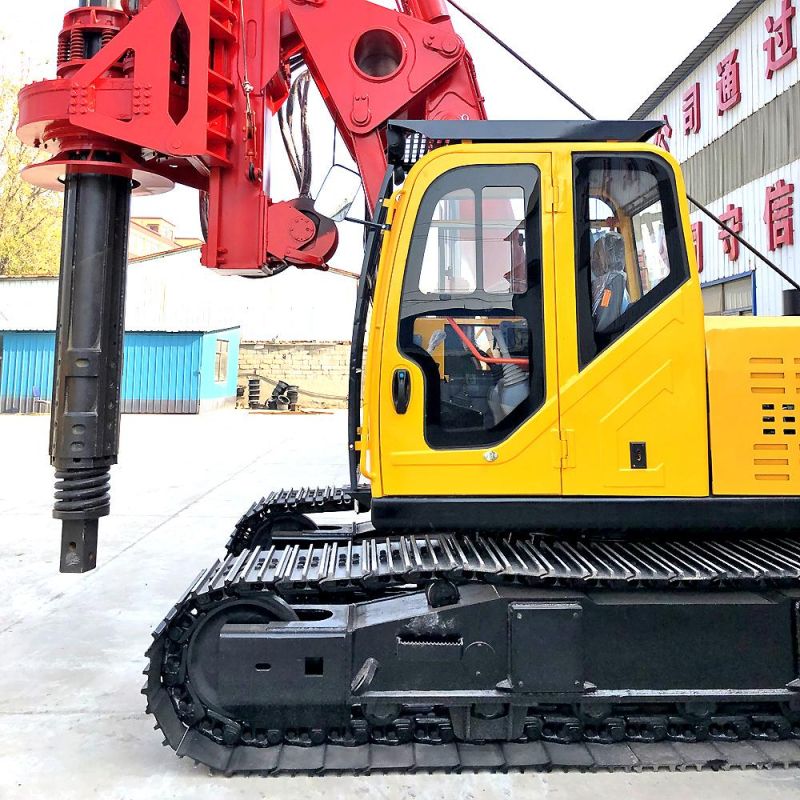

Machine Photos






Certification



 Company profile

     Shandong Yahe Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering.



 FAQ

1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
