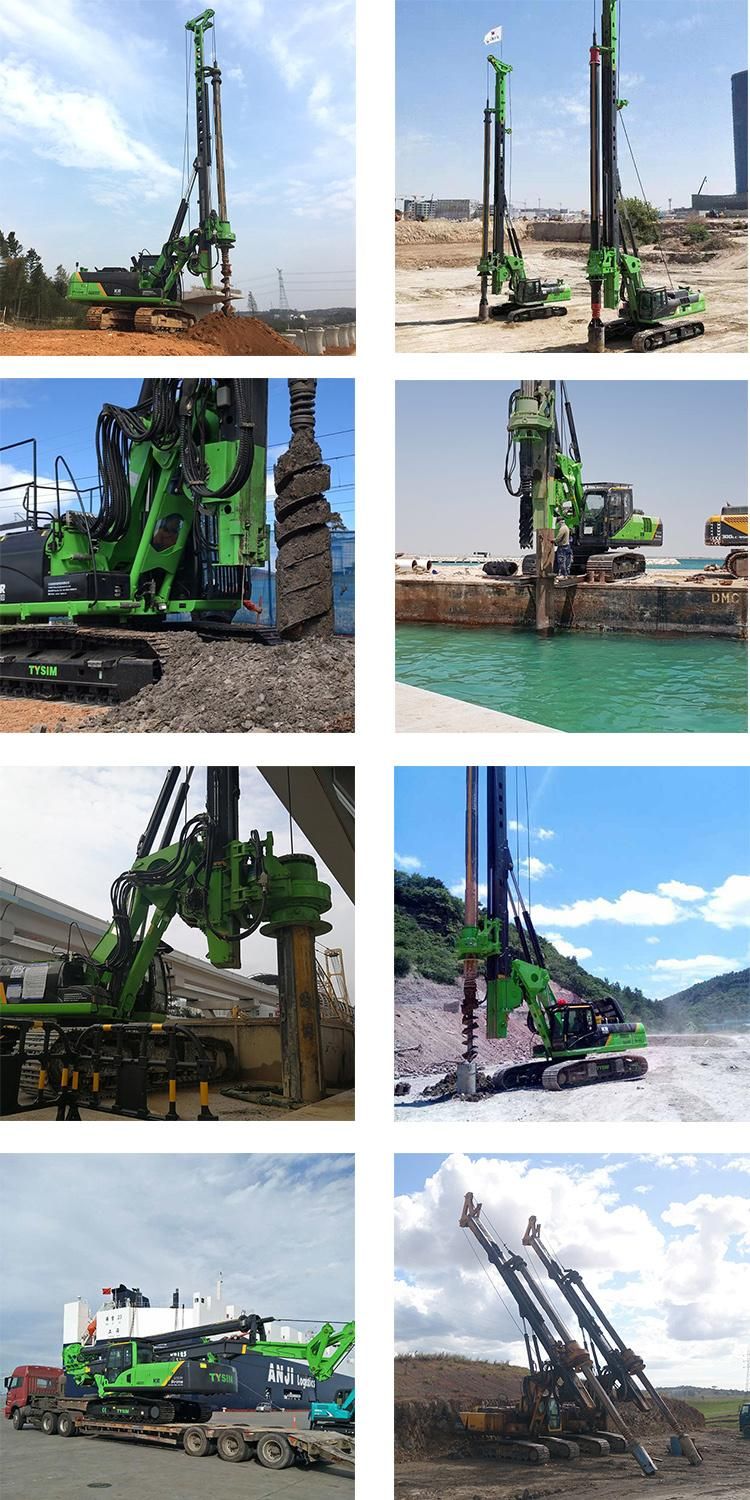

Tysim Kr300ds Hydraulic Low Head Room Piling Pile Driver with Max. Depth 26m and Diameter 2000mm

TYSIM Piling Equipment Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：2500
  • Drill Hole Depth：10-30m
  • Bit Type：Cone Bit
  • Drilling Way：Rotary

Base Info

  • Model NO.：KR300DS
  • Type：Crawler
  • Torque：320 Kn.M
  • Max. Diameter：2000 mm
  • Max. Drilling Depth：26m
  • Max. Crowd Pressure：220kn
  • Max. Crowd Pull：230 Kn
  • Main Winch Line Pull：230 Kn
  • Operating Height：11087 mm
  • Operating Width：4300mm
  • Transport Package：Bulk Pack
  • Specification：76 t
  • Trademark：Tysim
  • Origin：Jiangsu, China
  • HS Code：8431499900
  • Production Capacity：30pieces,Month

Description

Technical specification of KR330DS rotary drilling rigTorque320 kN.mMax. diameter2000 mmMax. drilling depth26mSpeed of rotation6~26 rpmMax. crowd pressure220 kNMax. crowd pull230 kNMain winch line pull230 kNMain winch line speed80m/minAuxiliary winch line pull110 kNAuxiliary winch line speed75m/minStroke(crowd system)2000mmMast inclination(lateral)±5°Mast inclination(forward)5°Max. operating pressure35 MPaPilot pressure3.9 MPaTravel speed1.5 km/hTraction force550 kNOperating height11087 mmOperating width4300mmTransport height3590 mmTransport width3000 mmTransport length10651 mmOverall weight76 tTysim Kr300ds Hydraulic Low Head Room Piling Pile Driver with Max. Depth 26m and Diameter 2000mm

Tysim Kr300ds Hydraulic Low Head Room Piling Pile Driver with Max. Depth 26m and Diameter 2000mm

Tysim Kr300ds Hydraulic Low Head Room Piling Pile Driver with Max. Depth 26m and Diameter 2000mm

Tysim Kr300ds Hydraulic Low Head Room Piling Pile Driver with Max. Depth 26m and Diameter 2000mmTysim Kr300ds Hydraulic Low Head Room Piling Pile Driver with Max. Depth 26m and Diameter 2000mm
Tysim Kr300ds Hydraulic Low Head Room Piling Pile Driver with Max. Depth 26m and Diameter 2000mm
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is 1 year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
