• Model NO.：DR-100
• Type：Crawler or Wheel
• Usage：Pile Driver,Drill Hole Flling Pile Construction
• Engine：Cummins
• Drilling Diamete：500-1800mm
• Power Source：Diesel
• Depth：20m
• Color：Customized
• Chassis：3700mm
• Track Width：600mm
• Weight：23t
• Drill Rod：Kelly Bar
• Engine Rated Power：110kw
• Power Head Speed：10-50rpm
• Maximum Travel Torque：40000n.M
• Drill Tools：Optional 500-1500 Drill Bit
• Transport Status Width：2600mm
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：11500mm*2400mm*3350mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-100 Type Crawler or Wheel Usage Pile Driver,Drill Hole Flling Pile Construction Engine Cummins Drilling Diamete 500-1800mm Power Source Diesel Depth 20m Color Customized Chassis 3700mm Track Width 600mm Weight 23t Drill Rod Kelly Bar Engine Rated Power 110kw Power Head Speed 10-50rpm Maximum Travel Torque 40000n.M Drill Tools Optional 500-1500 Drill Bit Transport Status Width 2600mm Transport Package Rotary Drilling Rig Package According to The Custo Specification 11500mm*2400mm*3350mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details

The borehole diameter is 450-1600 mm, and the borehole depth can reach 20 meters, which is suitable for pile foundation construction in infrastructure projects. It is used for drilling operations in loose soils such as sand, clay, and silty clay. It is widely used in water conservancy, port, foundation reinforcement, and continuous wall foundation engineering construction. Can meet the construction requirements of most basic engineering projects







Parameter

model	DR-100
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-20m
Diamension (mm)	11500X2400X3350mm
Total weight (t)	23T
Power head max output torque (KN.m)	100KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	120KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	151KW ,cummins ,water cooling ,turbo charger

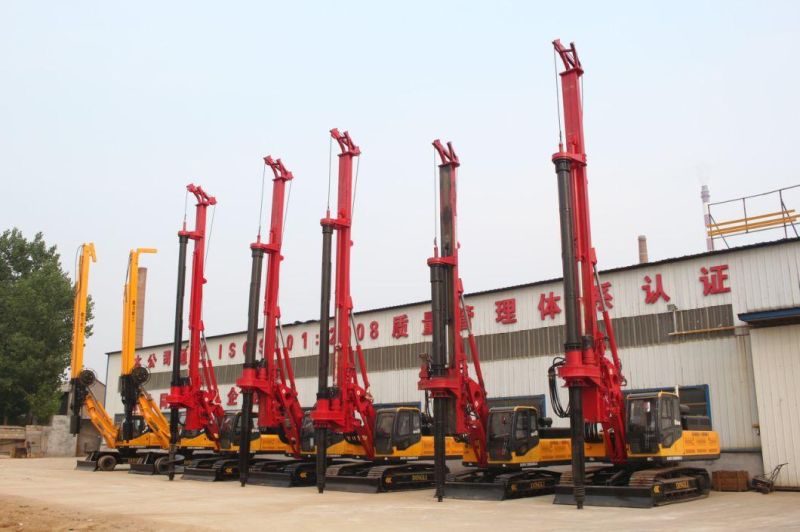

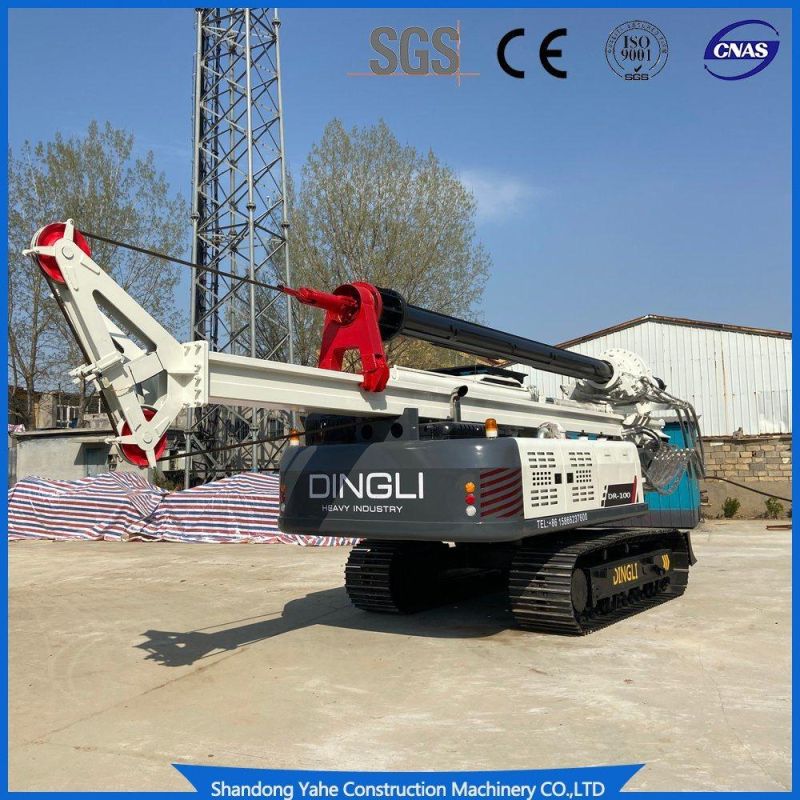

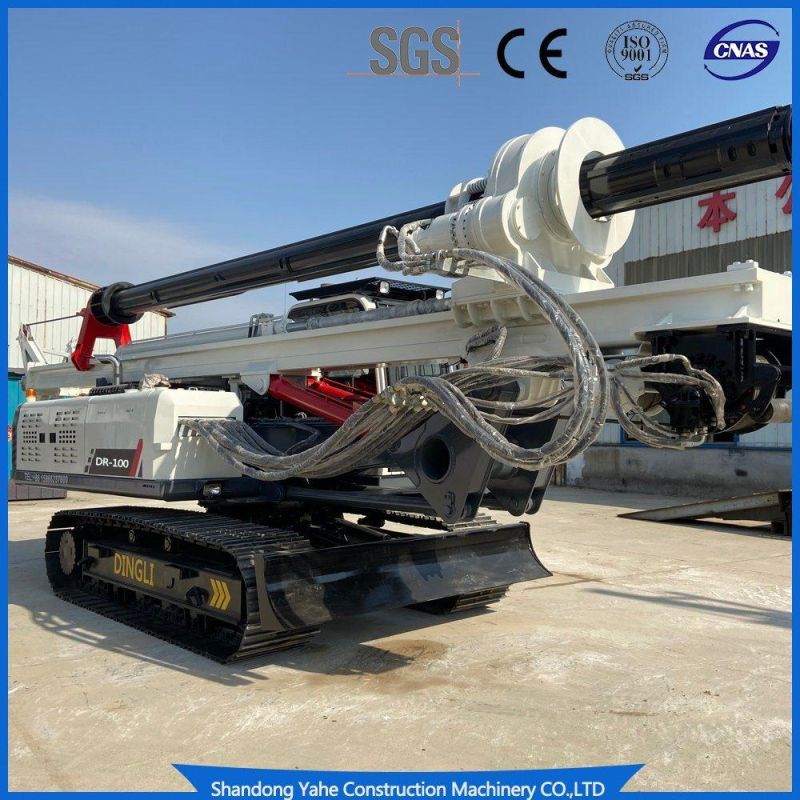

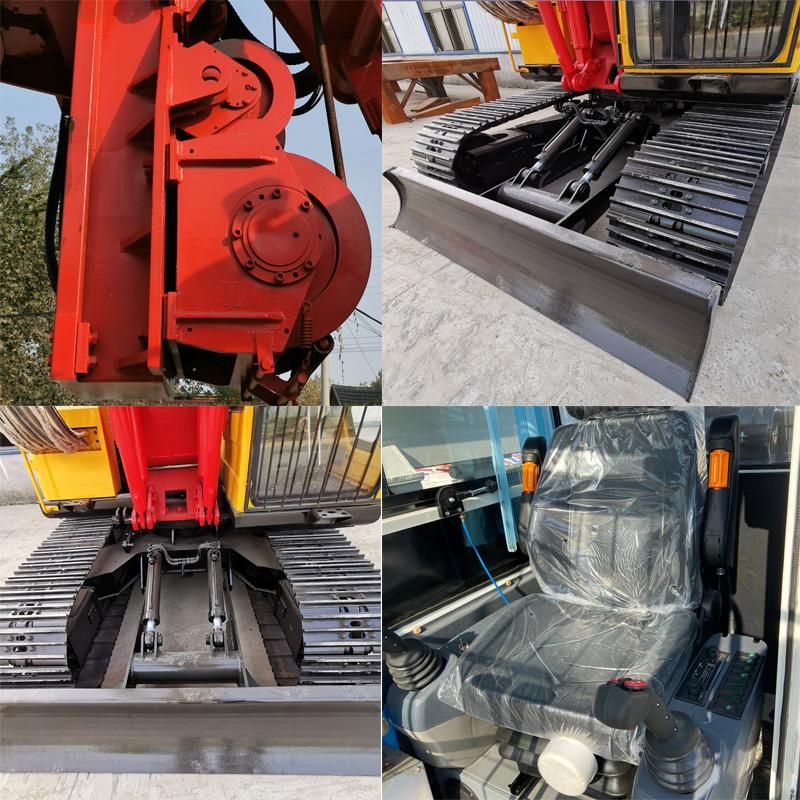

Machine Photos









Certification

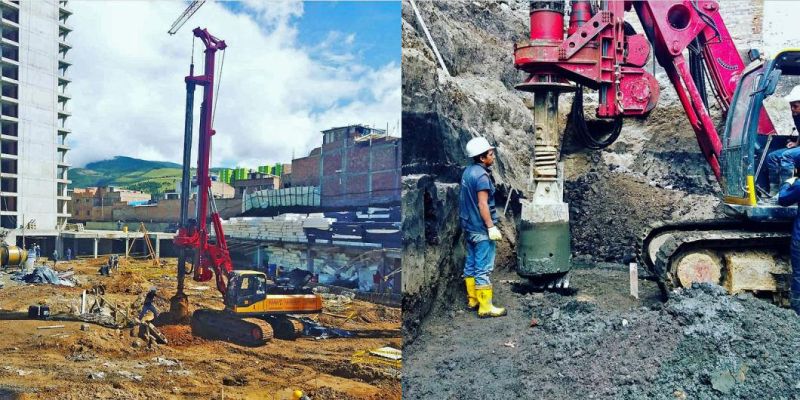

Customer feedback





Company profile

    Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.






   FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
