• Model NO.：DL-360
• Type：Crawler or Wheel
• Usage：Pile Driver,Drill Hole Flling Pile Construction
• Power Source：Diesel
• Drilling Diameter：500-1500mm
• Drilling Depth：30m
• Specifications：Crawler Drilling Rig
• Weight：26t
• Application：New Machine
• Chassis Length：4200mm
• Engine Power：126kw
• Drill Tools：Two Drill Bit
• Color：Customized
• Transport Status Width：2800mm
• Transport Status Height：3400mm
• Power Head Speed：10-50rpm
• Maximum Torque of Power Head：120kn.M
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：9800mm*2300mm*2900mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DL-360 Type Crawler or Wheel Usage Pile Driver,Drill Hole Flling Pile Construction Power Source Diesel Drilling Diameter 500-1500mm Drilling Depth 30m Specifications Crawler Drilling Rig Weight 26t Application New Machine Chassis Length 4200mm Engine Power 126kw Drill Tools Two Drill Bit Color Customized Transport Status Width 2800mm Transport Status Height 3400mm Power Head Speed 10-50rpm Maximum Torque of Power Head 120kn.M Transport Package Rotary Drilling Rig Package According to The Custo Specification 9800mm*2300mm*2900mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details

This product is an integrated drilling rig. The maximum drilling depth of the drilling rig is 30M, and the drilling diameter is 500-1600MM. Different drill bits can be selected. Short augers can be used for dry excavation, while rotary drills can be used for wet excavation. . A rotary excavator with a hammer can be used to drill holes in hard ground, and if a drilling tool is used, it can expand at the bottom of the hole. The rotary excavator adopts multi-layer telescopic drill pipe, which has short support time, low labor intensity, no sludge discharge and cost saving, and is especially suitable for urban infrastructure construction.



 Features

1.The construction noise is low, does not affect human health, environmental protection, energy saving and does not pollute the environment.

2.Workbench can be moved back and forth, which can drive both small and large diameter piles.

3.Excellent performance, fast lifting, large lifting weight, drilling rig can be 360 degree rotary construction.

4.Full hydraulic system control can ensure that all indexes of pile foundation verticality, hole position, hole depth and sedimentation thickness meet the requirements of construction specifications.

5.The hole wall drilled by rotary drilling rig has good stability, complete hole cleaning after hole completion and fast construction progress.

6.The characteristic of stabilization, credibility, speediness and high capability which makes the Rotary Drilling Rig is favored.Parameter

Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-30m
Diamension (mm)	11500X2800X3400mm
Total weight (t)	25T
Power head max output torque (KN.m)	120KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	151KW ,cummins ,water cooling ,turbo charger

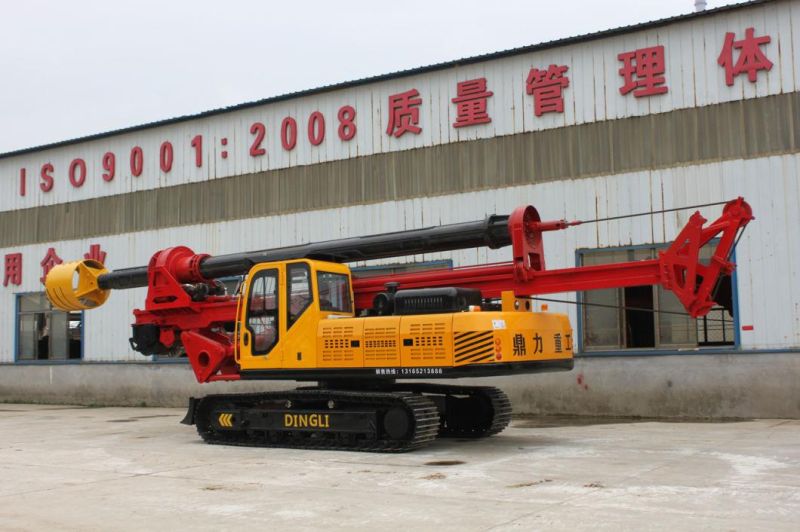

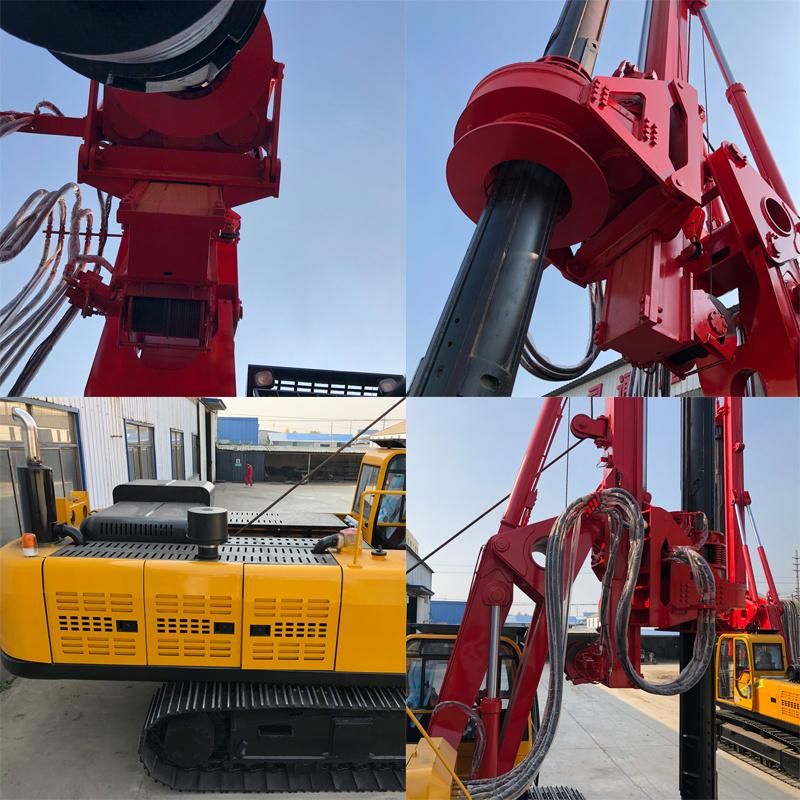

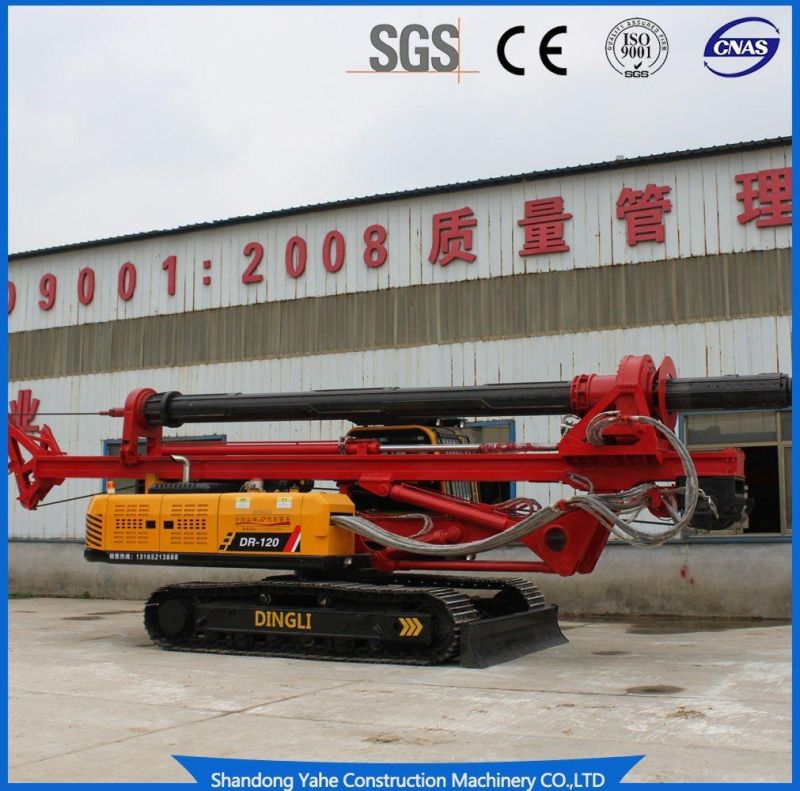

Product photo

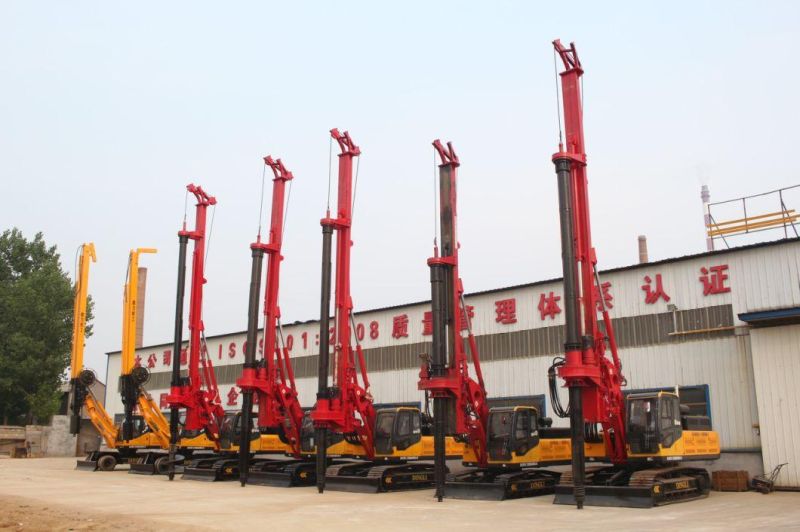

Company profile

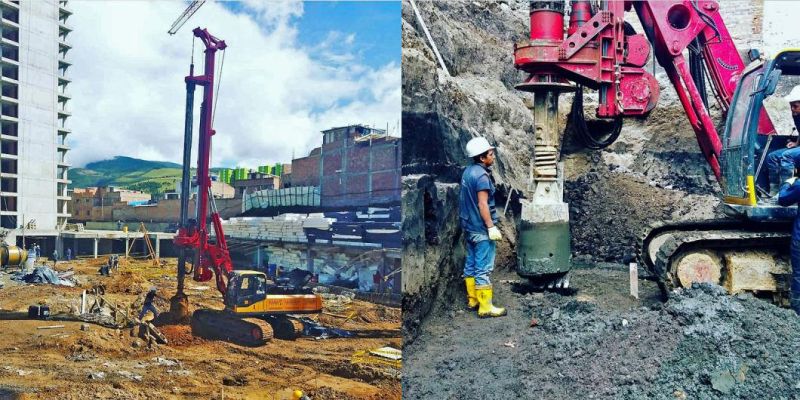

 Shandong Yahe  Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering.


 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
