• Model NO.：DL-360
• Type：Wheel
• Usage：Pile Driver,Drill Hole Flling Pile Construction
• Drilling Diameter：500-1800mm
• Power Source：Diesel
• Maximum Depth：20m
• Travel Drive：Mechanical
• Drill Rod Type：Square Drill Pipe
• Drive System：All Wheel Drive Tyoe
• Torque：33000
• Whole Weight：14tons
• Engine：Cummnis ,Weichai,Yuchai ,Isuzu
• Whether Can Be Customized：Yes
• Drilling Tools：Auger,Bucket ,Open Bucket Drill Bit
• Whether Have Winch：Yes
• Whether Can Lift Casing：Have Hook
• Chassis Length：3700mm
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：9800mm*2200mm*2950mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DL-360 Type Wheel Usage Pile Driver,Drill Hole Flling Pile Construction Drilling Diameter 500-1800mm Power Source Diesel Maximum Depth 20m Travel Drive Mechanical Drill Rod Type Square Drill Pipe Drive System All Wheel Drive Tyoe Torque 33000 Whole Weight 14tons Engine Cummnis /Weichai/Yuchai /Isuzu Whether Can Be Customized Yes Drilling Tools Auger/Bucket /Open Bucket Drill Bit Whether Have Winch Yes Whether Can Lift Casing Have Hook Chassis Length 3700mm Transport Package Rotary Drilling Rig Package According to The Custo Specification 9800mm*2200mm*2950mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details
It is widely praised by customers for its compact size, powerful functions and high cost performance. The drilling rig is equipped with a four-drive power transmission system and a hydraulic expansion center of gravity. The upper body can be rotated 360 degrees stably, which increases the working range and area. The maximum drill rod depth of the drilling rig can reach 20 meters, and the drilling radius is 500-1500MM.





Features

1.Wide scope of application, high construction efficiency, stable performance, environmental protection and energy saving

2.The construction noise is low, does not affect human health, environmental protection, energy saving and does not pollute the environment.

3.Driving power is strong, the power head acts directly on the drill bit and keeps the torque unabated during piling.

4.Excellent performance, fast lifting, large lifting weight, drilling rig can be 360 degree rotary construction.

5.Full hydraulic system control can ensure that all indexes of pile foundation verticality, hole position, hole depth and sedimentation thickness meet the requirements of construction specifications.

6.The hole wall drilled by rotary drilling rig has good stability, complete hole cleaning after hole completion and fast construction progress.

7.The characteristic of stabilization, credibility, speediness and high capability which makes the Rotary Drilling Rig is favored.
Parameter


model	DL-360
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-30m
Diamension (mm)	9800X2200X2950mm
Total weight (t)	13T
Power head max output torque (KN.m)	24000N.m
Rotary speed (r/min)	10-30RPM
Winch max lifting force	10KN
Winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	25Mpa
pilot pressure	12Mpa
Diesel engine power (KW)	126KW,weichai,water cooling ,turbo charger
Is it customizable?	Yes

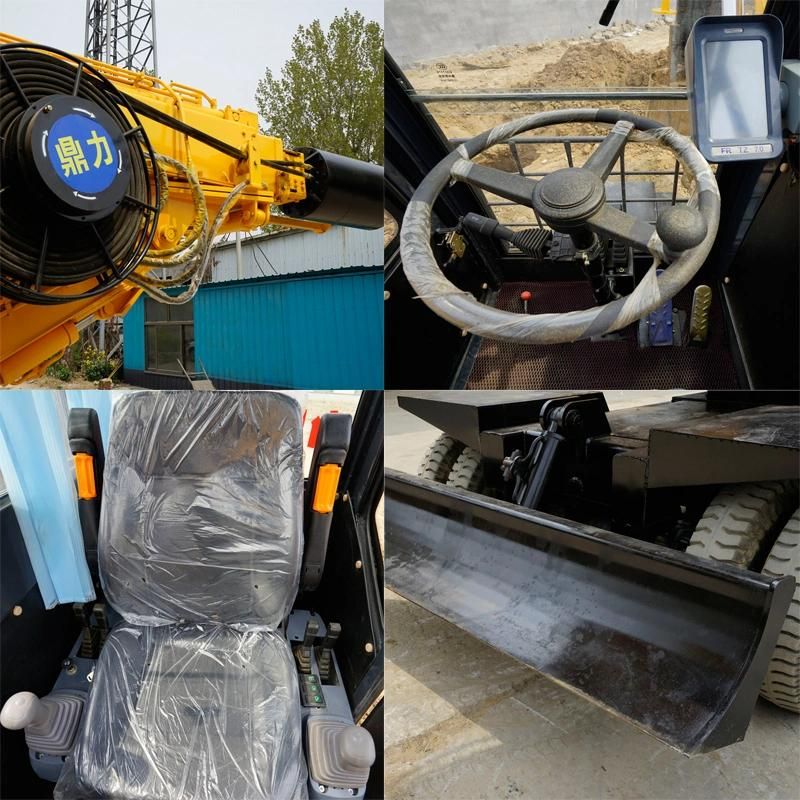

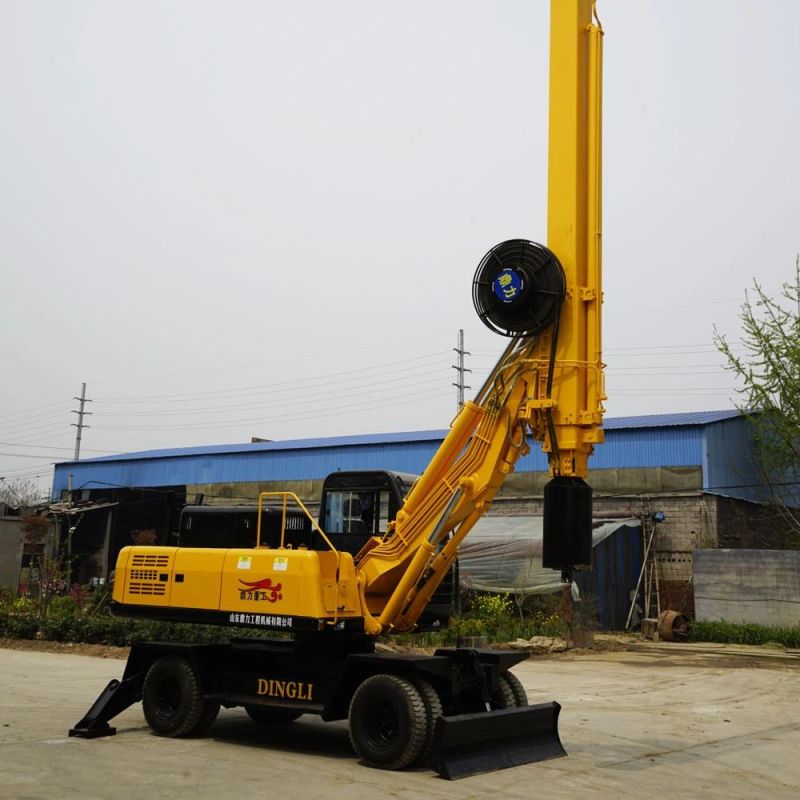

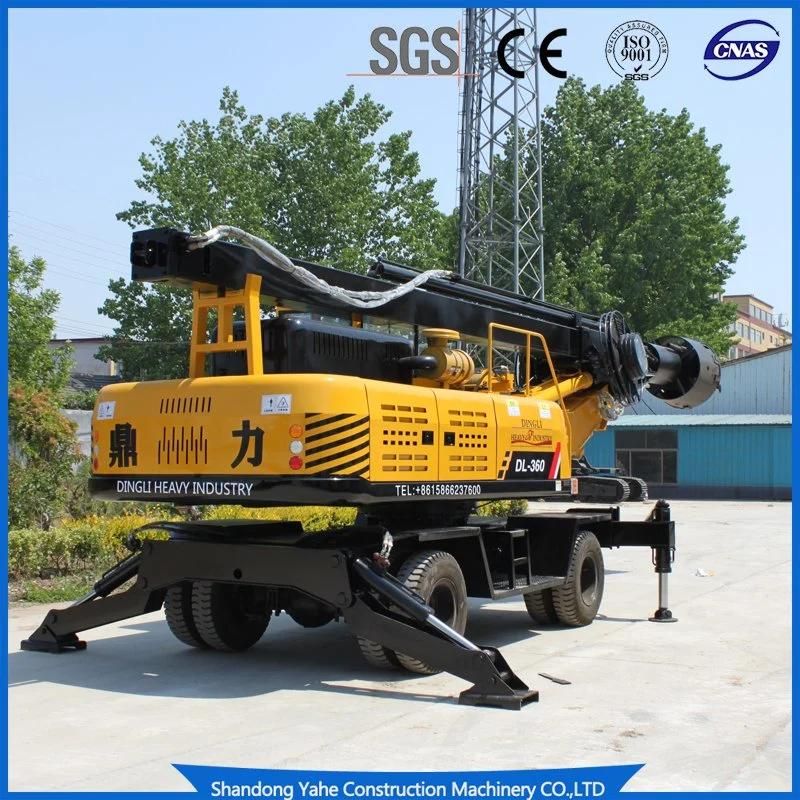

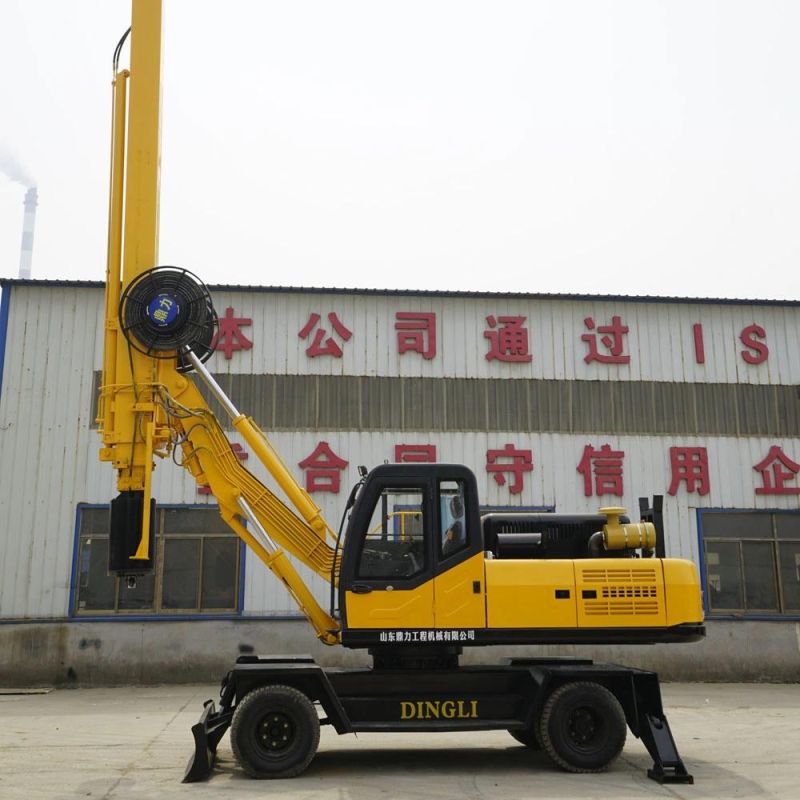

Machine Photos






Certification







Our service


1.Pre-sale service:

1) DingLi will provide production design, quotation sheet, working sites video, machinery photos.  2) Welcome to visit us at any time, we will pick you up.

2. Sale service:

1) Keep clients updated when our company gets advance payment. 2) Confirm production details with clients. 3) Take photos and send all pictures to customers during production. 4) Inspection and testing the product before delivery;  5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.  6) logistics service if needed.

3. After Sale service:

1) Provide foundation drawing to the clients for installation. 2) Besides, our engineers are available to help with installation and workers training. 3) Repairing and maintenance if any problem during the warranty.

 Exhibition
