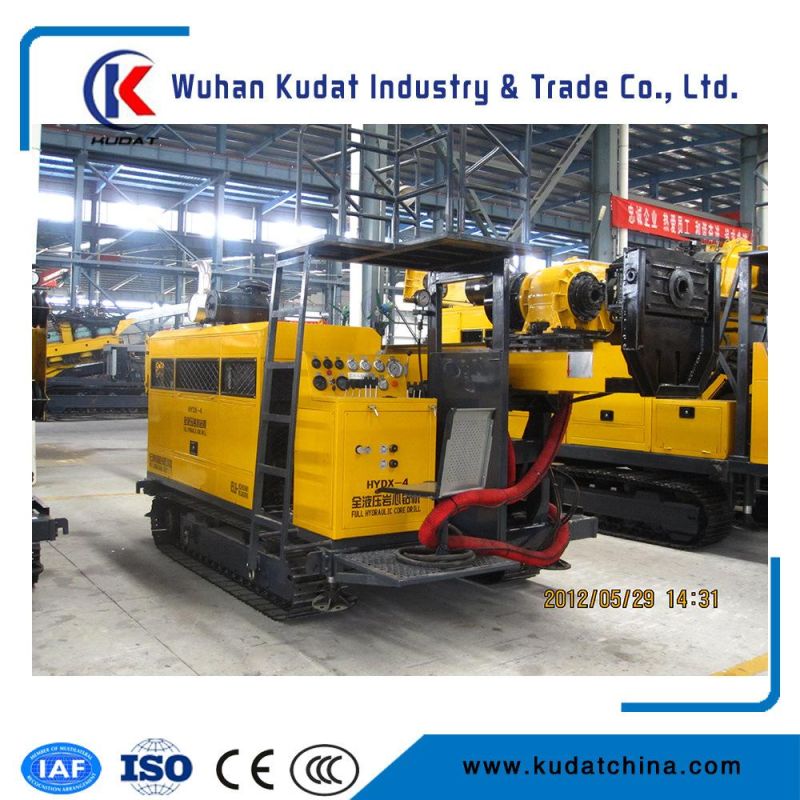

Full Hydraulic Core Drill Rig Machine
Wuhan Kudat Industry & Trade Co., Ltd.- Condition:New
- Drill Hole Diameter:250-300mm
- Drill Hole Depth:100-150m
- Bit Type:Cone Bit
- Drilling Way:Compound
- Type:Crawler
Base Info

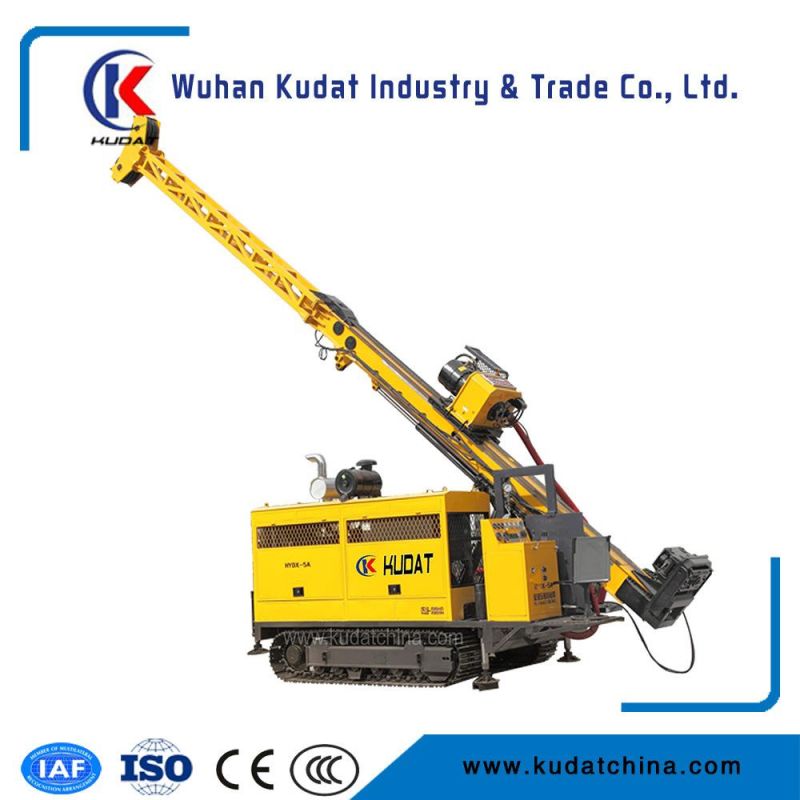

- Model NO.:HYDX-5A
- Diesel Engine:Cummins 6CTA8.3-C195
- Displacement:8.3L
- Power:195HP
- Rated Rpm:2200rpm
- Max. Torque:4650 N
- Hold Diameter:121 mm
- Max. Lifting Capacity of Spindle:150 Kn(33720 Lbf)
- Weight:13000 Kg(28665 Lb)
- Dimensions:5600*240*2650mm
- Transport Way:Steel Crawler
- Transport Package:Naked Packing
- Specification:Rated power 145KW
- Trademark:KUDAT
- Origin:China
- HS Code:8430412900
- Production Capacity:2000PCS,Year
Description
Diesel EngineModel Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) Displacement 8.3L(2.19 US Gallons) Power 145kW (195HP) Rated RPM(Factory setting) 2200rpm Drilling Capacity BQ 1500 m(4920 feet) NQ 1300 m(4264 feet) HQ 1000 m(3280 feet) PQ 680 m(2230 feet) Drill Head Rotation Motor Double Hydraulic Motors -variable and Reversible
Maker:SAUER-DANFOSS RPM Two Shifts/ Stepless Change 0-1145 RPM Ratios 1st 8.776:1
2nd 2.716:1 Head Opener sidewise sliding way with hydraulic drive Hydraulic Chuck(PQ) Hydraulically opened, Disc Spring Clamping, Normally Closed Type
Axial Holding Capacity of 222 400 N Max. Torque 4650 N@m(3427 lbf@ft) Hold Diameter 121 mm(4.76 inch) Max. Lifting capacity of Spindle 150 kN(33720 lbf) Max. Feeding Power 75 kN(16860 lbf) Primary Pump Package Axial Piston variable displacement Triplex pump for driving of Drill Head Rotation, Main Hoist, Mud Pump & Line Winch. Maker: DANFOSS
1st Pump:150LPM at 28.5MPa
2nd Pump:120LPM at 25MPa
3rd Pump:102 LPM at 25MPa Hydraulic Tank Capacity 420 L(111 US Gallons) Capacity of Main Hoist Hoisting Speed (single wire) 38-70m/min(bare drum) Hoisting force (single wire) 77kN(17310 lbf) Steel Wire Diameter 18 mm(0.71 inch) Steel Wire Length 50 m(164 feet) Capacity of Wireline Hoist Hoisting Speed (single wire) 164m/min (bare drum) Hoisting Force (single wire) 12 kN(2698 lbf) (bare drum) Steel Wire Diameter 6 mm(0.24 inch) Steel Wire Length 1500 m(4920 feet) Mast Mast Height 11 m(36 feet) Mast Adjusting Angle 0°_90° Drilling Angle 45°_90° Feeding Stroke 3800 mm(150 inch) Slippage Stroke 1500 mm(59 inch) Feed Pull 15000kg(33075 lb) Feed Thrust 7500kg(16538 lb) Rod Pull 3mor 6m(9.84feet or 19.68feet) Mud Pump Type Reciprocating Pump Triplex Plunger Model BW250 Stroke 100mm(3.9 inch) Output volume 250,145, 90, 52 L/min
(66, 38, 24, 14 US Gallons/min) Discharge pressure 2.5, 4.5, 6.0, 6.0 Mpa
(363, 653, 870, 870 psi) Foot Clamp Clamping Scope 55.5-117.5 mm(2.19-4.63 inch)
through hole 154mm(6.06 inch) Other Weight 13000 Kg(28665 lb) Dimensions (L × W ×H ) 5600×2240×2650mm
(220×88.2×104.3 inch) Transport Way Steel Crawler
