• Model NO.：XZ450
• Type：Crawler
• Engine Model：Cummins 6CTA8.3-C260
• Rated Power：194,2200 Kw,R,Min
• Max Thrust-Pull Force：480 Kn
• Thrust-Pull Speed：38 M,Min
• Torque：23500 N.M
• Max Spindle Speed：135 R,Min
• Max Flow Rate：450 L,Min
• Max Pressure：8 MPa
• Pipe：89*4.5 mm*M
• Max Backreamer Diameter：900mm
• Weight：13.3t
• Dimension：8800*2280*2610mm
• Lifting Weight：4 Ton
• Loading Capacity：4 T.M
• Max Inclination Angle：20
• Transport Package：Nude Package, Suitable for Shipment
• Specification：6500*2270*2340mm
• Trademark：Acntruck
• Origin：China
• HS Code：8430412900
• Production Capacity：3000 Sets,Month

Basic Info.

Model NO. XZ450 Type Crawler Engine Model Cummins 6CTA8.3-C260 Rated Power 194/2200 Kw/R/Min Max Thrust-Pull Force 480 Kn Thrust-Pull Speed 38 M/Min Torque 23500 N.M Max Spindle Speed 135 R/Min Max Flow Rate 450 L/Min Max Pressure 8 MPa Pipe 89*4.5 mm*M Max Backreamer Diameter 900mm Weight 13.3t Dimension 8800*2280*2610mm Lifting Weight 4 Ton Loading Capacity 4 T.M Max Inclination Angle 20 Transport Package Nude Package, Suitable for Shipment Specification 6500*2270*2340mm Trademark Acntruck Origin China HS Code 8430412900 Production Capacity 3000 Sets/Month

Product Description

Treching water directional drilling machine XZ450 pipe laying driller

1. Products parameter:

1.High-power engine system, strong power. It is adopted turbine engine which power is 153kW. The powerful engine is enough and insures there is enough power for drill in different working conditions.

2.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational.

3.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.

4.High-speed sliding and rotation systems, variable motor to achieve high and low power head sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction.

5. Support the diverse needs of customers, the machine can be increased with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices.

2. XZ450 HDD drills spec.

Project	Unit	Parameter
Engine	-
Type	(kW/r/min)	Cummins 6CTA8.3-C260
Rated power	(kN)	194/2200
Thrust-Pull
Max thrust-pull force	(kN)	480
thrust-pull speed	(m/min)	38
Rotation
Torque	(N·m)	23500
Max spindle speed	(r/min)	135
Mud pump
Max Flow rate	(L/min)	450
Max pressure	(MPa)	8
Pipe	(mm*)	φ89*4.5
Loader Crane
Lifting weight	(t)	2
Loading capacity	(t•m)	4
Max inclination angle	(°)	20
Max backreamer diameter	(mm)	φ900
Weight	(t)	13.3
Dimension	(mm)	8800*2280*2610
Remark	-	Optional:I.Cab;II.Air-condition;III.Full-automatic pipeloader;IV.Semi-automatic pipeloader;V.Mud antifreeze;VI.Mud Cleaning;VII.600L Mud Pump.

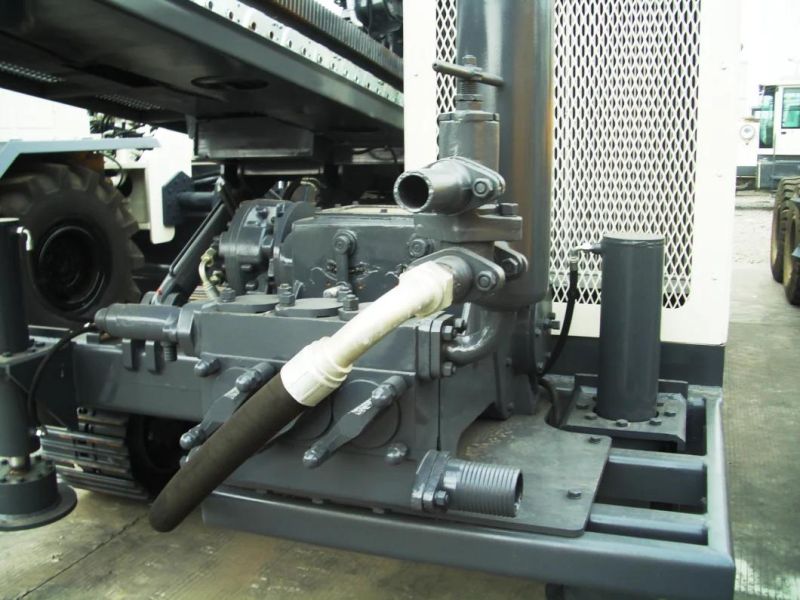

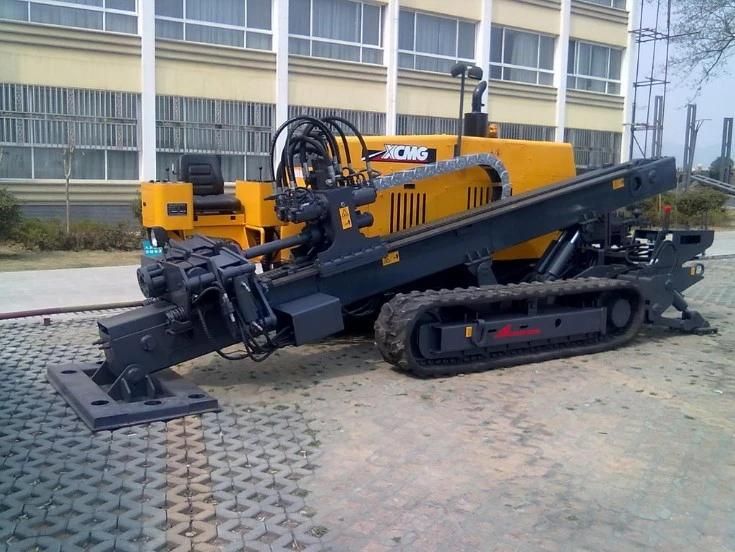

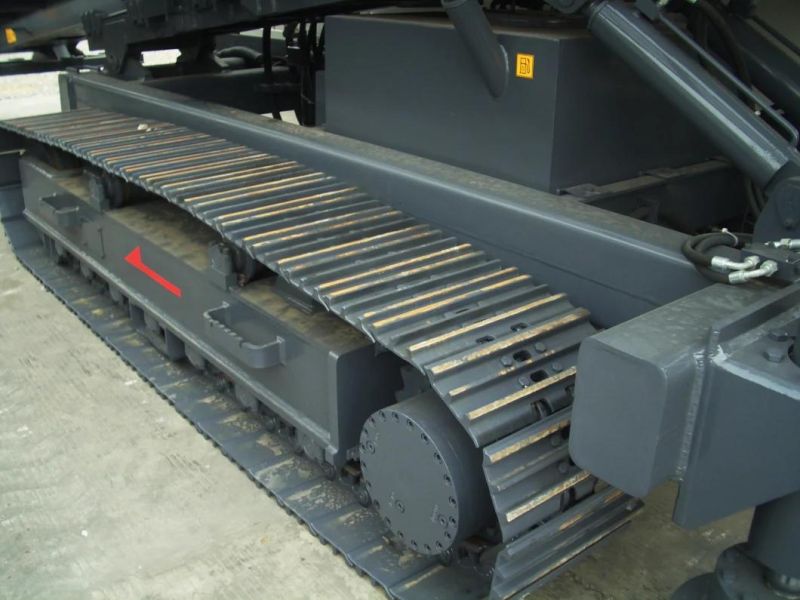

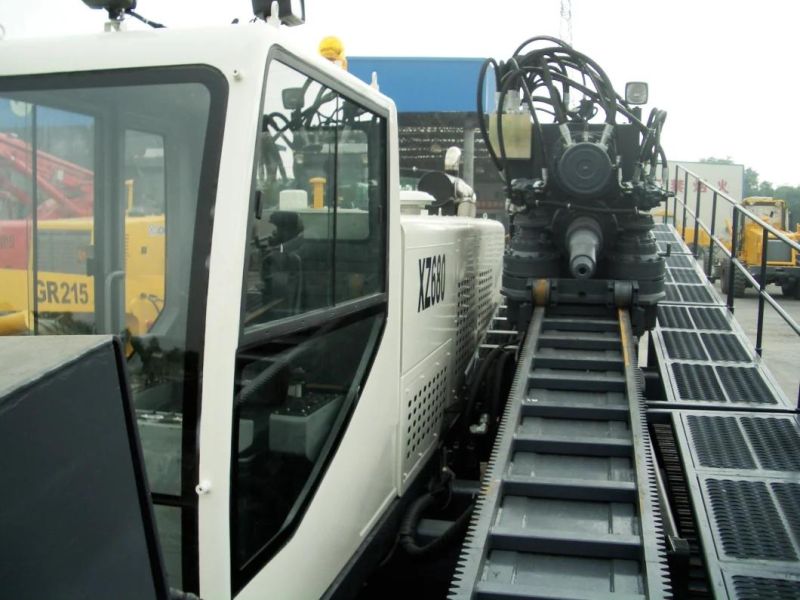

3. HDD drills machine pictures:
