Innovative Lower Price Truck Mounted Water Well Drilling Rig Price
Jining VOTE Machinery Technology Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：Hydraulic Motor
- Drill Hole Diameter：140-400mm
- Drill Hole Depth：180-800m
- Bit Type：DTH Drill,Diamond,Cone,Drag Bit
Base Info
- Model NO.：VTZJ-180,200X,200,300A,300,400,500,600,700,800
- Drilling Way：Rotary
- Type：Crawler
- Color：Customized
- About Customization 1：Can Be Supplied in Custom-Built Models in Various
- About Customization 2：Mounting Features to Suit All Special Requirements
- Transport Package：Bulk Package
- Specification：Multiple models optional
- Trademark：VOTE
- Origin：China-Shandong
- HS Code：8430419000
- Production Capacity：30,Month
Description
VTZJ-180 Weight 4.5T Air consumption 17-31m³/min Bore diameter 140-254mm Drill rod diameter Φ76 Φ89 Drilling depth 180m Drill rod length 1.5m 2.0m 3.0m Stroke 3.4m Elevating capacity 15T/15KN Travelling speed 2.5km/h Swing speed 45-65rpm Power 55KW Swing torque 3200-4600N.M Rated pressure 1.7-2.5mpa Dimensions 3800*1500*2200mm

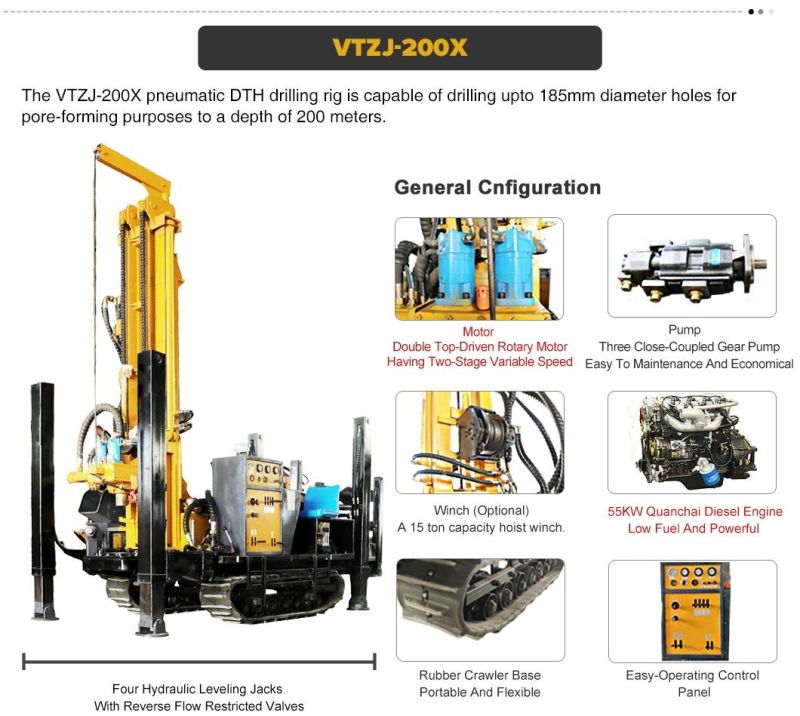

VTZJ200X Weight 4.7T Air consumption 17-31m³/min Bore diameter 140-254mm Drill rod diameter Φ76, Φ89 Drilling depth 200m Drill rod length 1.5m 2.0m 3.0m Stroke 3.3m Elevating capacity 10T Travelling speed 2.5km/h Swing speed 45-65rpm Power 65KW Swing torque 3200-4600N.M Rated pressure 1.7-2.5mpa Dimensions 4000*1700*2200mm

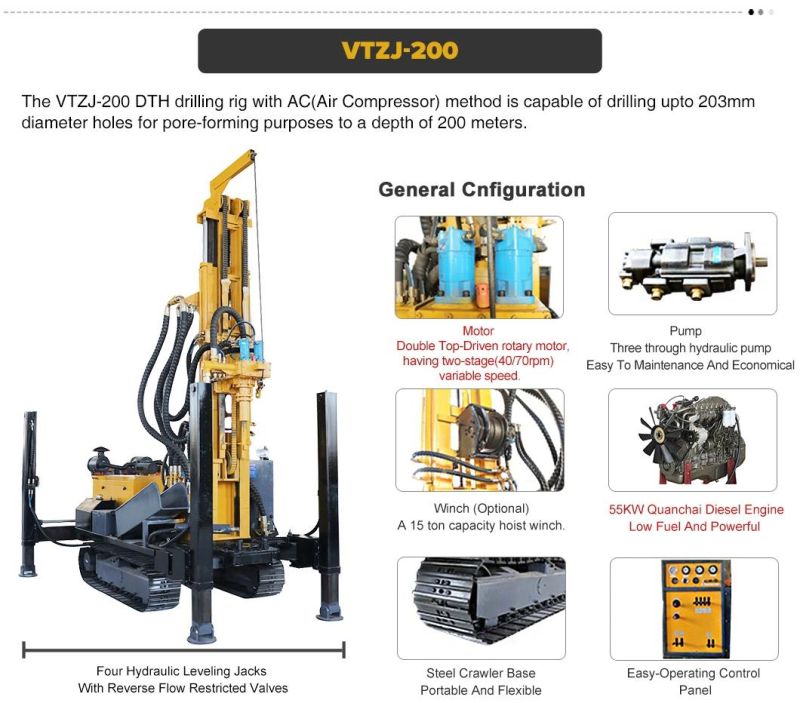

VTZJ-200 Weight 5.8T Air consumption 17-30m³/min Bore diameter 140-305mm Drill rod diameter Φ76, Φ89 Drilling depth 200m Drill rod length 1.5m 2.0m 3.0m Stroke 3.4m Elevating capacity 15T Travelling speed 2.5km/h Swing speed 45-70rpm Power 65-70KW Swing torque 3500-4800N.M Rated pressure 1.7-3.0mpa Dimensions 4000*1750*2450mm

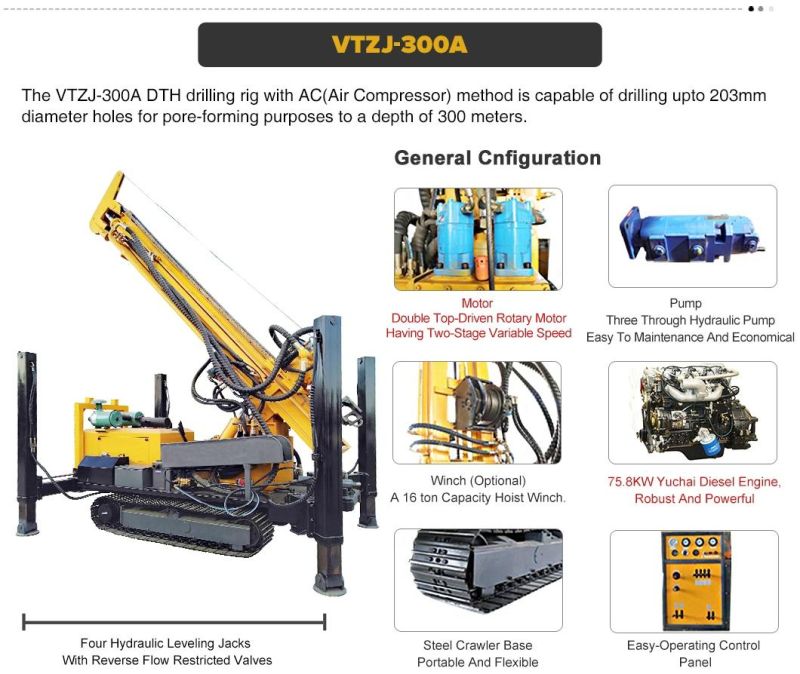

Main ParametersVTZJ-300A Weight 7T Air consumption 17-35m³/min Bore diameter 140-325mm Drill rod diameter Φ76, Φ89, Φ102 Drilling depth 300m Drill rod length 1.5m 2.0m 3.0m Stroke 3.4m Elevating capacity 16T Travelling speed 2.5km/h Swing speed 40-70rpm Power 75.8KW Swing torque 5700-7500N.M Rated pressure 1.7-3.0mpa Dimensions 4100*1950*2600mm

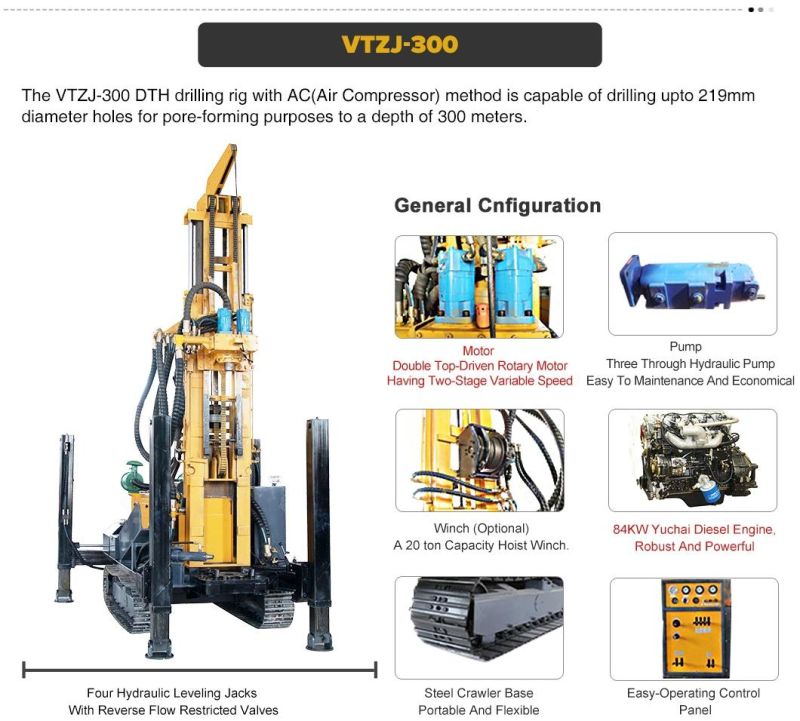

Main ParametersVTZJ-300 Weight 9T Air consumption 17-35m³/min Bore diameter 140-325mm Drill rod diameter Φ89, Φ102 Drilling depth 300m Drill rod length 1.5m 2.0m 3.0m 6m Stroke 6.6m Elevating capacity 20T Travelling speed 2.5km/h Swing speed 55-115rpm Power 84KW Swing torque 6200-8500N.M Rated pressure 1.7-3.3mpa Dimensions 5900*2000*2850mm
Main Parameters VTZJ-400 Weight 10T Air consumption 17-35m³/min Bore diameter 140-350mm Drill rod diameter Φ89, Φ102, Φ108 Drilling depth 400m Drill rod length 1.5m 2.0m 3.0m 6.0m Stroke 6.6m Elevating capacity 22T Travelling speed 2.5km/h Swing speed 45-115rpm Power 92KW Swing torque 6500-9000N.M Rated pressure 1.7-3.5mpa Dimensions 5900*2100*2850mm

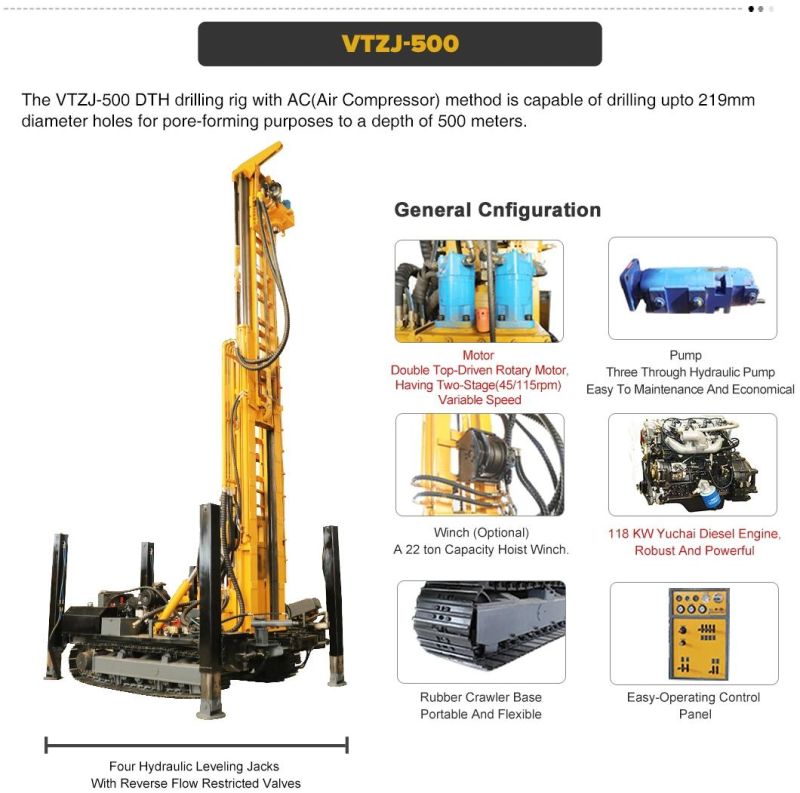

Main Parameters VTZJ-500 Weight 11T Air consumption 17-35m³/min Bore diameter 140-350mm Drill rod diameter Φ89, Φ102, Φ108 Drilling depth 500m Drill rod length 1.5m 2.0m 3.0m 6.0m Stroke 6.6m Elevating capacity 25T Travelling speed 2.5km/h Swing speed 45-115rpm Power 118KW Swing torque 7000-9500N.M Rated pressure 1.7-3.5mpa Dimensions 5900*2100*2850mm

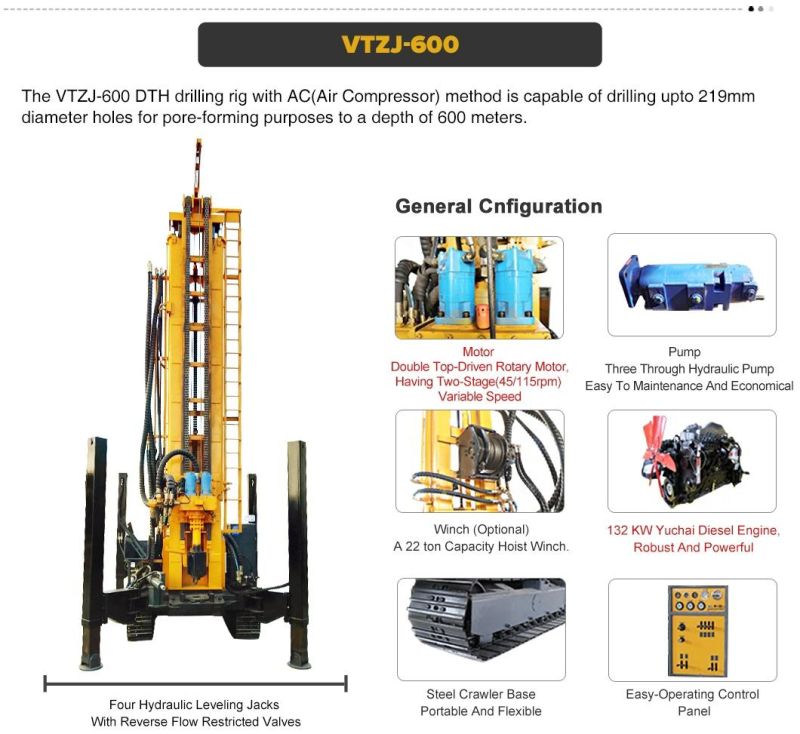

VTZJ-600 Weight 12T Air consumption 17-35m³/min Bore diameter 140-350mm Drill rod diameter Φ108 , Φ114, Φ127 Drilling depth 600m Drill rod length 1.5m 2.0m 3.0m 6.0m Stroke 6.6m Elevating capacity 28T Travelling speed 2.5km/h Swing speed 45-115rpm Power 132KW Swing torque 8500-11000N.M Rated pressure 1.7-3.5mpa Dimensions 6000*2200*2850mm Weight 13.5T Air consumption 17-42m³/min Bore diameter 140-400mm Drill rod diameter Φ108 , Φ114, Φ127 Drilling depth 800m Drill rod length 1.5m 2.0m 3.0m 6.0m Stroke 6.6m Elevating capacity 30T Travelling speed 2.5km/h Swing speed 55-120rpm Power 140 KW Swing torque 9000-13150N.M Rated pressure 1.7-3.5mpa Dimensions 6100*2200*2900mm
VTZJ200XVTZJ-200Main ParametersVTZJ-300A
Main ParametersVTZJ-300
Main Parameters VTZJ-400
Main Parameters VTZJ-500
VTZJ-600
