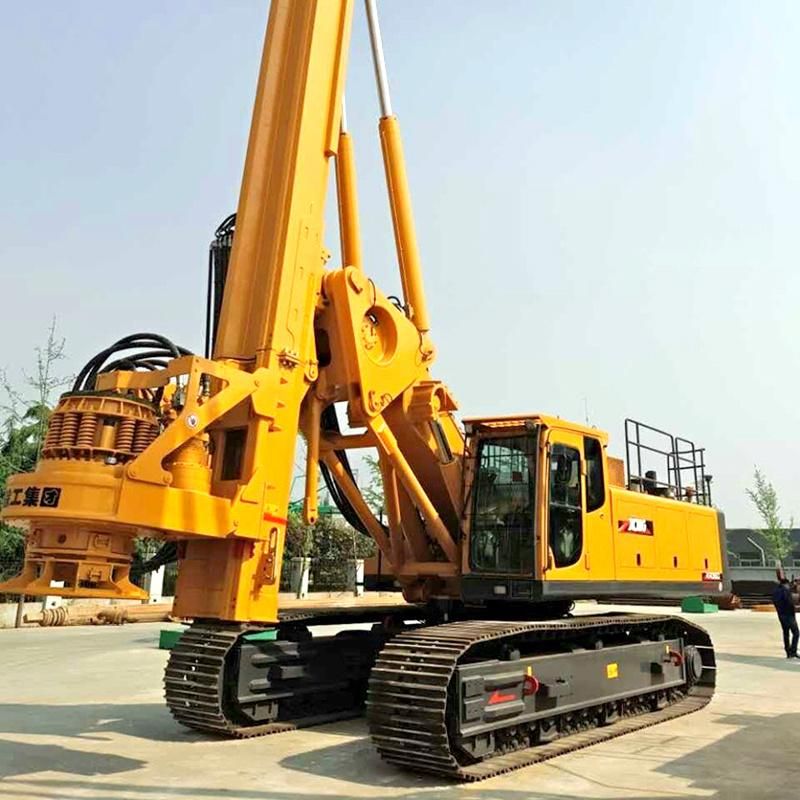

Strong Power Xr400d Rotary Dilling Rig
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：CE
- Condition：New
- Drill Hole Diameter：>300mm
- Drill Hole Depth：70-100m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：XR400D
- Type：Crawler
- Uncased：3000
- Max.Drilling Depth：110 M
- Engine Model：Cummins Qsx15-C500
- Engine Rated Power：373,2100 Kw
- Working Pressure：35 MPa
- Max. Output Torque：400 Kn.M
- Rotary Speed：5.5~20 R,Min
- Max.Pull-Down Piston Push：300 Kn
- Max.Pull-Down Piston Pull：400 Kn
- Max.Pull-Down Piston Stroke：6000 mm
- Max.Pulling Force：420 Kn
- Max. Single-Rope Speed：60 M,Min
- Diameter of The Steel Wire Rope：40 mm
- Max. Traveling Speed：1.3 Km,H
- Max.Grade Ability：35%
- Transport Package：Nude
- Specification：18025*3700*3500 mm
- Trademark：Acntruck
- Origin：China, Shanghai
- HS Code：8430691100
- Production Capacity：200 Units, Month
Description
Item
Unit
Parameter
Wall depth
m
70
Wall thickness
mm
300-1200
Max. hoisting power
kN
400
Max. hoisting/lowering speed
m/min
38
Grab opening time
sec
6
Grab closing time
sec
7
Hydraulic system pressure
Mpa
32
Engine
Model
CUMMIN QSL9-C325
Rated power
kW/rpm
242/2100
Chassis
Max. travel speed
KM/h
1.5
Max. gradeability
%
35
Min. ground clearance
mm
468
Track width
mm
800
Track gauge
mm
3500~4400
Dimension
Working condition
mm
10370×4400×17205
Transportation condition
mm
12950×3500×3395
Overall operating weight (with 1200 grab)
t
77
