Mining Tunneling Portable Hand Held Manual Pneumatic Jumbolter Roof Bolter

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Certification：CE, TUV, BV
  • Condition：New
  • Motor：Pneumatic
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：<100m
  • Bit Type：Rock Anchor Bolt

Base Info

  • Model NO.：pneumatic roof bolter
  • Drilling Way：Rotary
  • Working Air Pressure：0.4-0.63 MPa
  • Free Running Speed：600 Rpm
  • Static Torque：200nm
  • Working Air Pressuretmpat0.4-0.63 Free：0.5MPa
  • Rated Rotate Speed：190rpm
  • Rated Torque：120nm
  • Power Output：2.1-2.8kw
  • Air Consumption：3.5m3,Min
  • Maximum Push Force：8.2kn
  • Flushing Water Pressure：0.6-1.2MPa
  • Transport Package：Carton Box, Plastic Bagsor as Your Payment
  • Specification：CE, SGS
  • Trademark：China Coal
  • Origin：China
  • HS Code：8530800000
  • Production Capacity：1000 Sets Per Month

Description

Working air pressureMPa0.4-0.63Free running speedr/min>600Static torqueN.m>200Rated air pressureMPa0.5Rated rotate speedr/min190Rated torqueN.m>120Power outputKW2.1-2.8Air consumptionM3/min>3.5Maximum Push forcekN8.2Flushing water pressureMPa0.6-1.2NoisedB(A)<95Hexagonal shape shank tailmm19Weightkg46-51-53With three telescopic legsModelMQT-120/2.5AMQT-120/2.5BMZQT-120/2.5CContraction height102612761426Extension height247530573657

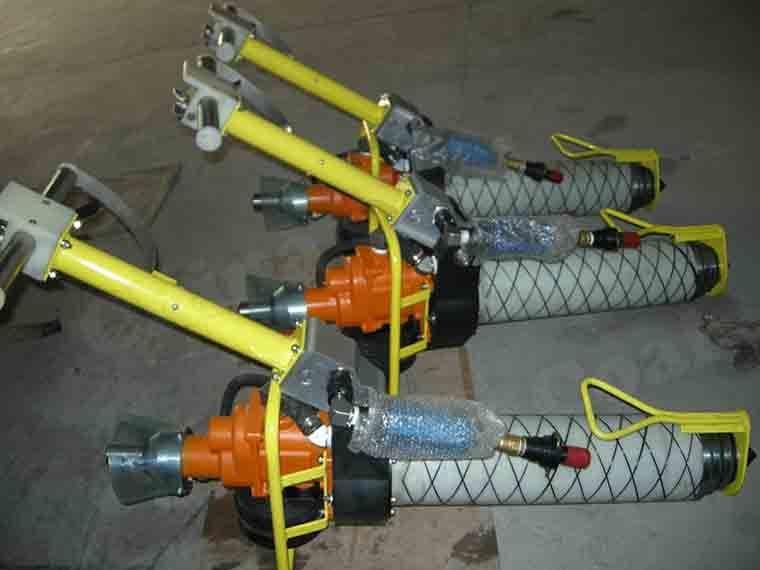

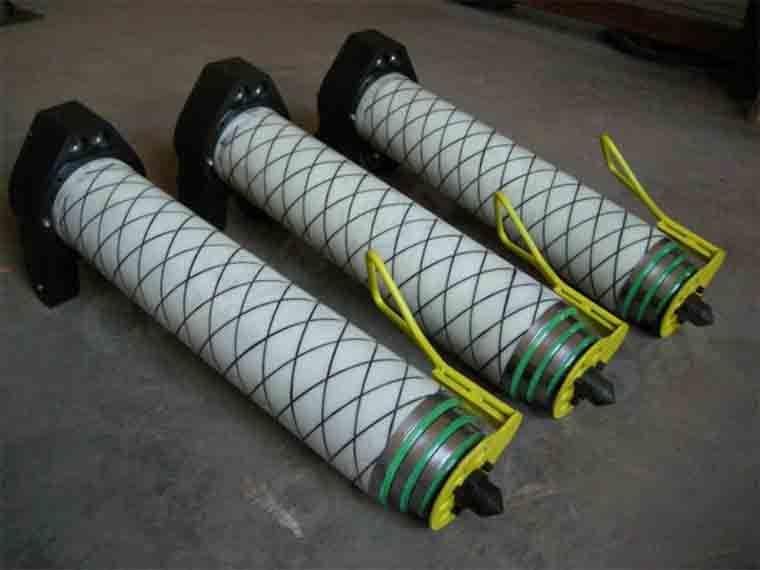

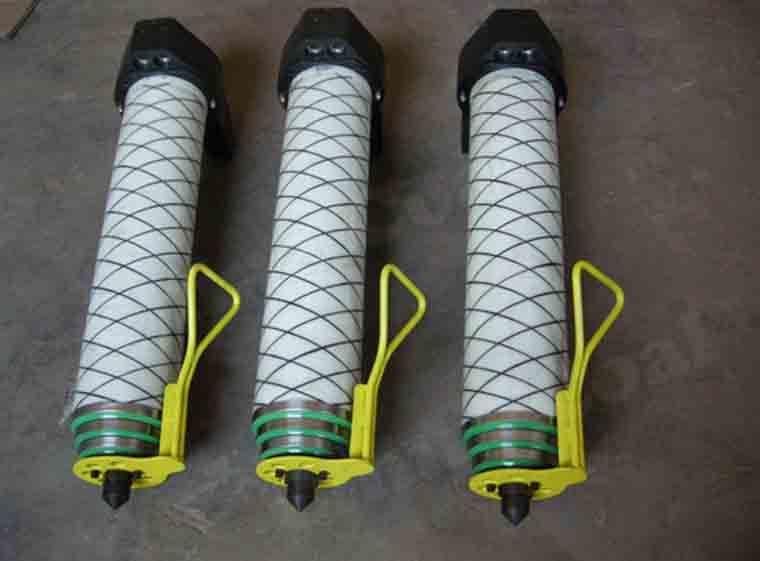

Pictures of Mining Tunneling Portable Hand Held Manual Pneumatic Jumbolter Roof Bolter Mining Tunneling Portable Hand Held Manual Pneumatic Jumbolter Roof BolterMining Tunneling Portable Hand Held Manual Pneumatic Jumbolter Roof BolterMining Tunneling Portable Hand Held Manual Pneumatic Jumbolter Roof Bolter
